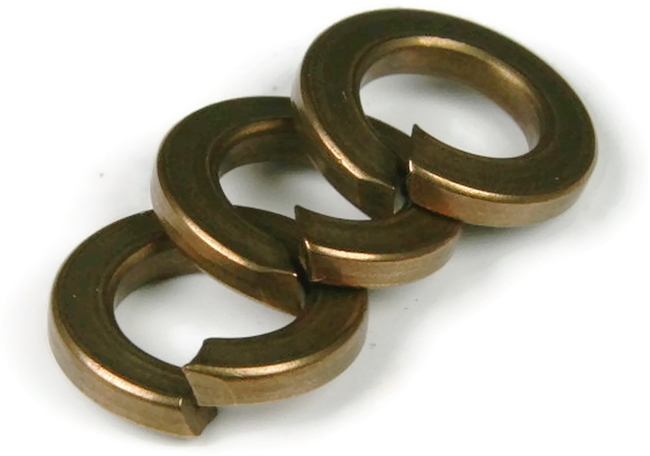

Split Ring Lock Washers Silicon Bronze

Silicon Bronze Split Ring Lock Washers

Medium Profile Split Ring Lock Washers


  • Used to prevent fasteners from loosening unintentionally
  • Split and bent to create a spring-like effect
  • Add extra pressure to fastener assembly resulting in higher resistance to rotation
  • Silicon bronze is made of copper, silicon and various other alloys
  • Suitable for marine, corrosive and high heat environments
  • Commonly used for:
    • Plumbing
    • Electrical
    • Tattoo machines
    • Power Plants
  • Actual measurements may vary slightly +/- depending on production run

Note: All Silicon Bronze products will develop a patina based on the environment and time. These fasteners are not coated with any sealants to prevent a patina from forming. Depending on when the product was manufactured, you may receive a product that has started to develop a patina.


Silicon Bronze Lock Washer Specifications
Washer Sizes Inner Diameter (ID) Outer Diameter (OD) Washer Thickness
#4 0.114" 0.209" 0.025"
#6 0.141" 0.293" 0.040"
#8 0.167" 0.293" 0.040"
#10 0.193" 0.334" 0.047"
#12 0.220" 0.377" 0.056"
1/4" 0.252" 0.487" 0.062"
5/16" 0.314" 0.583" 0.078"
3/8" 0.377" 0.680" 0.094"
1/2" 0.502" 0.869" 0.125"
5/8" 0.628" 1.072" 0.156"
3/4" 0.753" 1.264" 0.188"
1" 1.003" 1.647" 0.250"
Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Split Ring Lock Washers Silicon Bronze - #4 (.114 x .209 x .025)
SKU #1102-129-0002
Split Ring Lock Washers Silicon Bronze - #4 (.114 x .209 x .025)
SKU #1102-129-0002
1
NA
25
$3.25 (0.13/ea)
100
$8.00 (0.08/ea)
1000
$60.00 (0.06/ea)
Subtotal: $0.00 /
Split Ring Lock Washers Silicon Bronze - #6 (.141 x .293 x .040)
SKU #1102-129-0012
Split Ring Lock Washers Silicon Bronze - #6 (.141 x .293 x .040)
SKU #1102-129-0012
1
NA
25
$3.75 (0.15/ea)
100
$9.00 (0.09/ea)
1000
$70.00 (0.07/ea)
Subtotal: $0.00 /
Split Ring Lock Washers Silicon Bronze - #8 (.167 x .293 x .040)
SKU #1102-129-0022
Split Ring Lock Washers Silicon Bronze - #8 (.167 x .293 x .040)
SKU #1102-129-0022
1
NA
25
$3.75 (0.15/ea)
100
$9.00 (0.09/ea)
1000
$70.00 (0.07/ea)
Subtotal: $0.00 /
Split Ring Lock Washers Silicon Bronze - #10 (.193 x .334 x .047)
SKU #1102-129-0032
Split Ring Lock Washers Silicon Bronze - #10 (.193 x .334 x .047)
SKU #1102-129-0032
1
NA
25
$3.75 (0.15/ea)
100
$9.00 (0.09/ea)
1000
$70.00 (0.07/ea)
Subtotal: $0.00 /
Split Ring Lock Washers Silicon Bronze - #12 (.220 x .377 x .056)
SKU #1102-129-0042
Split Ring Lock Washers Silicon Bronze - #12 (.220 x .377 x .056)
SKU #1102-129-0042
1
NA
25
$4.00 (0.16/ea)
100
$10.00 (0.1/ea)
1000
$80.00 (0.08/ea)
Subtotal: $0.00 /
Split Ring Lock Washers Silicon Bronze - 1/4 (.252 x .487 x .062)
SKU #1102-129-0052
Split Ring Lock Washers Silicon Bronze - 1/4 (.252 x .487 x .062)
SKU #1102-129-0052
1
NA
25
$5.00 (0.2/ea)
100
$15.00 (0.15/ea)
1000
$130.00 (0.13/ea)
Subtotal: $0.00 /
Split Ring Lock Washers Silicon Bronze - 5/16 (.314 x .583 x .078)
SKU #1102-129-0062
Split Ring Lock Washers Silicon Bronze - 5/16 (.314 x .583 x .078)
SKU #1102-129-0062
1
NA
25
$7.25 (0.29/ea)
100
$22.00 (0.22/ea)
1000
$200.00 (0.2/ea)
Subtotal: $0.00 /
Split Ring Lock Washers Silicon Bronze - 3/8 (.377 x .680 x .094)
SKU #1102-129-0072
Split Ring Lock Washers Silicon Bronze - 3/8 (.377 x .680 x .094)
SKU #1102-129-0072
1
NA
25
$11.00 (0.44/ea)
100
$36.00 (0.36/ea)
1000
$340.00 (0.34/ea)
Subtotal: $0.00 /
Split Ring Lock Washers Silicon Bronze - 1/2 (.502 x .869 x .125)
SKU #1102-129-0082
Split Ring Lock Washers Silicon Bronze - 1/2 (.502 x .869 x .125)
SKU #1102-129-0082
1
$0.88 (0.88/ea)
25
$21.25 (0.85/ea)
100
$73.00 (0.73/ea)
1000
$700.00 (0.7/ea)
Subtotal: $0.00 /
Split Ring Lock Washers Silicon Bronze - 5/8 (.628 x 1.072 x .156)
SKU #1102-129-0092
Split Ring Lock Washers Silicon Bronze - 5/8 (.628 x 1.072 x .156)
SKU #1102-129-0092
1
$1.07 (1.07/ea)
25
$25.75 (1.03/ea)
100
$89.00 (0.89/ea)
1000
$880.00 (0.88/ea)
Subtotal: $0.00 /
Split Ring Lock Washers Silicon Bronze - 3/4 (.753 x 1.264 x .188)
SKU #1102-129-0102
Split Ring Lock Washers Silicon Bronze - 3/4 (.753 x 1.264 x .188)
SKU #1102-129-0102
1
$1.99 (1.99/ea)
25
$49.00 (1.96/ea)
100
$175.00 (1.75/ea)
1000
$1,740.00 (1.74/ea)
Subtotal: $0.00 /
Split Ring Lock Washers Silicon Bronze - 1 (1.003 x 1.647 x .25)
SKU #1102-129-0112
Split Ring Lock Washers Silicon Bronze - 1 (1.003 x 1.647 x .25)
SKU #1102-129-0112
1
$7.11 (7.11/ea)
25
$170.00 (6.8/ea)
100
$653.00 (6.53/ea)
1000
$6,500.00 (6.5/ea)
Subtotal: $0.00 /

Product Specifications
Color
Bronze
Color May Vary
Color and sheen may vary
Corrosion Resistant
Yes
Marine Grade
Yes
Material
Silicon Bronze
Product Type
Split Ring Lock Washer
System of Measurement (Unit)
Inch
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
