Split Ring Lock Washers Grade 8 Yellow Zinc - Select Size
Split Ring Lock Washers Grade 8 Yellow Zinc



Alternative Views:

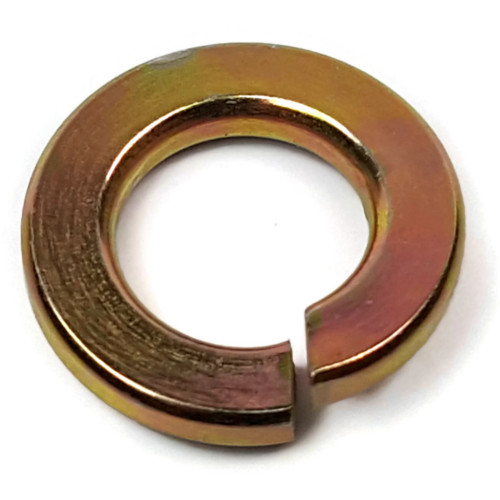

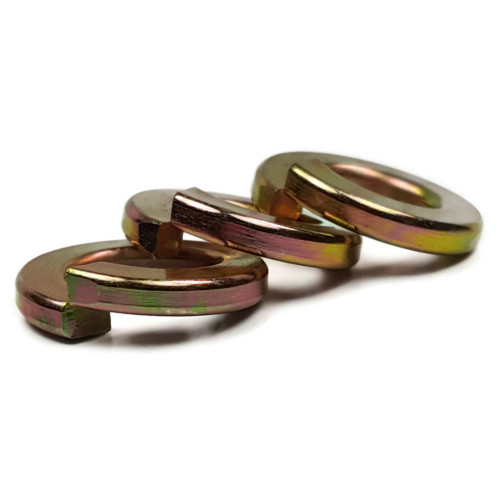

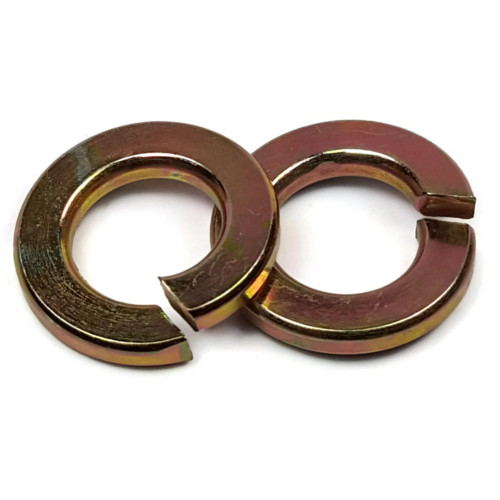

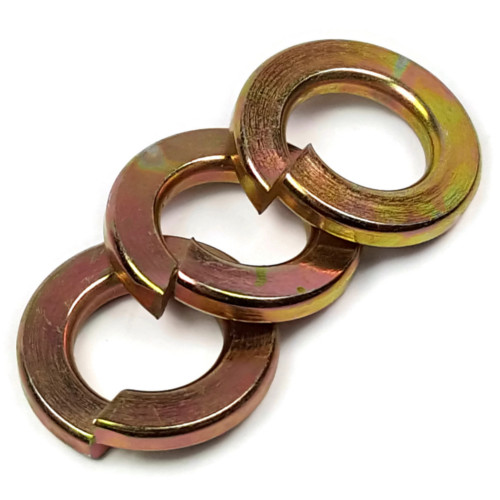

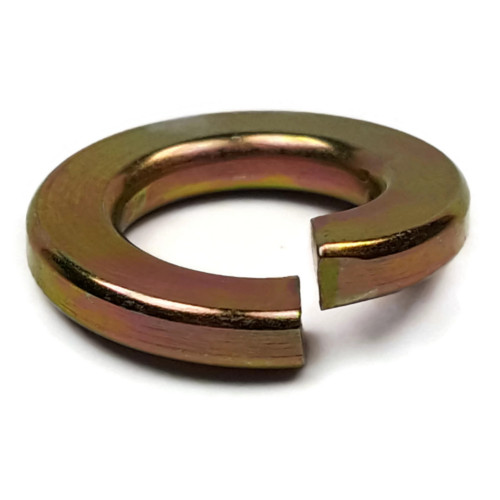

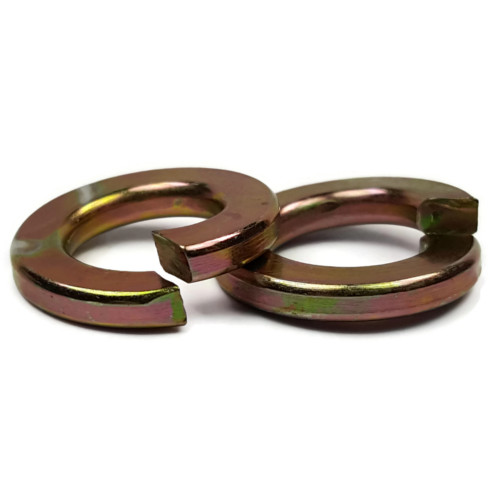

Grade 8 Yellow Zinc Lock Washers

Medium Profile Split Ring Lock Washers

Split Ring Lock Washers (also referred to as "Spring Lock Washers", or most simply "Lock Washers") are circular washers split at a certain point to create a helical shape. This shape applies force between the head of a bolt or screw and the installation surface. This force creates a resistance to rotation and prevents nuts, bolts and screws from vibrating loose.

Lock Washers in this selection are made from through hardened Grade 8 Yellow Zinc.

REACH and RoHS Compliant

Washer Thickness may vary slightly +/- depending on production run within IFI Tolerances

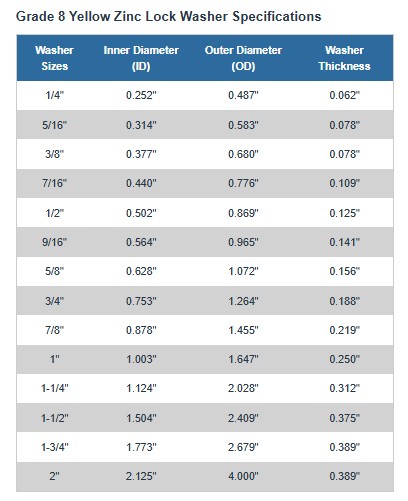

Washer Sizes Inner Diameter (ID) Outer Diameter (OD) Washer Thickness
1/4" 0.252" 0.487" 0.062"
5/16" 0.314" 0.583" 0.078"
3/8" 0.377" 0.680" 0.078"
7/16" 0.440" 0.776" 0.109"
1/2" 0.502" 0.869" 0.125"
9/16" 0.564" 0.965" 0.141"
5/8" 0.628" 1.072" 0.156"
3/4" 0.753" 1.264" 0.188"
7/8" 0.878" 1.455" 0.219"
1" 1.003" 1.647" 0.250"
1-1/4" 1.124" 2.028" 0.312"
1-1/2" 1.504" 2.409" 0.375"
1-3/4" 1.773" 2.679" 0.389"
2" 2.125" 4.000" 0.389"


Item# Item Name Our Price Qty Add
1090-066-0002 Split Ring Lock Washer Grade 8 - 1/4 (.252 ID x .487 OD x .062 THK) - Qty-1
$0.15
1090-066-0004 Split Ring Lock Washer Grade 8 - 1/4 (.252 ID x .487 OD x .062 THK) - Qty-25
$0.36
1090-066-0006 Split Ring Lock Washer Grade 8 - 1/4 (.252 ID x .487 OD x .062 THK) - Qty-100
$1.29
1090-066-0008 Split Ring Lock Washer Grade 8 - 1/4 (.252 ID x .487 OD x .062 THK) - Qty-250
$3.07
1090-066-0010 Split Ring Lock Washer Grade 8 - 1/4 (.252 ID x .487 OD x .062 THK) - Qty-1000
$11.60
1090-066-0012 Split Ring Lock Washer Grade 8 - 5/16 (.314 ID x .583 OD x .078 THK) - Qty-1
$0.15
1090-066-0014 Split Ring Lock Washer Grade 8 - 5/16 (.314 ID x .583 OD x .078 THK) - Qty-25
$0.56
1090-066-0016 Split Ring Lock Washer Grade 8 - 5/16 (.314 ID x .583 OD x .078 THK) - Qty-100
$2.02
1090-066-0018 Split Ring Lock Washer Grade 8 - 5/16 (.314 ID x .583 OD x .078 THK) - Qty-250
$4.80
1090-066-0020 Split Ring Lock Washer Grade 8 - 5/16 (.314 ID x .583 OD x .078 THK) - Qty-1000
$18.17
1090-066-0022 Split Ring Lock Washer Grade 8 - 3/8 (.377 ID x .680 OD x .078 THK) - Qty-1
$0.15
1090-066-0024 Split Ring Lock Washer Grade 8 - 3/8 (.377 ID x .680 OD x .078 THK) - Qty-25
$0.88
1090-066-0026 Split Ring Lock Washer Grade 8 - 3/8 (.377 ID x .680 OD x .078 THK) - Qty-100
$3.22
1090-066-0028 Split Ring Lock Washer Grade 8 - 3/8 (.377 ID x .680 OD x .078 THK) - Qty-250
$7.64
1090-066-0030 Split Ring Lock Washer Grade 8 - 3/8 (.377 ID x .680 OD x .078 THK) - Qty-1000
$28.97
1090-066-0032 Split Ring Lock Washer Grade 8 - 7/16 (.440 ID x .776 OD x .109 THK) - Qty-1
$0.15
1090-066-0034 Split Ring Lock Washer Grade 8 - 7/16 (.440 ID x .776 OD x .109 THK) - Qty-25
$1.24
1090-066-0036 Split Ring Lock Washer Grade 8 - 7/16 (.440 ID x .776 OD x .109 THK) - Qty-100
$4.49
1090-066-0038 Split Ring Lock Washer Grade 8 - 7/16 (.440 ID x .776 OD x .109 THK) - Qty-250
$10.68
1090-066-0040 Split Ring Lock Washer Grade 8 - 7/16 (.440 ID x .776 OD x .109 THK) - Qty-1000
$40.47
1090-066-0042 Split Ring Lock Washer Grade 8 - 1/2 (.502 ID x .869 OD x .125 THK) - Qty-1
$0.15
1090-066-0044 Split Ring Lock Washer Grade 8 - 1/2 (.502 ID x .869 OD x .125 THK) - Qty-25
$1.70
1090-066-0046 Split Ring Lock Washer Grade 8 - 1/2 (.502 ID x .869 OD x .125 THK) - Qty-100
$6.17
1090-066-0048 Split Ring Lock Washer Grade 8 - 1/2 (.502 ID x .869 OD x .125 THK) - Qty-250
$14.67
1090-066-0050 Split Ring Lock Washer Grade 8 - 1/2 (.502 ID x .869 OD x .125 THK) - Qty-1000
$55.59
1090-066-0052 Split Ring Lock Washer Grade 8 - 9/16 (.564 ID x .965 OD x .141 THK) - Qty-1
$0.15
1090-066-0054 Split Ring Lock Washer Grade 8 - 9/16 (.564 ID x .965 OD x .141 THK) - Qty-25
$2.44
1090-066-0056 Split Ring Lock Washer Grade 8 - 9/16 (.564 ID x .965 OD x .141 THK) - Qty-100
$8.87
1090-066-0058 Split Ring Lock Washer Grade 8 - 9/16 (.564 ID x .965 OD x .141 THK) - Qty-250
$21.06
1090-066-0060 Split Ring Lock Washer Grade 8 - 9/16 (.564 ID x .965 OD x .141 THK) - Qty-1000
$79.83
1090-066-0062 Split Ring Lock Washer Grade 8 - 5/8 (.628 ID x 1.072 OD x .156 THK) - Qty-1
$0.15
1090-066-0064 Split Ring Lock Washer Grade 8 - 5/8 (.628 ID x 1.072 OD x .156 THK) - Qty-25
$3.41
1090-066-0066 Split Ring Lock Washer Grade 8 - 5/8 (.628 ID x 1.072 OD x .156 THK) - Qty-100
$12.40
1090-066-0068 Split Ring Lock Washer Grade 8 - 5/8 (.628 ID x 1.072 OD x .156 THK) - Qty-250
$29.45
1090-066-0070 Split Ring Lock Washer Grade 8 - 5/8 (.628 ID x 1.072 OD x .156 THK) - Qty-1000
$111.63
1090-066-0072 Split Ring Lock Washer Grade 8 - 3/4 (.753 ID x 1.264 OD x .188 THK) - Qty-1
$0.24
1090-066-0074 Split Ring Lock Washer Grade 8 - 3/4 (.753 ID x 1.264 OD x .188 THK) - Qty-25
$5.64
1090-066-0076 Split Ring Lock Washer Grade 8 - 3/4 (.753 ID x 1.264 OD x .188 THK) - Qty-100
$20.51
1090-066-0078 Split Ring Lock Washer Grade 8 - 3/4 (.753 ID x 1.264 OD x .188 THK) - Qty-250
$51.84
1090-066-0080 Split Ring Lock Washer Grade 8 - 3/4 (.753 ID x 1.264 OD x .188 THK) - Qty-1000
$184.52
1090-066-0082 Split Ring Lock Washer Grade 8 - 7/8 (.878 ID x 1.455 OD x .219 THK) - Qty-1
$0.38
1090-066-0084 Split Ring Lock Washer Grade 8 - 7/8 (.878 ID x 1.455 OD x .219 THK) - Qty-25
$8.58
1090-066-0086 Split Ring Lock Washer Grade 8 - 7/8 (.878 ID x 1.455 OD x .219 THK) - Qty-100
$31.21
1090-066-0088 Split Ring Lock Washer Grade 8 - 7/8 (.878 ID x 1.455 OD x .219 THK) - Qty-250
$74.12
1090-066-0090 Split Ring Lock Washer Grade 8 - 7/8 (.878 ID x 1.455 OD x .219 THK) - Qty-1000
$280.88
1090-066-0092 Split Ring Lock Washer Grade 8 - 1 (1.003 ID x 1.647 OD x .250 THK) - Qty-1
$0.50
1090-066-0094 Split Ring Lock Washer Grade 8 - 1 (1.003 ID x 1.647 OD x .250 THK) - Qty-25
$11.55
1090-066-0096 Split Ring Lock Washer Grade 8 - 1 (1.003 ID x 1.647 OD x .250 THK) - Qty-100
$42.00
1090-066-0098 Split Ring Lock Washer Grade 8 - 1 (1.003 ID x 1.647 OD x .250 THK) - Qty-250
$99.75
1090-066-0100 Split Ring Lock Washer Grade 8 - 1 (1.003 ID x 1.647 OD x .250 THK) - Qty-1000
$378.00
1090-066-0112 Split Ring Lock Washer Grade 8 - 1-1/4 (1.124 ID x 2.028 OD x .312 THK) - Qty-1
$1.06
1090-066-0114 Split Ring Lock Washer Grade 8 - 1-1/4 (1.124 ID x 2.028 OD x .312 THK)-Qty-25
$24.21
1090-066-0116 Split Ring Lock Washer Grade 8 - 1-1/4(1.124ID x 2.028OD x .312THK)-Qty-100
$88.03
1090-066-0118 Split Ring Lock Washer Grade 8 - 1-1/4(1.124ID x 2.028OD x .312THK)-Qty-250
$209.09
1090-066-0120 Split Ring Lock Washer Grade 8 - 1-1/4(1.124ID x2.028OD x.312THK)-Qty-1000
$792.31
1090-066-0122 Split Ring Lock Washer Grade 8 - 1-1/2(1.504ID x2.409OD x.375THK)-Qty-1
$1.79
1090-066-0124 Split Ring Lock Washer Grade 8 - 1-1/2(1.504ID x2.409OD x.375THK)-Qty-25
$40.82
1090-066-0126 Split Ring Lock Washer Grade 8 - 1-1/2(1.504ID x2.409OD x.375THK)-Qty-100
$148.46
1090-066-0128 Split Ring Lock Washer Grade 8 - 1-1/2(1.504ID x2.409OD x.375THK)-Qty-250
$352.60
1090-066-0130 Split Ring Lock Washer Grade 8 - 1-1/2(1.504ID x2.409OD x.375THK)-Qty-1000
$1,336.16
1090-066-0132 Split Ring Lock Washer Grade 8 - 1-3/4(1.774ID x2.679OD x.389THK)-Qty-1
$2.30
1090-066-0134 Split Ring Lock Washer Grade 8 - 1-3/4(1.774ID x2.679OD x.389THK)-Qty-25
$52.79
1090-066-0136 Split Ring Lock Washer Grade 8 - 1-3/4(1.774ID x2.679OD x.389THK)-Qty-100
$191.97
1090-066-0138 Split Ring Lock Washer Grade 8 - 1-3/4(1.773ID x2.679OD x.389THK)-Qty-250
$455.94
1090-066-0140 Split Ring Lock Washer Grade 8 - 1-3/4(1.773ID x2.679OD x.389THK)-Qty-1000
$1,727.76
1090-066-0142 Split Ring Lock Washer Grade 8 - 2(2.125ID x4.00OD x.389THK)-Qty-1
$3.17
1090-066-0144 Split Ring Lock Washer Grade 8 - 2(2.125ID x4.00OD x.389THK)-Qty-25
$72.64
1090-066-0146 Split Ring Lock Washer Grade 8 - 2(2.125ID x4.00OD x.389THK)-Qty-100
$264.16
1090-066-0148 Split Ring Lock Washer Grade 8 - 2(2.125ID x4.00OD x.389THK)-Qty-250
$627.36
1090-066-0150 Split Ring Lock Washer Grade 8 - 2(2.125ID x4.00OD x.389THK)-Qty-1000
$2,377.39
