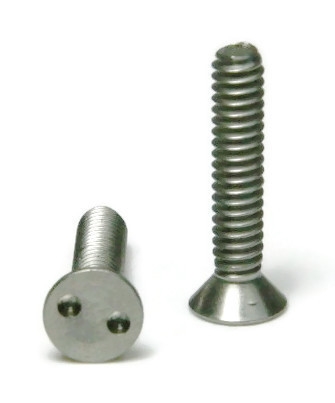

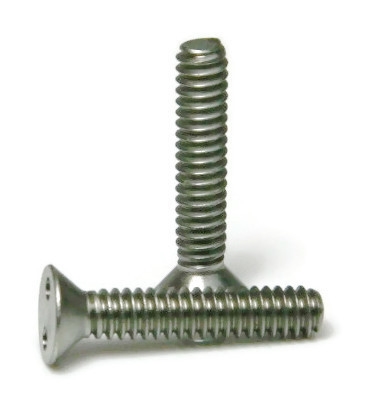

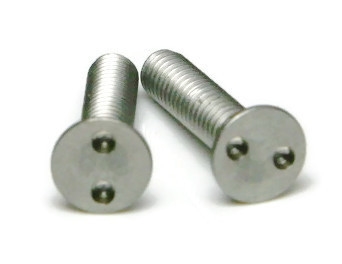

Tamper Proof Machine Screws, Spanner Flat Head, Stainless Steel 18-8, #8-32 x 3/8"

Diameter - Thread Pitch: #8-32

Spanner (snake eye) drive style is uncommon creating a more secure fastener assembly
A machine screw is commonly identified by its small size
Commonly used in bathroom stalls or on public art displays
Rust and corrosion resistant
Suitable for external environments where fresh water is present
Scratching or burring the metal will not create surface rust as the metal itself is corrosion resistant not just a coating

#8-32 Spanner flat head security machine screws are made of 18-8 stainless steel.

See More See Less

Play video

Product number: 6200-006-0012

Print this page

Specifications

Center to Center: Ref. 0.156
Color: Silver
Condition: New
Corrosion Resistant: Yes
Diameter: #8
Drive Style: Spanner
Head Type: Flat Head
Tamper Proof: Yes
Thread Direction: Right Hand
Thread Type: Coarse
Fit: 2A
Grade: 18-8
Head Diameter: Max 0.332 - Min 0.292
Head Style: Flat
Length: 3/8"
Material: Stainless Steel
Overall Head Height: Max 0.100 - Min 0.084
Part Number: 720572108828
Product Type: Tamper Proof Machine Screws
Size System: US
Size Type: Regular
Spanner Drive: #8
System of Measurement: Inch
Thread Diameter: (#8) Max 0.1631 - Min 0.1571
Thread Direction: Right Hand
Thread Pitch: 32 Per Inch
Thread Size: #8-32
Thread Standard: UNC
Thread Type: Coarse
Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Weight: 1 lb

Flat Washers, Stainless Steel 304, #8 (.174 ID x .375 OD x .031 Thick)

SKU: 1000-105112

Volume Pricing*

$0.07

($0.07/ea)

100

$3.00

($0.03/ea)

1000

$20.00

($0.02/ea)

$0.00

Lock Washers, Split Ring, Stainless Steel 304, #8 (.167 ID x .293 OD x .040 Thick)

SKU: 108072

Volume Pricing*

$0.07

($0.07/ea)

100

$3.00

($0.03/ea)

1000

$20.00

($0.02/ea)

$0.00

Hex Machine Nuts, Stainless Steel 304, #8-32 (11/32 Flats x 1/8 Thick)

SKU: 125072

Volume Pricing*

$0.07

($0.07/ea)

100

$4.00

($0.04/ea)

1000

$30.00

($0.03/ea)

$0.00

Nylon Lock Nuts, Stainless Steel 304, #8-32 (.345 Flats x .239 Height)

SKU: 128042

Volume Pricing*

$0.09

($0.09/ea)

100

$7.00

($0.07/ea)

1000

$60.00

($0.06/ea)

$0.00

Tamper Proof Insert Bits, Spanner Snake Eye, #8

SKU: 10110-0002-0022

Volume Pricing*

$1.89

($1.89/ea)

100

$157.00

($1.57/ea)

1000

$1,530.00

($1.53/ea)

$0.00

MRO Solution 2400, Marine Grade Anti-Seize Lubricant, 8 oz.

SKU: 1050-106

Volume Pricing*

$20.03 ea.

$0.00

Select Size/SKU & Quantity

9 Available Sizes

SIZE/SKU	Review Volume Pricing*	Enter Any Qty
#8-32 x 1/4" 6200-006-0002	1 $0.80 ($0.80/ea) 100 $47.00 ($0.47/ea) 1000 $390.00 ($0.39/ea)	Quantity for Tamper Proof Machine Screws, Spanner Flat Head, Stainless Steel 18-8, #8-32 x 1/4" $0.00
#8-32 x 3/8" 6200-006-0012	1 $0.66 ($0.66/ea) 100 $39.00 ($0.39/ea) 1000 $320.00 ($0.32/ea)	Quantity for Tamper Proof Machine Screws, Spanner Flat Head, Stainless Steel 18-8, #8-32 x 3/8" $0.00
#8-32 x 1/2" 6200-006-0022	1 $0.69 ($0.69/ea) 100 $40.00 ($0.40/ea) 1000 $330.00 ($0.33/ea)	Quantity for Tamper Proof Machine Screws, Spanner Flat Head, Stainless Steel 18-8, #8-32 x 1/2" $0.00
#8-32 x 5/8" 6200-006-0032	1 $0.72 ($0.72/ea) 100 $42.00 ($0.42/ea) 1000 $340.00 ($0.34/ea)	Quantity for Tamper Proof Machine Screws, Spanner Flat Head, Stainless Steel 18-8, #8-32 x 5/8" $0.00
#8-32 x 3/4" 6200-006-0042	1 $0.76 ($0.76/ea) 100 $44.00 ($0.44/ea) 1000 $350.00 ($0.35/ea)	Quantity for Tamper Proof Machine Screws, Spanner Flat Head, Stainless Steel 18-8, #8-32 x 3/4" $0.00
#8-32 x 1" 6200-006-0052	1 $0.80 ($0.80/ea) 100 $44.00 ($0.44/ea) 1000 $380.00 ($0.38/ea)	Quantity for Tamper Proof Machine Screws, Spanner Flat Head, Stainless Steel 18-8, #8-32 x 1" $0.00
#8-32 x 1-1/4" 6200-006-0062	1 $0.85 ($0.85/ea) 100 $47.00 ($0.47/ea) 1000 $390.00 ($0.39/ea)	Quantity for Tamper Proof Machine Screws, Spanner Flat Head, Stainless Steel 18-8, #8-32 x 1-1/4" $0.00
#8-32 x 2" 6200-006-0092	1 $1.03 ($1.03/ea) 100 $57.00 ($0.57/ea) 1000 $580.00 ($0.58/ea)	Quantity for Tamper Proof Machine Screws, Spanner Flat Head, Stainless Steel 18-8, #8-32 x 2" $0.00
#8-32 x 2-1/2" 6200-006-0102	1 $1.37 ($1.37/ea) 100 $126.00 ($1.26/ea) 1000 $1,250.00 ($1.25/ea)	Quantity for Tamper Proof Machine Screws, Spanner Flat Head, Stainless Steel 18-8, #8-32 x 2-1/2" $0.00
