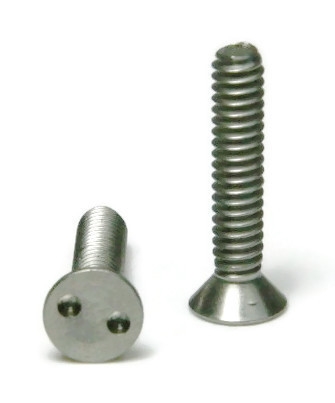

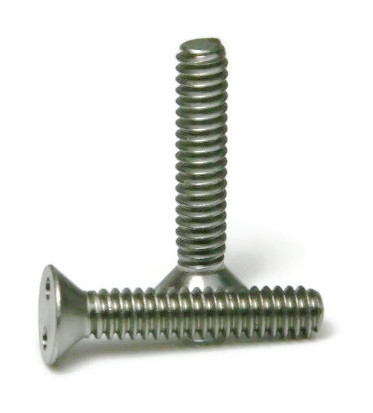

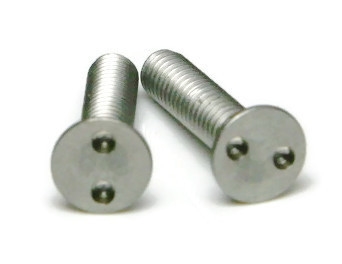

Tamper Proof Machine Screws, Spanner Flat Head, Stainless Steel 18-8, #6-32 x 1/4"
Diameter - Thread Pitch: #6-32
| Quantity | Unit price |
|---|---|
| To 99 |
$0.64*
|
| To 999 |
$0.37*
|
| From 1000 |
$0.31*
|
- Center to Center: Ref. 0.125
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: #6
- Drive Style: Spanner
- Head Type: Flat Head
- Tamper Proof: Yes
- Thread Direction: Right Hand
- Thread Type: Coarse
- Fit: 2A
- Grade: 18-8
- Head Diameter: Max 0.279 - Min 0.244
- Head Style: Flat
- Length: 1/4"
- Material: Stainless Steel
- Overall Head Height: Max 0.083 - Min 0.069
- Part Number: 720572108514
- Product Type: Tamper Proof Machine Screws
- Size System: US
- Size Type: Regular
- Spanner Drive: #6
- System of Measurement: Inch
- Thread Diameter: (#6) Max 0.1372 - Min 0.1312
- Thread Direction: Right Hand
- Thread Pitch: 32 Per Inch
- Thread Size: #6-32
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- Spanner (snake eye) drive style is uncommon creating a more secure fastener assembly
- A machine screw is commonly identified by its small size
- Commonly used in bathroom stalls or on public art displays
- Rust and corrosion resistant
- Suitable for external environments where fresh water is present
- Scratching or burring the metal will not create surface rust as the metal itself is corrosion resistant not just a coating
#6-32 Spanner flat head security machine screws are made of 18-8 stainless steel.
Product number:
6200-004-0002
