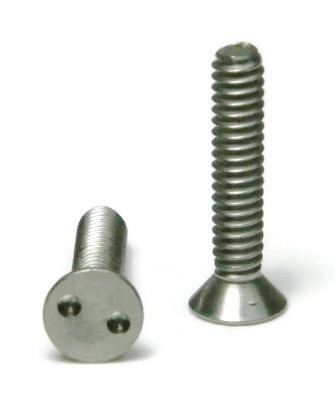

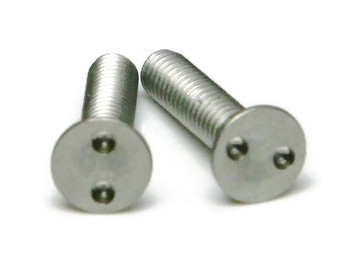

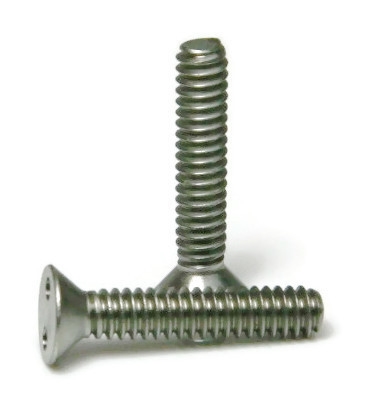

#4-40 Spanner Flat Head Tamper Proof Machine Screw 18/8 Stainless Steel

#4-40 Spanner Security Flat Head Machine Screws

Diameter - Thread Pitch: #4-40


  • Spanner (snake eye) drive style is uncommon creating a more secure fastener assembly
  • A machine screw is commonly identified by its small size
  • Commonly used in bathroom stalls or on public art displays
  • Rust and corrosion resistant
  • Suitable for external environments where fresh water is present
  • Scratching or burring the metal will not create surface rust as the metal itself is corrosion resistant not just a coating

#4-40 Spanner flat head security machine screws are made of 18-8 stainless steel.

Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
TP Spanner Flat Head Machine Screw 18-8 SS - #4-40 x 1/4"
SKU #6200-002-0002
TP Spanner Flat Head Machine Screw 18-8 SS - #4-40 x 1/4"
SKU #6200-002-0002
1
$0.93 (0.93/ea)
25
$22.25 (0.89/ea)
100
$36.00 (0.36/ea)
1000
$300.00 (0.3/ea)
Subtotal: $0.00 /
TP Spanner Flat Head Machine Screw 18-8 SS - #4-40 x 3/8"
SKU #6200-002-0012
TP Spanner Flat Head Machine Screw 18-8 SS - #4-40 x 3/8"
SKU #6200-002-0012
1
$0.97 (0.97/ea)
25
$23.50 (0.94/ea)
100
$38.00 (0.38/ea)
1000
$360.00 (0.36/ea)
Subtotal: $0.00 /
TP Spanner Flat Head Machine Screw 18-8 SS - #4-40 x 1/2"
SKU #6200-002-0022
TP Spanner Flat Head Machine Screw 18-8 SS - #4-40 x 1/2"
SKU #6200-002-0022
1
$0.99 (0.99/ea)
25
$23.75 (0.95/ea)
100
$40.00 (0.4/ea)
1000
$320.00 (0.32/ea)
Subtotal: $0.00 /




Product Specifications
Color
Silver
Corrosion Resistant
Yes
Diameter
#4
Drive Style
Spanner
Grade
18-8
Head Diameter
Max 0.225 - Min 0.195
Head Style
Flat
Material
Stainless Steel
Overall Head Height
Max 0.067 - Min 0.055
Product Type
Tamper Proof Machine Screws
Spanner Drive
#4
System of Measurement (Unit)
Inch
Thread Diameter
(#4) Max 0.1112 - Min 0.1120
Thread Direction
Right Hand
Thread Pitch (Count)
40 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
