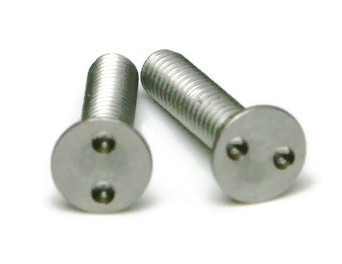

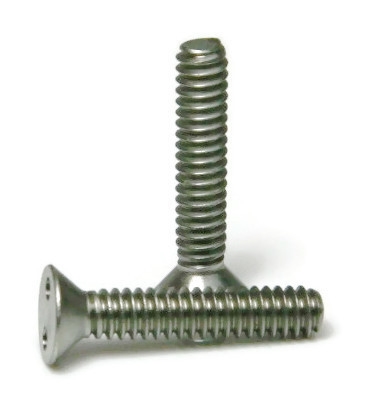

#10-24 Spanner Flat Head Tamper Proof Machine Screw 18/8 Stainless Steel

#10-24 Spanner Security Flat Head Machine Screws

Diameter - Thread Pitch: #10-24

  • Spanner (snake eye) drive style is uncommon creating a more secure fastener assembly
  • Commonly used in bathroom stalls or on public art displays
  • A machine screw is commonly identified by its small size
  • Rust and corrosion resistant
  • Suitable for external environments where fresh water is present
  • Scratching or burring the metal will not create surface rust as the metal itself is corrosion resistant not just a coating

#10-24 Spanner flat head security machine screws are made of 18-8 stainless steel.

Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
TP Spanner Flat Head Security Machine Screw 18-8 SS #10-24 x 3/8"
SKU #6200-008-0002
TP Spanner Flat Head Security Machine Screw 18-8 SS #10-24 x 3/8"
SKU #6200-008-0002
1
 $0.64 (0.64/ea)
100
 $40.00 (0.4/ea)
1000
 $350.00 (0.35/ea)
Subtotal: $0.00 /
TP Spanner Flat Head Security Machine Screw 18-8 SS #10-24 x 1/2"-
SKU #6200-008-0012
TP Spanner Flat Head Security Machine Screw 18-8 SS #10-24 x 1/2"-
SKU #6200-008-0012
1
 $0.68 (0.68/ea)
100
 $42.00 (0.42/ea)
1000
 $360.00 (0.36/ea)
Subtotal: $0.00 /
TP Spanner Flat Head Security Machine Screw 18-8 SS #10-24 x 5/8"-
SKU #6200-008-0022
TP Spanner Flat Head Security Machine Screw 18-8 SS #10-24 x 5/8"-
SKU #6200-008-0022
1
 $0.72 (0.72/ea)
100
 $44.00 (0.44/ea)
1000
 $380.00 (0.38/ea)
Subtotal: $0.00 /
TP Spanner Flat Head Security Machine Screw 18-8 SS #10-24 x 3/4"-
SKU #6200-008-0032
TP Spanner Flat Head Security Machine Screw 18-8 SS #10-24 x 3/4"-
SKU #6200-008-0032
1
 $0.76 (0.76/ea)
100
 $45.00 (0.45/ea)
1000
 $380.00 (0.38/ea)
Subtotal: $0.00 /
TP Spanner Flat Head Security Machine Screw 18-8 SS #10-24 x 1"-
SKU #6200-008-0042
TP Spanner Flat Head Security Machine Screw 18-8 SS #10-24 x 1"-
SKU #6200-008-0042
1
 $0.83 (0.83/ea)
100
 $48.00 (0.48/ea)
1000
 $420.00 (0.42/ea)
Subtotal: $0.00 /
TP Spanner Flat Head Security Machine Screw 18-8 SS #10-24 x 1-1/4"-
SKU #6200-008-0052
TP Spanner Flat Head Security Machine Screw 18-8 SS #10-24 x 1-1/4"-
SKU #6200-008-0052
1
 $0.93 (0.93/ea)
100
 $51.00 (0.51/ea)
1000
 $450.00 (0.45/ea)
Subtotal: $0.00 /



FREQUENTLY USED WITH

Spanner Snake Eye Tamper Proof Bits - #10
Spanner Snake Eye Tamper Proof Bits - #10 10110-0002-0032
Spanner Snake Eye Tamper Proof Bits - #10
1
 $1.92 (1.92/ea)
100
 $160.00 (1.6/ea)
1000
 $1,560.00 (1.56/ea)
Subtotal: $0.00 /
32 Piece Industrial Driver Bit Set - Security Tamper Proof - V32-1TP
32 Piece Industrial Driver Bit Set - Security Tamper Proof - V32-1TP 1050-312
32 Piece Industrial Driver Bit Set - Security Tamper Proof - V32-1TP
Security Tamper Proof Insert Bits - 32 Piece Industrial Driver Bit Set
Tamper Proof Insert Bit Set - V32-1TP

Our Price: $36.79
Subtotal: $0.00 /
Product Specifications
Color
Silver
Corrosion Resistant
Yes
Diameter
#10
Drive Style
Spanner
Grade
18-8
Head Diameter
Max 0.385 - Min 0.340
Head Style
Flat
Material
Stainless Steel
Overall Head Height
Max 0.116 - Min 0.098
Product Type
Tamper Proof Machine Screws
Spanner Drive
#10
System of Measurement (Unit)
Inch
Thread Diameter
(#10) Max 0.1890 - Min 0.1818
Thread Direction
Right Hand
Thread Pitch (Count)
24 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
