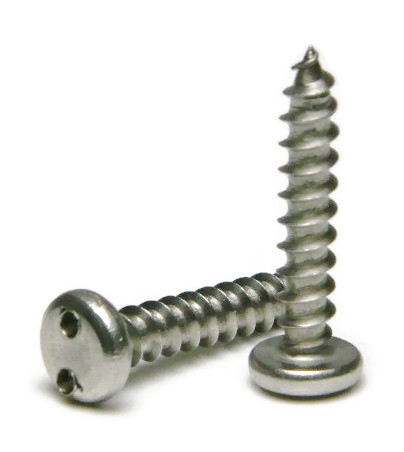

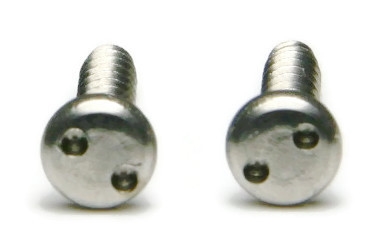

#4-24 Spanner Pan Head Tamper Proof Sheet Metal Screw 18-8 Stainless Steel

#4-24 Stainless Steel Spanner Security Pan Head Sheet Metal Screws

Diameter: #4

  • #4
  • Cut into sheet metal plastic or wood
  • Fully threaded
  • Great for attaching metal to wood
  • Strong retention in wood
  • Spanner Drive: used for security
  • Sizes listed below as: Diameter - Length
  • Sharp point to aid in installation
  • Commonly Used For:
    • Public Areas
    • Gutters
    • License Plates
    • Grills
    • Schools
    • Jails
    • Boats
    • Food Prep Areas
    • Public Restrooms
Type A Sheet Metal Screw Thread Specifications
This item qualifies for FREE SHIPPING on orders $250+
Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
TP Spanner Pan Head Sheet Metal Screw 18-8 SS - #4 x 3/8"
SKU #6206-002-0012
TP Spanner Pan Head Sheet Metal Screw 18-8 SS - #4 x 3/8"
SKU #6206-002-0012
1
 $0.75 (0.75/ea)
25
 $16.50 (0.66/ea)
100
 $46.00 (0.46/ea)
1000
 $410.00 (0.41/ea)
Subtotal: $0.00 /
TP Spanner Pan Head Sheet Metal Screw 18-8 SS - #4 x 1/2"
SKU #6206-002-0022
TP Spanner Pan Head Sheet Metal Screw 18-8 SS - #4 x 1/2"
SKU #6206-002-0022
1
 $0.77 (0.77/ea)
25
 $16.75 (0.67/ea)
100
 $47.00 (0.47/ea)
1000
 $420.00 (0.42/ea)
Subtotal: $0.00 /
TP Spanner Pan Head Sheet Metal Screw 18-8 SS - #4 x 3/4"
SKU #6206-002-0032
TP Spanner Pan Head Sheet Metal Screw 18-8 SS - #4 x 3/4"
SKU #6206-002-0032
1
 $0.83 (0.83/ea)
25
 $17.50 (0.7/ea)
100
 $51.00 (0.51/ea)
1000
 $450.00 (0.45/ea)
Subtotal: $0.00 /
TP Spanner Pan Head Sheet Metal Screw 18-8 SS - #4 x 1"
SKU #6206-002-0042
TP Spanner Pan Head Sheet Metal Screw 18-8 SS - #4 x 1"
SKU #6206-002-0042
1
 $0.85 (0.85/ea)
25
 $18.50 (0.74/ea)
100
 $53.00 (0.53/ea)
1000
 $460.00 (0.46/ea)
Subtotal: $0.00 /

Frequently Used With

Spanner Snake Eye Tamper Proof Bits - #4
Spanner Snake Eye Tamper Proof Bits - #4 10110-0002-0002
Spanner Snake Eye Tamper Proof Bits - #4
1
 $6.41 (6.41/ea)
25
 $50.25 (2.01/ea)
100
 $182.00 (1.82/ea)
1000
 $1,650.00 (1.65/ea)
Subtotal: $0.00 /
32 Piece Industrial Driver Bit Set - Security Tamper Proof - V32-1TP
32 Piece Industrial Driver Bit Set - Security Tamper Proof - V32-1TP 1050-312
32 Piece Industrial Driver Bit Set - Security Tamper Proof - V32-1TP
Security Tamper Proof Insert Bits - 32 Piece Industrial Driver Bit Set
Tamper Proof Insert Bit Set - V32-1TP

Our Price: $36.79
Subtotal: $0.00 /
Product Specifications
Color
Silver
Corrosion Resistant
Yes
Diameter
#4
Drive Style
Spanner
Grade
18-8
Head Style
Pan
Material
Stainless Steel
Product Type
Tamper Proof Sheet Metal Screws
Spanner Drive
#4
System of Measurement (Unit)
Inch
Thread Diameter Major
(#4) Max 0.114 - Min 0.110
Thread Diameter Minor
(#4) Max 0.083 - Min 0.078
Thread Direction
Right Hand
Thread Pitch (Count)
24 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
