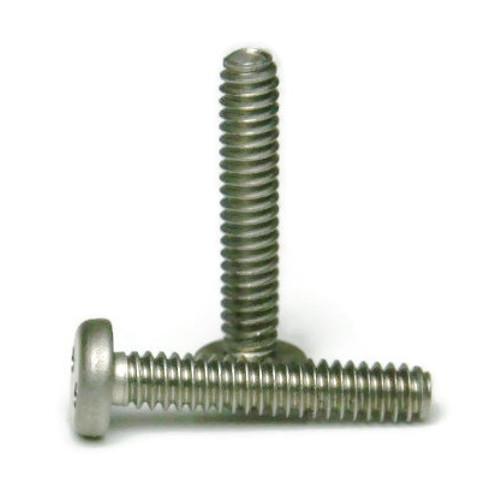

Tamper Proof Machine Screws, Spanner Pan Head, Stainless Steel 18-8, #8-32 x 3/8"

Diameter - Thread Pitch: #8-32

Diameter x Length

#8-32 x 1-1/4"

#8-32 x 1/2"

#8-32 x 1/4"

#8-32 x 3/4"

#8-32 x 3/8"

#8-32 x 5/8"

Elongation: 30%
Head Type: Pan Head
Tamper Proof: Yes
Thread Direction: Right Hand
Thread Type: Coarse
Fit: 2A
Grade: 18-8
Head Diameter: Max 0.322 - Min 0.306
Head Style: Pan
Length: 3/8"
Material: Stainless Steel
Overall Head Height: Max 0.096 - Min 0.085
Part Number: 720572110203
Product Type: Tamper Proof Machine Screws
Size System: US
Size Type: Regular
Spanner Drive: #8
System of Measurement: Inch
Thread Diameter: (#8) Max 0.1631 - Min 0.1571
Thread Direction: Right Hand
Thread Pitch: 32 Per Inch
Thread Size: #8-32
Thread Standard: UNC
Thread Type: Coarse
Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Weight: 1 lb

Toggle More

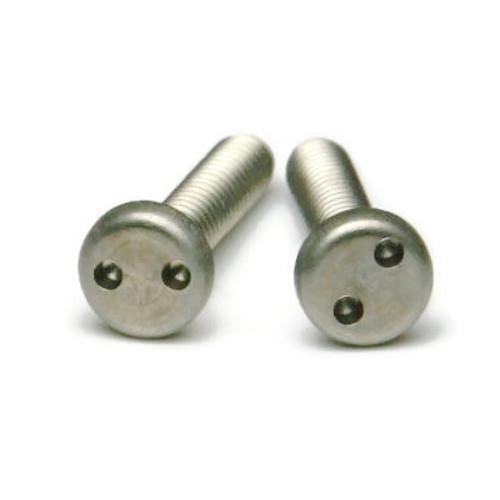

Spanner (snake eye) drive style which is uncommon and may add security to an installation
A machine screw is commonly identified by its small size
18-8 stainless steel spanner pan head machine screws are corrosion and rust resistant
18-8 stainless steel are best used in freshwater environments or in areas where contact with water is frequent
Commonly found in:
- Public Restroom Dividers
- Gutters
- License Plate Brackets

#8-32 Tamper proof spanner pan head machine screws are available in 18-8 stainless steel.

Product number: 6202-006-0012

SIZE/SKU	SELECT PACKAGE QUANTITY			SUBTOTAL
#8-32 x 1/4" 6202-006-0002	1 $0.80 (0.8/ea)	100 $47.00 (0.47/ea)	1000 $390.00 (0.39/ea)	Quantity for Tamper Proof Machine Screws, Spanner Pan Head, Stainless Steel 18-8, #8-32 x 1/4" $0.00
#8-32 x 3/8" 6202-006-0012	1 $0.66 (0.66/ea)	100 $39.00 (0.39/ea)	1000 $320.00 (0.32/ea)	Quantity for Tamper Proof Machine Screws, Spanner Pan Head, Stainless Steel 18-8, #8-32 x 3/8" $0.00
#8-32 x 1/2" 6202-006-0022	1 $0.69 (0.69/ea)	100 $40.00 (0.4/ea)	1000 $330.00 (0.33/ea)	Quantity for Tamper Proof Machine Screws, Spanner Pan Head, Stainless Steel 18-8, #8-32 x 1/2" $0.00
#8-32 x 5/8" 6202-006-0032	1 $0.72 (0.72/ea)	100 $42.00 (0.42/ea)	1000 $340.00 (0.34/ea)	Quantity for Tamper Proof Machine Screws, Spanner Pan Head, Stainless Steel 18-8, #8-32 x 5/8" $0.00
#8-32 x 3/4" 6202-006-0042	1 $0.76 (0.76/ea)	100 $44.00 (0.44/ea)	1000 $350.00 (0.35/ea)	Quantity for Tamper Proof Machine Screws, Spanner Pan Head, Stainless Steel 18-8, #8-32 x 3/4" $0.00
#8-32 x 1-1/4" 6202-006-0062	1 $0.85 (0.85/ea)	100 $46.00 (0.46/ea)	1000 $390.00 (0.39/ea)	Quantity for Tamper Proof Machine Screws, Spanner Pan Head, Stainless Steel 18-8, #8-32 x 1-1/4" $0.00
