Solid Strut Channel 12 Gauge 1-5/8" x 1-5/8", Stainless Steel 316 - 4 Foot Long
| Quantity | Unit price |
|---|---|
| To 9 |
$92.73*
|
| From 10 |
$92.23*
|
- Color: Silver
- Finish: Stainless Steel
- Gauge: 12
- Length: 4'
- Manufacturer Part Number: W200S610
- Material: Stainless Steel 316
- Strut Size: 1-5/8" x 1-5/8"
- System of Measurement: Inch
- Width: 1-5/8"

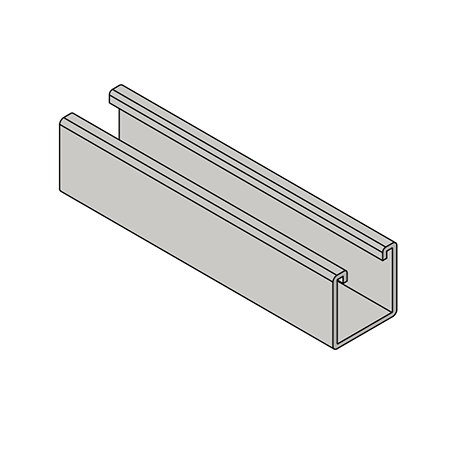

12 gauge channel solid strut in 316 Stainless Steel finish.

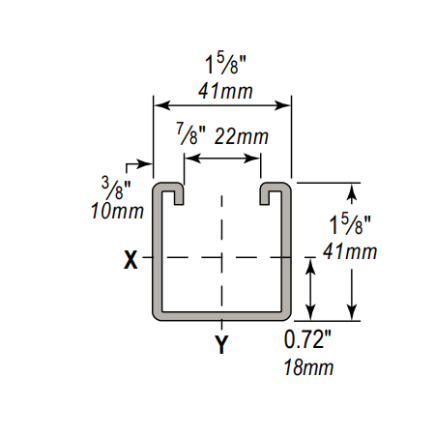

- Strut: 1 5⁄8" (41mm) width x 1 5⁄8" (41mm) height
- Length tolerance plus or minus 1⁄16"
- A 240 TYPE 316 Heat resisting chromium and chromium-nickel stainless steel plate, sheet, strip for pressure vessel.
- Channels are manufactured by the cold roll forming process which produces cross sections of uniform dimensions within tolerances established by the Metal Framing Manufacturer's Association, Metal Framing Standards Publication No. MFMA-4.

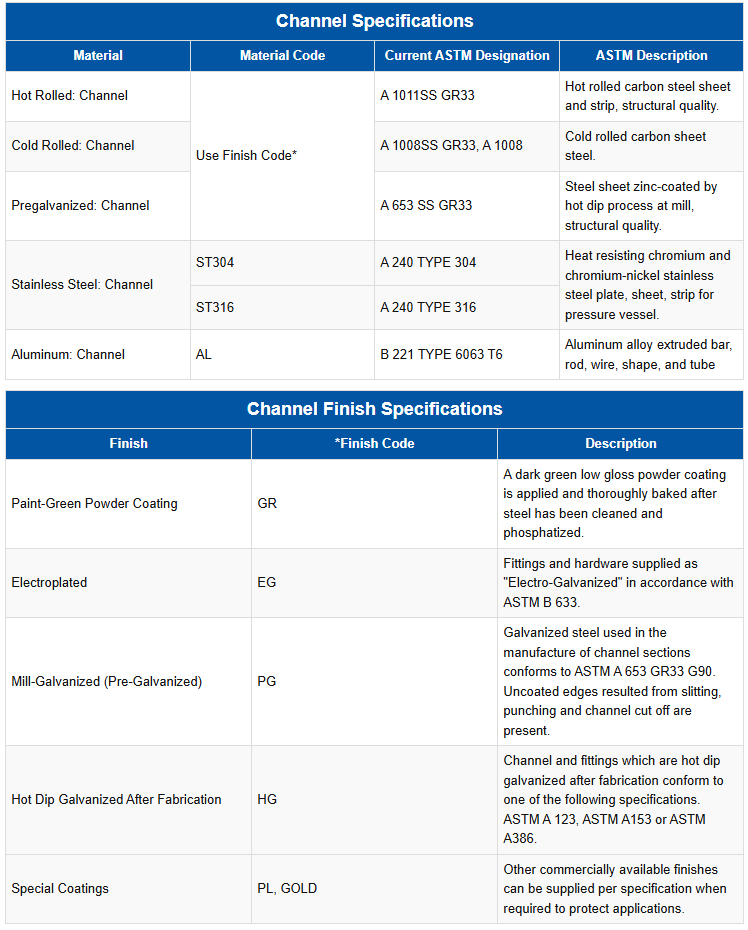

- Steel used in the manufacture of channels conforms to the ASTM specifications under the Specifications tab below.
- Design is based on AISI S100-2016 "Specification for the Design of Cold-Formed Steel Structural Members." Maximum bending stress used in design is 25,000 pounds per square inch (PSI). This is based upon a virgin steel minimum yield stress of 33,000 psi cold worked to an average yield stress of 42,000 psi.
- Welds meet the performance requirements of section 4 of AISI S100-2016 "Specification for the design of Cold-Formed Steel Structural Members." All multiple sections of two or more single channels are resistance spot-welded approximately 2" to 3" (51mm to 76mm) on center.

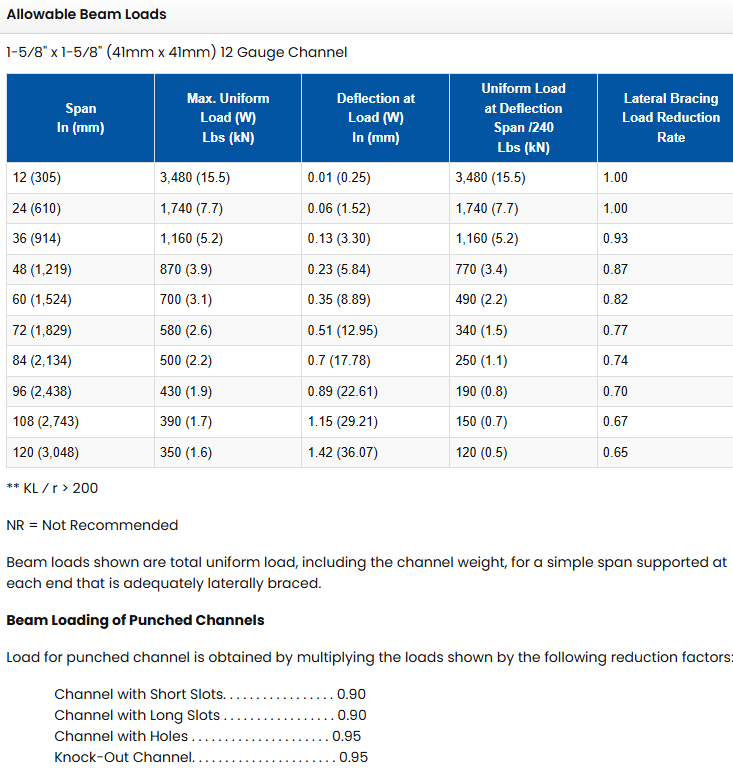

1-5⁄8" x 1-5⁄8" (41mm x 41mm) 12 Gauge Channel - BEAM LOAD
| Span In (mm) | Max. Uniform Load (W) Lbs (kN) | Deflection at Load (W) In (mm) | Uniform Load at Deflection Span /240 Lbs (kN) | Lateral Bracing Load Reduction Rate |
|---|---|---|---|---|
| 12 (305) | 3,480 (15.5) | 0.01 (0.25) | 3,480 (15.5) | 1.00 |
| 24 (610) | 1,740 (7.7) | 0.06 (1.52) | 1,740 (7.7) | 1.00 |
| 36 (914) | 1,160 (5.2) | 0.13 (3.30) | 1,160 (5.2) | 0.93 |
| 48 (1,219) | 870 (3.9) | 0.23 (5.84) | 770 (3.4) | 0.87 |
| 60 (1,524) | 700 (3.1) | 0.35 (8.89) | 490 (2.2) | 0.82 |
| 72 (1,829) | 580 (2.6) | 0.51 (12.95) | 340 (1.5) | 0.77 |
| 84 (2,134) | 500 (2.2) | 0.7 (17.78) | 250 (1.1) | 0.74 |
| 96 (2,438) | 430 (1.9) | 0.89 (22.61) | 190 (0.8) | 0.70 |
| 108 (2,743) | 390 (1.7) | 1.15 (29.21) | 150 (0.7) | 0.67 |
| 120 (3,048) | 350 (1.6) | 1.42 (36.07) | 120 (0.5) | 0.65 |

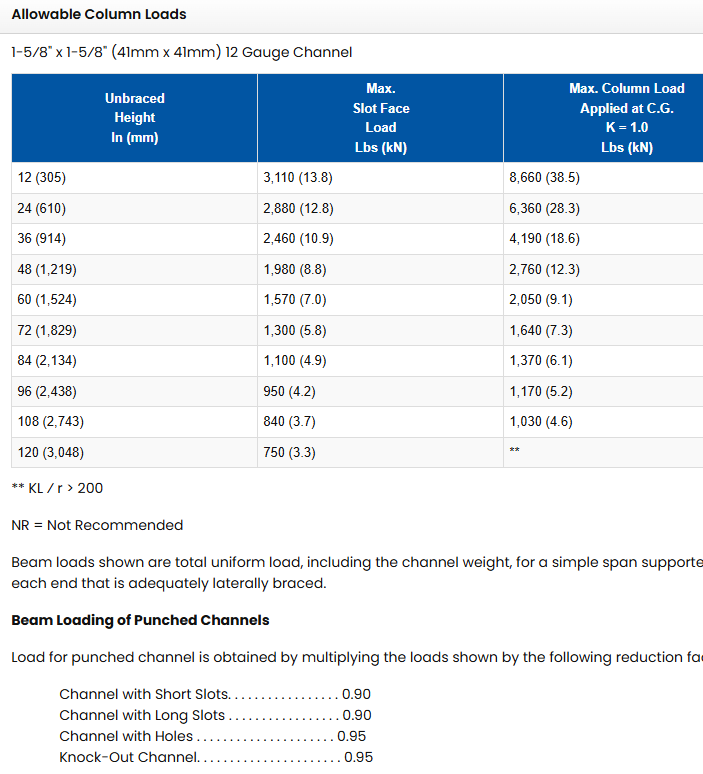

** KL ⁄ r > 200
NR = Not Recommended
Need a custom size?
Request Custom Cut →
Product number:
S-TRT-SOLIDSS316DEEP4
