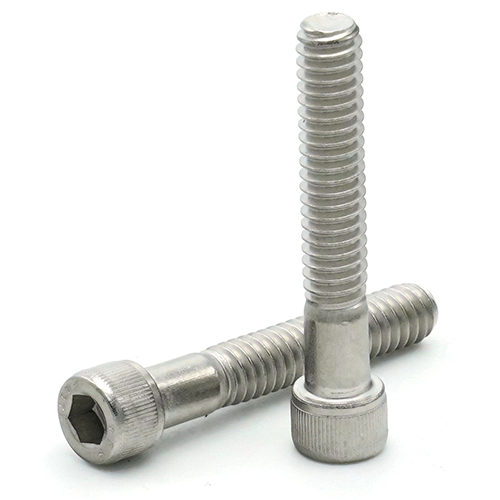

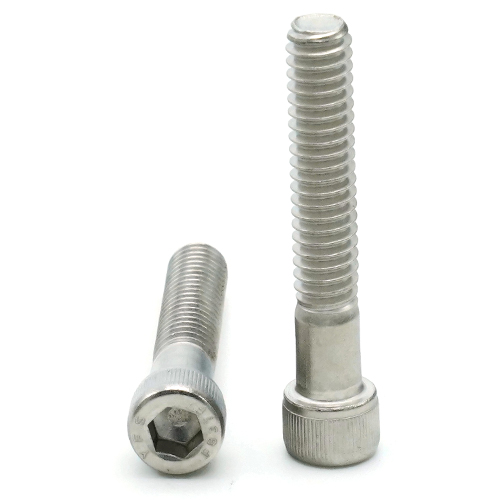

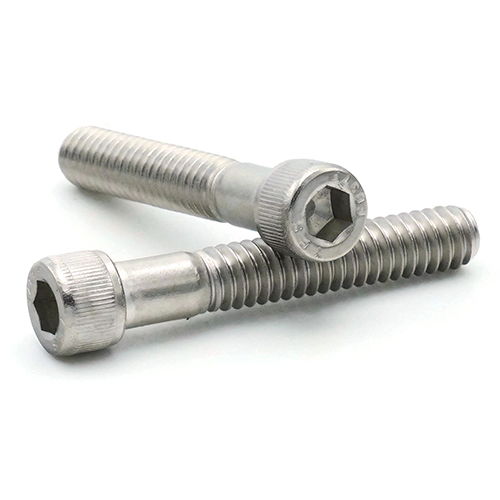

Socket Cap Screws, Stainless Steel 316, 3/4"-10 x 2"
Screw Diameter - Thread Pitch: 3/4"-10
| Quantity | Unit price |
|---|---|
| To 99 |
$5.21*
|
| To 999 |
$0.38*
|
| From 1000 |
$0.34*
|
- Chamfer on Radius: Max 0.010
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: 3/4"
- Drive Style: Internal Hex (Allen)
- Head Type: Socket Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Fit: 3A
- Grade: 316
- Head Height: Max 0.750 - Min 0.73
- Head Diameter: Max 1.125 - Min 1.115
- Head Style: Socket Cap
- Hex Drive: 5/8"
- Length: 2"
- Marine Grade: Yes
- Material: Stainless Steel
- Part Number: 720572137934
- Product Type: Socket Cap Screws
- Size System: US
- Size Type: Regular
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 10 Per Inch
- Thread Size: 3/4"-10
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
3/4"-10 Stainless steel knurled head socket cap screws are driven by an allen or hex wrench.
- Commonly referred to as allen bolts, socket head cap screws, or socket head screws
- externally grooved cap head
- can be driven by hand
- cylindrical head
- head diameter is nominally 1.5 times or more that of the screw shank (major) diameter
- 316 Stainless steel offers superior corrosion and rust resistance
- Ideal for marine and salt water environments
Sizes Listed As:
Diameter - Thread Pitch x Length from Underside of Head
FT = Full Thread
PT = Partial Thread
Product number:
7200-032-0002
