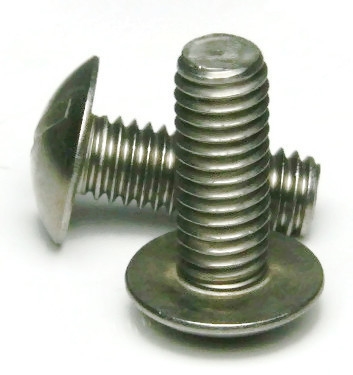

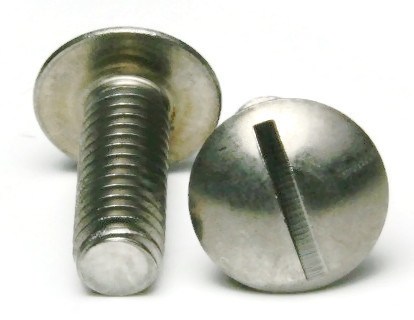

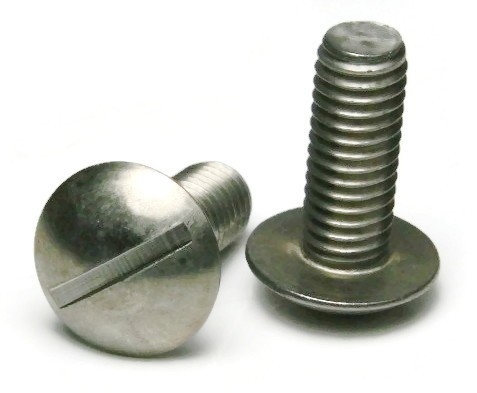

#8-32 Slotted Truss Head Machine Screw 18-8 Stainless Steel

#8-32 Stainless Steel Slotted Truss Head Machine Screws

Diameter - Thread Pitch: #8-32

  • Slotted drive for a slotted or flat head drive
  • Truss Head: over-sized head with an undercut bottom and low-profile rounded top
  • A machine screw is commonly identified by its small size
  • Wider head style to distribute pressure over a larger surface area and prevent accidental loosening
  • 18-8 stainless steel slotted truss head machine screws are corrosion and rust resistant
  • Perfect for outdoor applications where freshwater moisture is present

#8-32 Slotted drive truss head machine screws are available in grade 18-8 stainless steel.

This item qualifies for FREE SHIPPING on orders $250+
Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Slotted Truss Head Machine Screw 18-8 SS - #8-32 x 5/8"
SKU #5300-002-0002
Slotted Truss Head Machine Screw 18-8 SS - #8-32 x 5/8"
SKU #5300-002-0002
1
 NA
25
 $4.75 (0.19/ea)
100
 $13.00 (0.13/ea)
1000
 $110.00 (0.11/ea)
Subtotal: $0.00 /

Frequently Used With

Slotted Power Bits - #6-8 x 2"
Slotted Power Bits - #6-8 x 2" 1050-806-0052
Slotted Power Bits - #6-8 x 2
1
 $1.53 (1.53/ea)
10
 $12.90 (1.29/ea)
25
 $29.00 (1.16/ea)
50
 $52.50 (1.05/ea)
Subtotal: $0.00 /
Slotted Power Bits - #8-10 x 2"
Slotted Power Bits - #8-10 x 2" 1050-806-0062
Slotted Power Bits - #8-10 x 2
1
 $1.84 (1.84/ea)
10
 $15.60 (1.56/ea)
25
 $35.25 (1.41/ea)
50
 $64.50 (1.29/ea)
Subtotal: $0.00 /
Hex Machine Nuts 304 Stainless Steel - #8-32 (11/32 Flats x 1/8 Thick)
Hex Machine Nuts 304 Stainless Steel - #8-32 (11/32 Flats x 1/8 Thick) 125072
Hex Machine Nuts 304 Stainless Steel - #8-32 (11/32 Flats x 1/8 Thick)
1
 NA
25
 $1.50 (0.06/ea)
100
 $4.00 (0.04/ea)
1000
 $30.00 (0.03/ea)
Subtotal: $0.00 /
Flat Washers 304 SS - #8 (.174 ID x .375 OD x .031 Thick)
Flat Washers 304 SS - #8 (.174 ID x .375 OD x .031 Thick) 1000-105112
Flat Washers 304 SS - #8 (.174 ID x .375 OD x .031 Thick)
1
 NA
25
 $1.50 (0.06/ea)
100
 $3.00 (0.03/ea)
1000
 $20.00 (0.02/ea)
Subtotal: $0.00 /
Product Specifications
Color
Silver
Corrosion Resistant
Yes
Diameter
#8
Drive Style
Slotted
Grade
18-8
Head Diameter
Max 0.384 - Min 0.364
Head Style
Truss
Material
Stainless Steel
Overall Head Height
Max 0.102 - Min 0.088�
Product Type
Machine Screws
System of Measurement (Unit)
Inch
Thread Diameter
(#8) Max 0.1631 - Min 0.1571
Thread Direction
Right Hand
Thread Pitch (Count)
32 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
