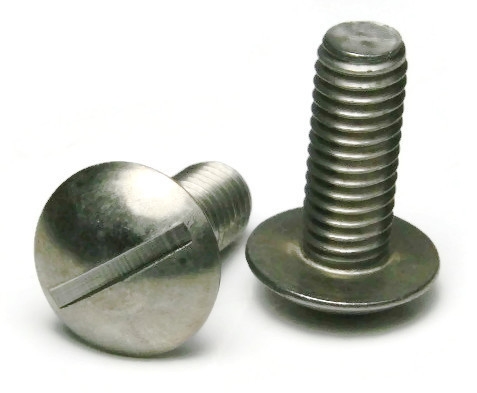

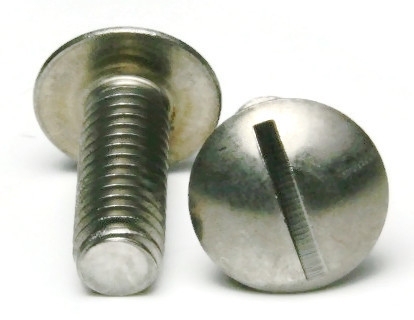

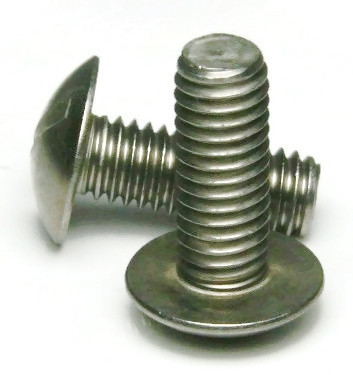

3/8"-16 Slotted Truss Head Machine Screw 18-8 Stainless Steel
Slotted Truss Head Machine Screw 18-8 Stainless Steel 3/8-16



Alternative Views:


Stainless Steel Slotted Truss Head Machine Screws

Diameter - Thread Pitch: 3/8"-16

Stainless Steel Slotted Truss Head Machine screws feature an oversized head with an undercut bottom and a low profile domed top. Slotted Truss Head Machine Screws are also known as Mushroom Head Screws, due to the size and undercut of the screw head. Truss Head Screws have a lower profile than Pan Head Screws, which is meant to prevent tampering or accidental loosening, as well as distributing the force of the installation over a wider diameter. Truss Head Screws in this selection feature a Slotted Drive and an 18-8 Stainless Steel Finish, making them corrosion and rust resistant in applications exposed to fresh water moisture. The nature of the head on these screws, as well as the 18-8 Stainless Steel material ensure a durable fastener assembly.

Product Specifications:
Slotted Truss Head Machine Screws
Thread Diameter: (3/8") Max 0.3737 - Min 0.3643
Thread Pitch: 16 Per Inch (Coarse)
Thread Direction: Right Hand
Head Diameter: Max 0.823 - Min 0.787
Overall Head Height: Max 0.215 - Min 0.191
(From Bottom to Top of Head)
Material: 18-8 Stainless Steel
Diameter x Thread Pitch x Length from Underside of Head
Specifications may vary +/- within IFI Tolerances

Matching Products:
Hex Finish Nuts Screwdriver Sets
Stainless Steel Hex Nuts
Screwdriver


Item# Item Name Our Price Qty Add
5300-008-0002 Slotted Truss Head Machine Screw 18-8 SS - 3/8"-16 x 1" Qty-1
$1.04
5300-008-0004 Slotted Truss Head Machine Screw 18-8 SS - 3/8"-16 x 1" Qty-25
$28.59
5300-008-0006 Slotted Truss Head Machine Screw 18-8 SS - 3/8"-16 x 1" Qty-100
$86.63
5300-008-0008 Slotted Truss Head Machine Screw 18-8 SS - 3/8"-16 x 1" Qty-250
$194.91
5300-008-0010 Slotted Truss Head Machine Screw 18-8 SS - 3/8"-16 x 1" Qty-1000
$693.00
