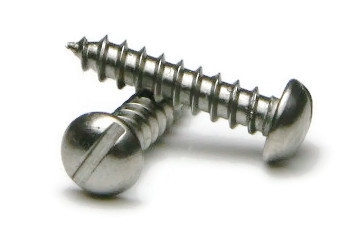

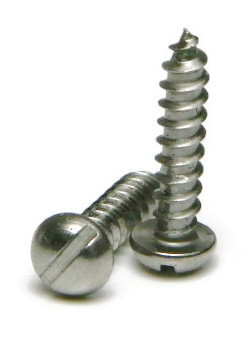

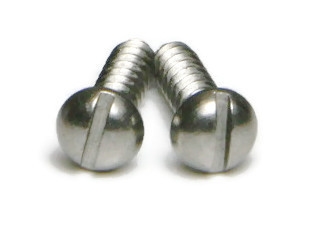

Sheet Metal Screws, Slotted Round Head, Stainless Steel 18-8, #8 x 3/4"

Diameter - Thread Pitch: #8-15

#8-15
Sharp cutting threads
Excellent retention in wood
Round head with a slotted drive
Clean silver color also used for finishing and decorative applications
18-8 Stainless steel is corrosion and rust resistant
NOTE: Sheet metal screws provide excellent retention in wood but are very difficult to remove

Type A Sheet Metal Screw Thread Specifications

Product number: 1013-100024-0042

Print this page

Specifications

ANSI: B18.6.4
Class: 2A
Color (Duplicate): Silver
Color: Silver
Condition: New
Corrosion Resistant: Yes
Diameter: #8
Drive Style: Slotted
Elongation: 10% - 25%
Head Type: Round Head
Thread Direction: Right Hand
Thread Type: Coarse
Grade: 18-8
Hardness: 100 Rockwell B
Head Style: Round
Length: 3/4"
Material (Duplicate): 18-8 Stainless Steel
Material: Stainless Steel
Part Number: 720572134582
Point Type: A
Product Type: Sheet Metal Screws
Size System: US
Size Type: Regular
Standards Met: ANSI B18.6.4
System of Measurement: Inch
Tensile PSI: 100,000 - 125,000 PSI
Thread Diameter Major: (#8) 0.168" - 0.162"
Thread Diameter Minor: (#8) 0.123" - 0.116"
Thread Direction: Right Hand
Thread Pitch: 15 Per Inch
Thread Size: #8
Thread Standard: UNC
Thread Type: Coarse
Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Weight: 1 lb
Yield PSI: 55,000 - 75,000 PSI

Select Size/SKU & Quantity

1 Available Sizes

SIZE/SKU	Review Volume Pricing*	Enter Any Qty
#8-15 x 3/4" 1013-100024-0042	1 $0.07 ($0.07/ea) 100 $4.00 ($0.04/ea) 1000 $30.00 ($0.03/ea)	Quantity for Sheet Metal Screws, Slotted Round Head, Stainless Steel 18-8, #8 x 3/4" $0.00
