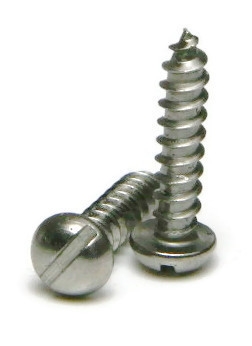

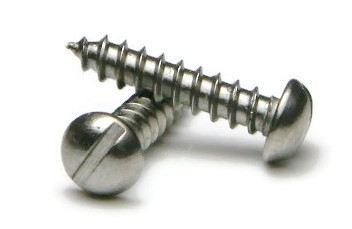

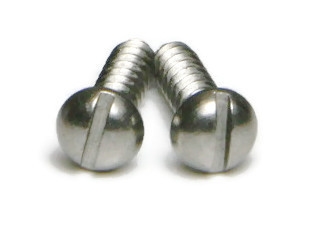

#10-16 Stainless Steel Slotted Round Head Sheet Metal Screws
Diameter - Thread Pitch: #10-16
- #10-16
- Sharp cutting threads
- Excellent retention in wood
- Round head with a slotted drive
- Clean silver color also used for finishing and decorative applications
- 18-8 Stainless steel is corrosion and rust resistant
- NOTE: Sheet metal screws provide excellent retention in wood but are very difficult to remove
See Product Specifications
Select Package Quantity
Loading ...
Product Specifications
ANSI
B18.6.4
Class
2A
Corrosion Resistant
Yes
Drive Style
Slotted
Grade
18-8
Hardness
100 Rockwell B
Head Style
Round
Material
Stainless Steel
Point Type
A
System of Measurement (Unit)
Inch
Tensile PSI
100,000 - 125,000 PSI
Thread Diameter Major
(#10) 0.194" - 0.188"
Thread Diameter Minor
(#10) 0.133" - 0.126"
Thread Direction
Right Hand
Thread Pitch (Count)
16 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Yield PSI
55,000 - 75,000 PSI
