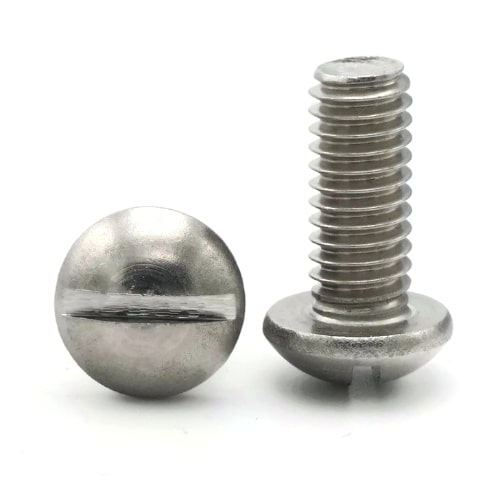

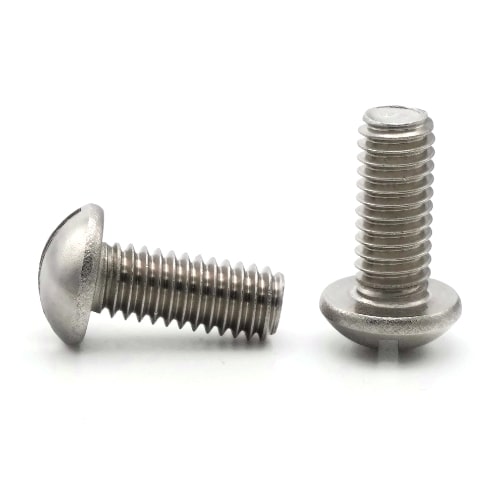

Stainless Steel Slotted Round Head Machine Screws
Diameter - Thread Pitch: #8-32
Slotted round head machine screws are ASME standards specific. These fasteners are installed with flat or slotted screwdriver. Round Head Machine Screws feature a domed top, similar to a button head but shaped more like half of a sphere. Slotted head machine screws are often used with nuts as well as driven into tapped holes. In practice, they tend to be mostly available in smaller sizes and the smaller sizes are referred to as screws, or less ambiguously as machine screws, although some kinds of machine screw can be referred to as stove bolts.
Stainless Steel Slotted Round Head Machine Screws are made of corrosion resistant 18-8 Stainless Steel. This grade of stainless steel is corrosion and rust resistant in applications exposed to fresh water moisture.
|
Product Specifications:
|
|
Slotted Round Head Machine Screws
|
|
Thread Diameter: (#8) Max 0.1631 - Min 0.1571 (Class 2A Fit, ANSI B1.1)
|
|
Thread Pitch: 32 Per Inch (Coarse)
|
|
Head Diameter: Max 0.309 - Min 0.287
|
|
Overall Head Height: Max 0.120 - Min 0.107 (From Bottom to Top of Head)
|
|
Thread Direction: Right Hand
|
|
Material: 18-8 Stainless Steel
|
Diameter x Thread Pitch x Length
Specifications may vary +/- within IFI Tolerances
|
