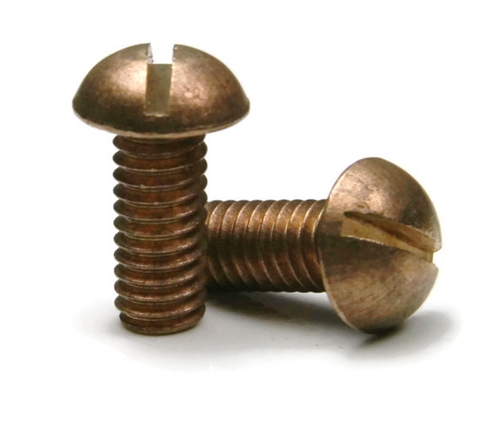

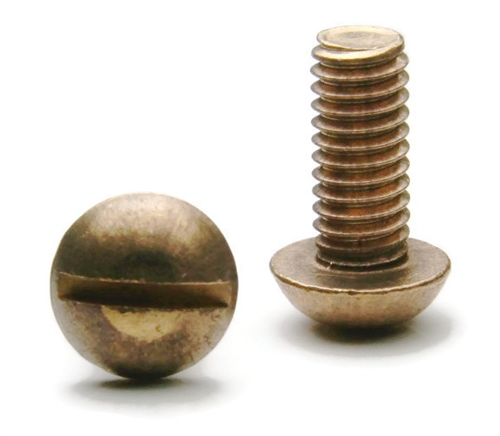

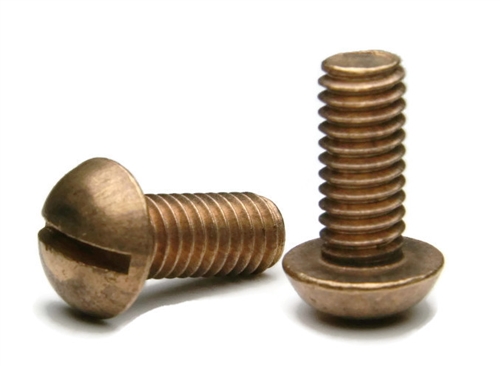

Machine Screws, Slotted Round Head, Silicon Bronze, 5/16"-18 x 3/4"

Diameter - Thread Pitch: 5/16"-18

Quantity	Unit price
To 99	$2.08*
To 999	$1.25*
From 1000	$1.17*

Diameter x Length

5/16"-18 x 1"

5/16"-18 x 1-1/2"

5/16"-18 x 1-1/4"

5/16"-18 x 1-3/4"

5/16"-18 x 2"

5/16"-18 x 2-1/2"

5/16"-18 x 3"

5/16"-18 x 3/4"

ANSI: B1.1
Class: 2A
Color: Bronze
Color May Vary: Color and sheen may vary
Condition: New

Corrosion Resistant: Yes
Diameter: 5/16"
Drive Style: Slotted
Elongation: 10% - 25%
Head Type: Round Head
Thread Direction: Right Hand
Thread Type: Coarse
Fit: 2A
Head Diameter: Max 0.590 - Min 0.557
Head Style: Round
Length: 3/4"
Marine Grade: Yes
Material: Silicon Bronze
Overall Head Height: Max 0.216 - Min 0.198
Part Number: 730656599299
Product Type: Machine Screw
Size System: US
Size Type: Regular
System of Measurement: Inch
Thread Diameter: 5/16"
Thread Diameter Major: 0.3113
Thread Diameter Minor: 0.3026
Thread Direction: Right Hand
Thread Pitch: 18 Per Inch
Thread Size: 5/16"-18
Thread Standard: UNC
Thread Type: Coarse
Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Weight: 1 lb

Toggle More

Slotted drive style designed to be driven by a flat head or slotted bit or screwdriver
ASME standards specific
Feature a domed top that looks like a half sphere
Made of copper, silicon and various other alloys (zinc, tin, iron and manganese)
A machine screw is commonly identified by its small size
Can be used in marine, corrosive and high heat environments
Often used for:
- Plumbing
- Electrical
- Tattoo Machines
- Power Plants

5/16"-18 Slotted round head machine screws are available in corrosion resistant silicon bronze.
NOTE: Color and sheen may vary

Note: All Silicon Bronze products will develop a patina based on the environment and time. These fasteners are not coated with any sealants to prevent a patina from forming. Depending on when the product was manufactured, you may receive a product that has started to develop a patina.

Product number: 1019-10026-0002

SIZE/SKU	SELECT PACKAGE QUANTITY			SUBTOTAL
5/16"-18 x 3/4" 1019-10026-0002	1 $2.08 (2.08/ea)	100 $125.00 (1.25/ea)	1000 $1,170.00 (1.17/ea)	Quantity for Machine Screws, Slotted Round Head, Silicon Bronze, 5/16"-18 x 3/4" $0.00
5/16"-18 x 1" 1019-10026-0012	1 $2.34 (2.34/ea)	100 $143.00 (1.43/ea)	1000 $1,360.00 (1.36/ea)	Quantity for Machine Screws, Slotted Round Head, Silicon Bronze, 5/16"-18 x 1" $0.00
5/16"-18 x 1-1/4" 1019-10026-0022	1 $2.67 (2.67/ea)	100 $168.00 (1.68/ea)	1000 $1,570.00 (1.57/ea)	Quantity for Machine Screws, Slotted Round Head, Silicon Bronze, 5/16"-18 x 1-1/4" $0.00
5/16"-18 x 1-1/2" 1019-10026-0032	1 $3.21 (3.21/ea)	100 $209.00 (2.09/ea)	1000 $1,950.00 (1.95/ea)	Quantity for Machine Screws, Slotted Round Head, Silicon Bronze, 5/16"-18 x 1-1/2" $0.00
5/16"-18 x 1-3/4" 1019-10026-0042	1 $3.37 (3.37/ea)	100 $218.01 (2.18/ea)	1000 $2,030.00 (2.03/ea)	Quantity for Machine Screws, Slotted Round Head, Silicon Bronze, 5/16"-18 x 1-3/4" $0.00
5/16"-18 x 2" 1019-10026-0052	1 $3.42 (3.42/ea)	100 $223.00 (2.23/ea)	1000 $2,090.00 (2.09/ea)	Quantity for Machine Screws, Slotted Round Head, Silicon Bronze, 5/16"-18 x 2" $0.00
5/16"-18 x 2-1/2" 1019-10026-0062	1 $3.93 (3.93/ea)	100 $295.00 (2.95/ea)	1000 $2,770.00 (2.77/ea)	Quantity for Machine Screws, Slotted Round Head, Silicon Bronze, 5/16"-18 x 2-1/2" $0.00
5/16"-18 x 3" 1019-10026-0072	1 $4.90 (4.9/ea)	100 $379.00 (3.79/ea)	1000 $3,550.00 (3.55/ea)	Quantity for Machine Screws, Slotted Round Head, Silicon Bronze, 5/16"-18 x 3" $0.00

Page Total: $0.00
