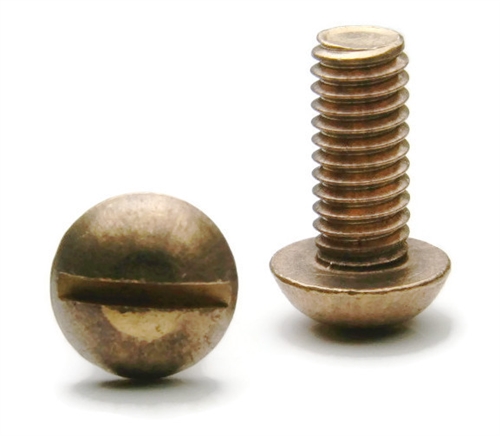

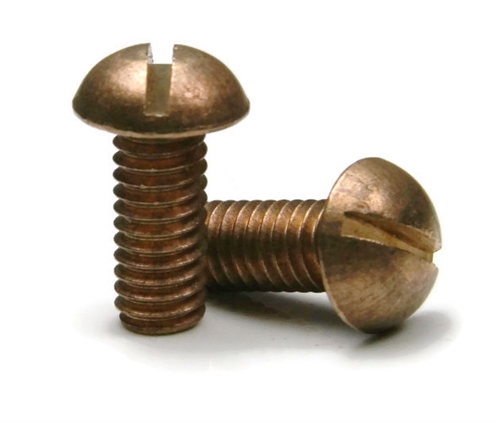

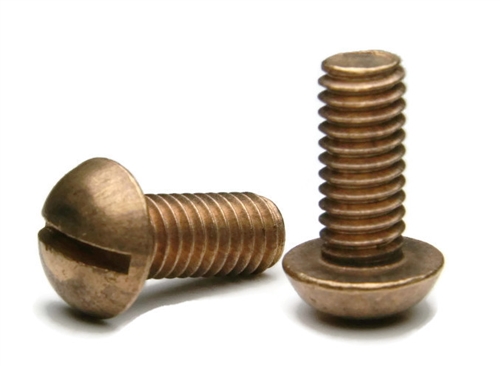

#12-24 Slotted Round Head Machine Screw Silicon Bronze

#12-24 Silicon Bronze Slotted Round Head Machine Screws

Diameter - Thread Pitch: #12-24


  • Slotted drive style designed to be driven by a flat head or slotted bit or screwdriver
  • A machine screw is commonly identified by its small size
  • ASME standards specific
  • Feature a domed top that looks like a half sphere
  • Made of copper, silicon and various other alloys (zinc, tin, iron and manganese)
  • Can be used in marine, corrosive and high heat environments
  • Often used for:
    • Plumbing
    • Electrical
    • Tattoo Machines
    • Power Plants

#12-24 Slotted round head machine screws are available in corrosion resistant silicon bronze.
NOTE: Color and sheen may vary

Note: All Silicon Bronze products will develop a patina based on the environment and time. These fasteners are not coated with any sealants to prevent a patina from forming. Depending on when the product was manufactured, you may receive a product that has started to develop a patina.

Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Slotted Round Head Machine Screw Silicon Bronze #12-24 x 1/2"-
SKU #1019-10022-0002
Slotted Round Head Machine Screw Silicon Bronze #12-24 x 1/2"-
SKU #1019-10022-0002
1
$0.72 (0.72/ea)
100
$59.00 (0.59/ea)
1000
$540.00 (0.54/ea)
Subtotal: $0.00 /
Slotted Round Head Machine Screw Silicon Bronze #12-24 x 5/8"-
SKU #1019-10022-0012
Slotted Round Head Machine Screw Silicon Bronze #12-24 x 5/8"-
SKU #1019-10022-0012
1
$0.92 (0.92/ea)
100
$76.00 (0.76/ea)
1000
$690.00 (0.69/ea)
Subtotal: $0.00 /
Slotted Round Head Machine Screw Silicon Bronze #12-24 x 3/4"-
SKU #1019-10022-0022
Slotted Round Head Machine Screw Silicon Bronze #12-24 x 3/4"-
SKU #1019-10022-0022
1
$0.92 (0.92/ea)
100
$76.00 (0.76/ea)
1000
$690.00 (0.69/ea)
Subtotal: $0.00 /



FREQUENTLY USED WITH

1
$0.36 (0.36/ea)
100
$19.00 (0.19/ea)
1000
$180.00 (0.18/ea)
Subtotal: $0.00 /
1
$0.57 (0.57/ea)
100
$34.00 (0.34/ea)
1000
$310.00 (0.31/ea)
Subtotal: $0.00 /

Product Specifications
ANSI
B18.6.3
Class
2A Fit
Color
Bronze
Color May Vary
Color and sheen may vary
Corrosion Resistant
Yes
Drive Style
Slotted
Head Diameter
Max 0.408 - Min 0.382
Head Style
Round
Marine Grade
Yes
Material
Silicon Bronze
Overall Head Height
Max 0.153 - Min 0.139
Product Type
Slotted Round Head Machine Screws
System of Measurement (Unit)
Inch
Thread Diameter
#12
Thread Diameter Major
0.215
Thread Diameter Minor
0.2078
Thread Direction
Right Hand
Thread Pitch (Count)
24 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
