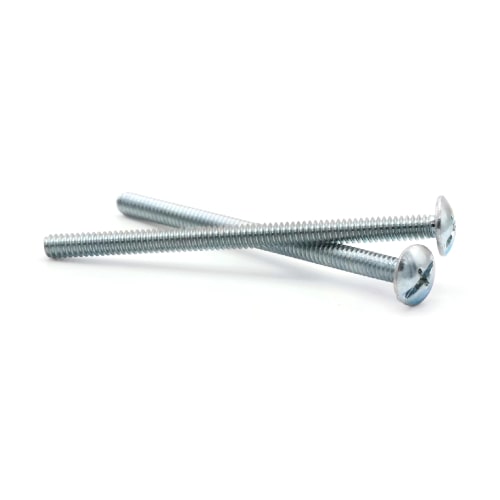

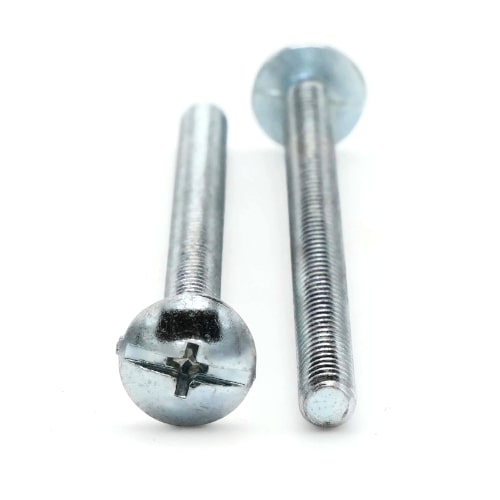

#10-24 Slotted Phillips Truss Combo Head Machine Screw Zinc Plated Steel

#10-24 Zinc Plated Phillips/Slotted Combo Truss Head Machine Screws

Diameter - Thread Pitch: #10-24

  • Screws that can be driven by either a Slotted or Phillips style drive
  • A machine screw is commonly identified by its small size
  • Commonly used with nuts or driven into tapped holes
  • Zinc plated steel slotted Phillips truss head machine screws add a layer of corrosion resistance to plain alloy steel
  • Zinc has a shiny light color and sometimes a blue hue
  • Zinc plated steel is not suitable for extreme environment use

#10-24 Slotted Phillips combo truss head machine screws with a zinc plated coating over plain alloy steel.
REACH and RoHS Compliant

Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Slotted/Phillips Truss Combo Head Machine Screw Zinc - #10-24 x 3"
SKU #8304-002-0002
Slotted/Phillips Truss Combo Head Machine Screw Zinc - #10-24 x 3"
SKU #8304-002-0002
1
 $0.31 (0.31/ea)
100
 $19.00 (0.19/ea)
1000
 $160.00 (0.16/ea)
Subtotal: $0.00 /



FREQUENTLY USED WITH

Phillips Power Bits - #2 - Length 2"
Phillips Power Bits - #2 - Length 2" 1050-500-0016
Phillips Power Bits - #2 - Length 2
1
 $1.04 (1.04/ea)
10
 $8.10 (0.81/ea)
50
 $38.00 (0.76/ea)
Subtotal: $0.00 /
ACR Phillips Power Bits - #2 x 2"
ACR Phillips Power Bits - #2 x 2" 1050-802-0022
ACR Phillips Power Bits - #2 x 2
1
 $1.06 (1.06/ea)
10
 $10.00 (1/ea)
50
 $48.00 (0.96/ea)
Subtotal: $0.00 /
Slotted Power Bits - #8-10 x 2"
Slotted Power Bits - #8-10 x 2" 1050-806-0062
Slotted Power Bits - #8-10 x 2
1
 $1.06 (1.06/ea)
10
 $9.90 (0.99/ea)
50
 $44.50 (0.89/ea)
Subtotal: $0.00 /
Slotted Power Bits - #10-12 x 2"
Slotted Power Bits - #10-12 x 2" 1050-806-0072
Slotted Power Bits - #10-12 x 2
1
 $1.06 (1.06/ea)
10
 $9.90 (0.99/ea)
50
 $44.50 (0.89/ea)
Subtotal: $0.00 /
Hex Machine Nuts Zinc - #10-24 UNC x 3/8" F x 1/8" H
Hex Machine Nuts Zinc - #10-24 UNC x 3/8" F x 1/8" H 1102-123-0122
Hex Machine Nuts Zinc - #10-24 UNC x 3/8
1
 $0.07 (0.07/ea)
100
 $3.00 (0.03/ea)
1000
 $20.00 (0.02/ea)
Subtotal: $0.00 /
Product Specifications
Color
Silver
Corrosion Resistant
Yes
Diameter
#10
Drive Style
Phillips / Slotted
Finish
Zinc Plated
Head Diameter
Max 0.448 - Min 0.425
Head Height Max
0.118
Head Style
Truss
Material
Steel
Overall Head Height
Max 0.118 - Min 0.103
Product Type
Machine Screws
System of Measurement (Unit)
Inch
Thread Direction
Right Hand
Thread Pitch (Count)
24 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
