#8-32 Slotted Pan Head Machine Screw 18-8 Stainless Steel
Slotted Pan Head #8-32 Machine Screw 18-8 304 Stainless Steel



Alternative Views:

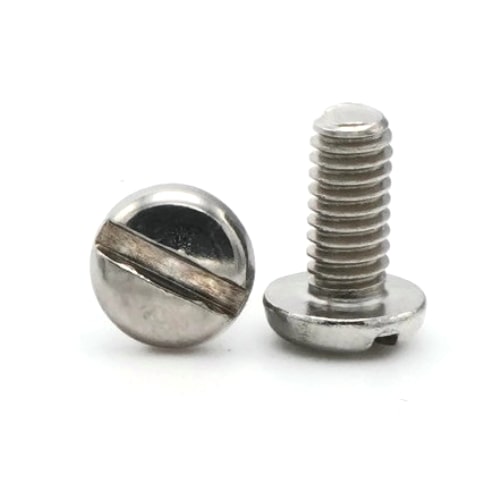

Stainless Steel Slotted Pan Head Machine Screws

Diameter - Thread Pitch: #8-32

Stainless Steel Slotted Pan Head Machine screws are ASME standards specific. Pan Head Machine Screws are often used with nuts as well as driven into tapped holes. In practice, they tend to be mostly available in smaller sizes and the smaller sizes are referred to as screws or less ambiguously as machine screws, although some kinds of machine screw can be referred to as stove bolts. Slotted Pan Head Machine Screws are corrosion resistant Stainless Steel and installed using a Flat Head or Slotted Driver.

Product Specifications:
Slotted Pan Head Machine Screws
Thread Diameter: #8 Max 0.1631 - Min 0.1571 (Class 2A Fit, ANSI B1.1)
Thread Pitch: 32 Per Inch (Coarse)
Head Diameter: Max 0.322 - Min 0.306 (ANSI B18.6.3)
Overall Head Height: Max 0.096 - Min 0.085 (From Bottom to Top of Head)
Thread Direction: Right Hand
Material: 18-8 Stainless Steel
Diameter x Thread Pitch x Length
Specifications may vary +/- within IFI Tolerances

Matching Products:
Machine Screw Nuts Screwdriver Sets
stainless steel hex nut
screwdriver


Item# Item Name Our Price Qty Add
5500-004-0002 Slotted Pan Head Machine Screw 18-8 Stainless Steel - #8-32 x 3/8" Qty-1
$0.15
5500-004-0004 Slotted Pan Head Machine Screw 18-8 Stainless Steel - #8-32 x 3/8" Qty-25
$1.43
5500-004-0006 Slotted Pan Head Machine Screw 18-8 Stainless Steel - #8-32 x 3/8" Qty-100
$4.34
5500-004-0008 Slotted Pan Head Machine Screw 18-8 Stainless Steel - #8-32 x 3/8" Qty-250
$9.74
5500-004-0010 Slotted Pan Head Machine Screw 18-8 Stainless Steel - #8-32 x 3/8" Qty-1000
$34.65
Check the items box you wish to purchase, then click
