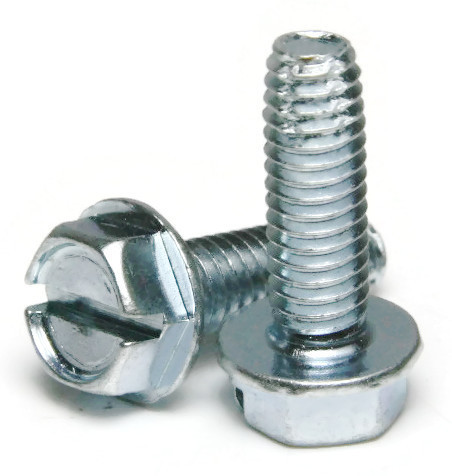

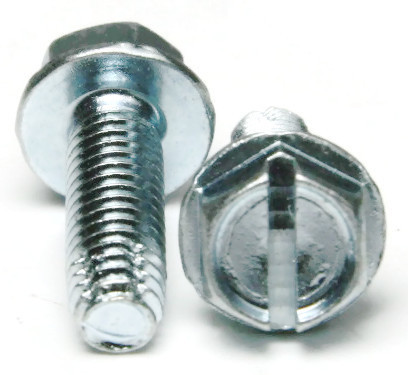

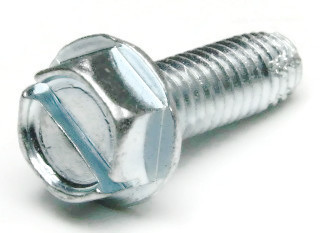

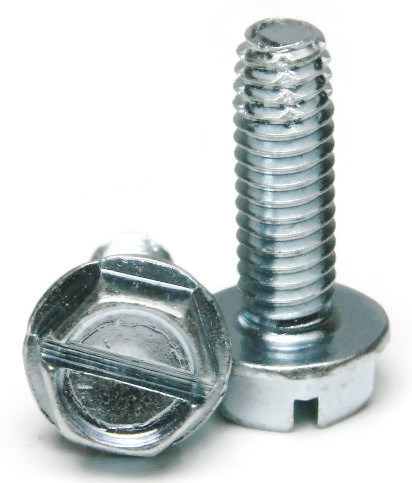

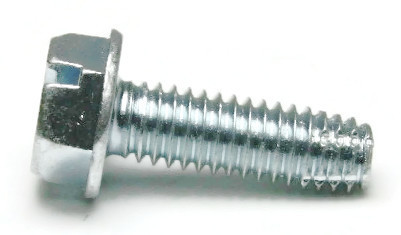

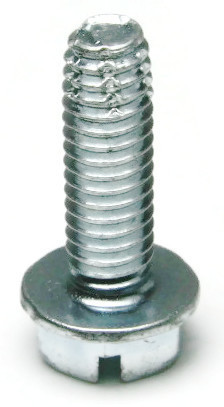

Machine Screws, Slotted Indented Hex Washer Head, Type F Thread Cutting, Zinc Plated Steel, #6-32

Machine Screws, Slotted Indented Hex Washer Head, Type F Thread Cutting, Zinc Plated Steel, #6-32

Diameter - Thread Pitch: #6-32


#6-32 Zinc plated thread cutting screws feature a thread cutting tip which makes threads in existing or pre-drilled holes.

Drill Bit Sizes for Thread Cutting Screws

  • Feature a machine screw style thread
  • Blunt tapered point with multi-cutting edges
  • Hexagonal head with a slotted drive and washer built into the head
  • Applied with a wrench of a slotted or flat screwdriver
  • Chip cavities
Zinc Plating adds a layer of corrosion resistance to plain alloy steel but is not recommended for extreme environments.


Sizes Listed As:
Diameter - Thread Pitch x Length from Underside of Head

Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size/SKU
Select Package Quantity Price
SubTotal
#6-32 x 1/4"
#6-32 x 1/4"
1 $0.07 (0.07/ea)
100 $3.00 (0.03/ea)
1000 $20.00 (0.02/ea)
Subtotal: $0.00 /
#6-32 x 3/8"
#6-32 x 3/8"
1 $0.11 (0.11/ea)
100 $7.00 (0.07/ea)
1000 $60.00 (0.06/ea)
Subtotal: $0.00 /
#6-32 x 1/2"
#6-32 x 1/2"
1 $0.07 (0.07/ea)
100 $4.00 (0.04/ea)
1000 $30.00 (0.03/ea)
Subtotal: $0.00 /
#6-32 x 5/8"
#6-32 x 5/8"
1 $0.08 (0.08/ea)
100 $5.00 (0.05/ea)
1000 $40.00 (0.04/ea)
Subtotal: $0.00 /
#6-32 x 3/4"
#6-32 x 3/4"
1 $0.09 (0.09/ea)
100 $5.00 (0.05/ea)
1000 $40.00 (0.04/ea)
Subtotal: $0.00 /
#6-32 x 1"
#6-32 x 1"
1 $0.18 (0.18/ea)
100 $7.00 (0.07/ea)
1000 $50.00 (0.05/ea)
Subtotal: $0.00 /

Frequently Used With

1 $1.03 (1.03/ea)
10 $9.80 (0.98/ea)
50 $44.00 (0.88/ea)
Subtotal: $0.00
1 $1.06 (1.06/ea)
10 $9.90 (0.99/ea)
50 $44.50 (0.89/ea)
Subtotal: $0.00
1 $1.51 (1.51/ea)
10 $10.30 (1.03/ea)
Subtotal: $0.00

Product Specifications
Color
Silver
Corrosion Resistant
Yes
Diameter
#6
Drive Style
External Hex|Hex / Slotted
Finish
Zinc Plated
Head Style
Slotted Hex Washer
Material
Steel
Overall Head Height
Max 0.093 - Min 0.080
Point Type
F
Product Type
Thread Cutting Screws
System of Measurement (Unit)
Inch
Thread Diameter
(#6) Max 0.1380 - Min 0.1312
Thread Direction
Right Hand
Thread Pitch (Count)
32 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Washer OD
Max 0.328 - Min 0.302
Washer Thickness
Max 0.025 - Min 0.015
Wrench Size
1/4"
