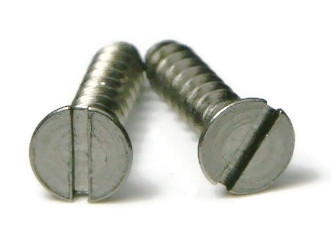

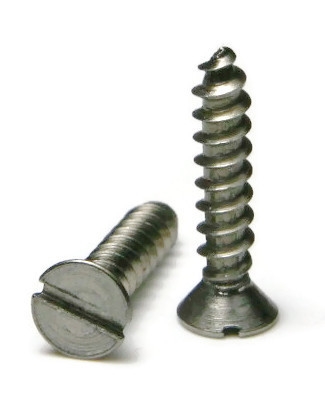

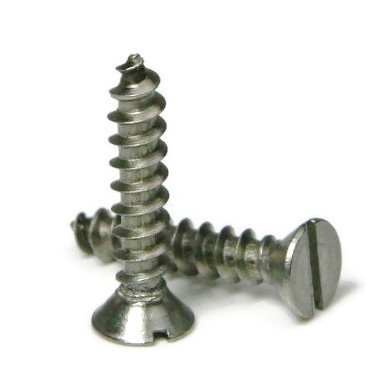

Stainless Steel Slotted Flat Head Sheet Metal Screws
Diameter - Thread Pitch: #10-12
Slotted Flat Head Sheet Metal Screws have sharp cutting threads that cut into sheet metal, plastic or wood. The shanks are threaded up to the countersink of the screw. Slotted Flat Head Sheet Metal Screws make excellent fasteners for attaching metal hardware to wood because the fully threaded shank provides good retention. The head of a Slotted Flat Head Sheet Metal Screw features a countersunk head to run flush with the application surface.
Slotted Flat Head Sheet Metal Screws in 18-8 Stainless Steel are the industry standard for corrosion resistance, and rust resistance, making these screws suitable for harsh environments.
|
Product Specifications:
|
|
Slotted Flat Head Sheet Metal Screws
|
|
Thread Diameter Major: (#10) 0.194" - 0.188"
|
|
Thread Diameter Minor: (#10) 0.133" - 0.126"
|
|
Thread Pitch: 12 Per Inch (Coarse)
|
|
Head Diameter: Max 0.385 - Min 0.340
|
Overall Head Height: Max 0.116 - Min 0.098
(From Bottom of Countersink to Top of Head)
|
|
Point Type: A
|
|
Thread Direction: Right Hand
|
|
Material: 18-8 Stainless Steel
|
Diameter x Length from Top of Head
Product Specifications may vary slightly +/- depending upon production run
within IFI Tolerances
|
