1/4"-20 Slotted Flat Head Machine Screw 18-8 Stainless Steel
Slotted Flat Head Machine Screw 18-8 Stainless Steel 1/4-20

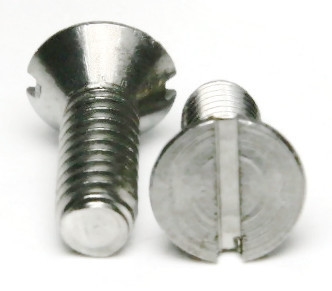

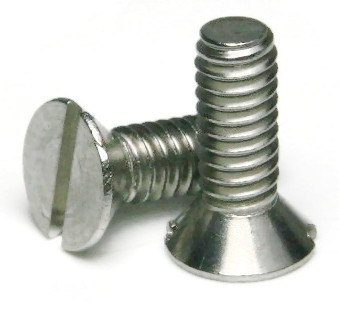

Alternative Views:

Slotted Flat Head Machine Screws - 18-8 Stainless Steel

Diameter - Thread Pitch: 1/4"-20

Slotted Flat Head Machine screws are ASME standards specific. These fasteners are installed with flat or slotted screwdriver. Flat Head Machine Screws feature a flat, countersunk head that runs flush with the installation surface. Slotted head machine screws are often used with nuts as well as driven into tapped holes. In practice, they tend to be mostly available in smaller sizes and the smaller sizes are referred to as screws, or less ambiguously as machine screws, although some kinds of machine screw can be referred to as stove bolts.

Stainless Steel Slotted Flat Head Machine Screws are corrosion and rust resistant in applications exposed to fresh water moisture, making these fasteners suitable for a durable and long lasting assembly.

Product Specifications:
Slotted Flat Head Machine Screws
Thread Diameter: (1/4") Max 0.2489 - Min 0.2408
Thread Pitch: 20 Per Inch (Coarse)
Head Diameter: Max 0.507 - Min 0.452
Overall Head Height: Max 0.153 - Min 0.131
(From Bottom of Countersink to Top of Head)
Undercut: 82 Degree
Thread Direction: Right Hand
Material: 18-8 Stainless Steel
ANSI B18.6.3
Tensile: 50,000 - 65,000 PSI
Yield: 30,000 - 50,000 PSI
Hardness: 40-75 Rockwell B
Elongation: 10% - 25%
Diameter x Thread Pitch x Length from Top of Head
Specifications may vary +/- within IFI Tolerances
Matching Products:
Knurled Thumb Nuts Hex Nuts Wing Nuts
Stainless Steel Thumb Nut Stainless Steel Hex Nut Stainless Steel Wing Nut
Screwdriver Sets Flat Washers Cap Nuts
screwdriver Stainless Steel Flat Washer Stainless Steel Cap Nut


Item# Item Name Our Price Qty Add
5400-016-0012 Slotted Flat Head Machine Screw 18-8 SS - 1/4"-20 x 1/2" Qty-1
$0.15
5400-016-0014 Slotted Flat Head Machine Screw 18-8 SS - 1/4"-20 x 1/2" Qty-25
$2.76
5400-016-0016 Slotted Flat Head Machine Screw 18-8 SS - 1/4"-20 x 1/2" Qty-100
$8.38
5400-016-0018 Slotted Flat Head Machine Screw 18-8 SS - 1/4"-20 x 1/2" Qty-250
$18.84
5400-016-0020 Slotted Flat Head Machine Screw 18-8 SS - 1/4"-20 x 1/2" Qty-1000
$66.99
5400-016-0032 Slotted Flat Head Machine Screw 18-8 SS - 1/4"-20 x 3/4" Qty-1
$0.15
5400-016-0034 Slotted Flat Head Machine Screw 18-8 SS - 1/4"-20 x 3/4" Qty-25
$3.72
5400-016-0036 Slotted Flat Head Machine Screw 18-8 SS - 1/4"-20 x 3/4" Qty-100
$11.27
5400-016-0038 Slotted Flat Head Machine Screw 18-8 SS - 1/4"-20 x 3/4" Qty-250
$25.34
5400-016-0040 Slotted Flat Head Machine Screw 18-8 SS - 1/4"-20 x 3/4" Qty-1000
$90.09
