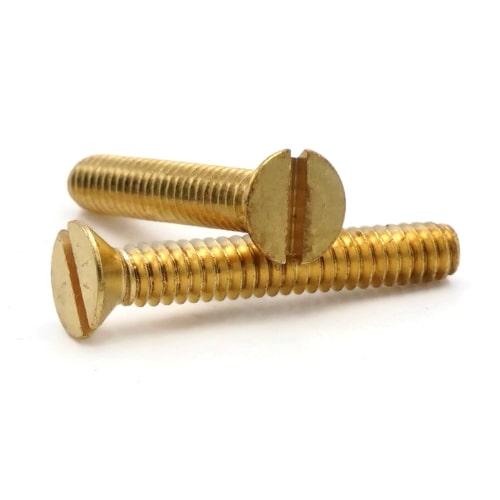

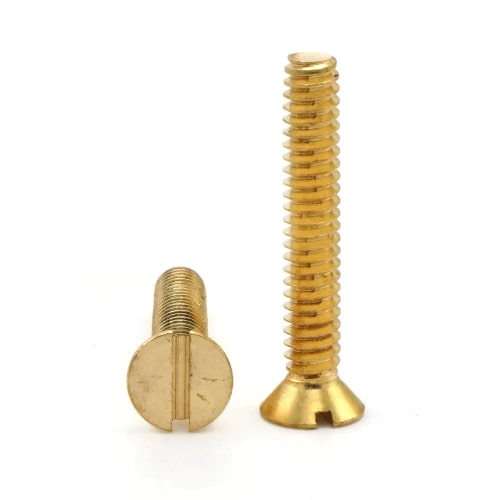

Machine Screws, Slotted Flat Head, Brass, #10-24 x 3/8"

Diameter - Thread Pitch: #10-24

Quantity	Unit price
To 99	$0.20*
To 999	$0.13*
From 1000	$0.12*

ANSI: B1.1
Color: Yellow
Color May Vary: Color and sheen may vary
Condition: New
Corrosion Resistant: Yes

Countersink: 82 Degree
Diameter: #10
Drive Style: Slotted
Head Type: Flat Head
Thread Direction: Right Hand
Thread Type: Coarse
Fit: 2A
Head Diameter: Max 0.385 - Min 0.340
Head Style: Flat
Length: 3/8"
Material: Brass
Overall Head Height: Max 0.116 - Min 0.098
Part Number: 710500896422
Product Type: Machine Screws
Size System: US
Size Type: Regular
Standards Met: ASME, ANSI B1.1
System of Measurement: Inch
Thread Direction: Right Hand
Thread Pitch: 24 Per Inch
Thread Size: #10-24
Thread Standard: UNC
Thread Type: Coarse
Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Weight: 1 lb

Toggle More

ASME Standards specific
A machine screw is commonly identified by its small size
Installed with a flat head or slotted screwdriver/bit
Countersunk head that runs flush with the application surface
Brass is very corrosion resistant but also a very soft material
Conducts electricity and heat
Commonly used for:
- Plumbing
- Carpentry
- Weather Stripping
- Trim
- Radiators
- Musical Instruments

#10-24 slotted flat head machine screws in corrosion resistant brass.
NOTE: Color and sheen may vary

SIZE/SKU	SELECT PACKAGE QUANTITY			SUBTOTAL
#10-24 x 3/8" 1013-10006-0002	1 $0.20 (0.2/ea)	100 $13.00 (0.13/ea)	1000 $120.00 (0.12/ea)	Quantity for Machine Screws, Slotted Flat Head, Brass, #10-24 x 3/8" $0.00
#10-24 x 1/2" 1013-10006-0022	1 $0.21 (0.21/ea)	100 $13.00 (0.13/ea)	1000 $120.00 (0.12/ea)	Quantity for Machine Screws, Slotted Flat Head, Brass, #10-24 x 1/2" $0.00
#10-24 x 5/8" 1013-10006-0032	1 $0.23 (0.23/ea)	100 $15.00 (0.15/ea)	1000 $140.00 (0.14/ea)	Quantity for Machine Screws, Slotted Flat Head, Brass, #10-24 x 5/8" $0.00
#10-24 x 3/4" 1013-10006-0042	1 $0.27 (0.27/ea)	100 $17.00 (0.17/ea)	1000 $160.00 (0.16/ea)	Quantity for Machine Screws, Slotted Flat Head, Brass, #10-24 x 3/4" $0.00
#10-24 x 7/8" 1013-10006-0052	1 $0.28 (0.28/ea)	100 $23.00 (0.23/ea)	1000 $210.00 (0.21/ea)	Quantity for Machine Screws, Slotted Flat Head, Brass, #10-24 x 7/8" $0.00
#10-24 x 1" 1013-10006-0062	1 $0.35 (0.35/ea)	100 $22.00 (0.22/ea)	1000 $210.00 (0.21/ea)	Quantity for Machine Screws, Slotted Flat Head, Brass, #10-24 x 1" $0.00
#10-24 x 1-1/4" 1013-10006-0072	1 $0.40 (0.4/ea)	100 $25.00 (0.25/ea)	1000 $240.00 (0.24/ea)	Quantity for Machine Screws, Slotted Flat Head, Brass, #10-24 x 1-1/4" $0.00
#10-24 x 1-1/2" 1013-10006-0082	1 $0.47 (0.47/ea)	100 $30.00 (0.3/ea)	1000 $280.00 (0.28/ea)	Quantity for Machine Screws, Slotted Flat Head, Brass, #10-24 x 1-1/2" $0.00
#10-24 x 1-3/4" 1013-10006-0092	1 $0.61 (0.61/ea)	100 $39.00 (0.39/ea)	1000 $370.00 (0.37/ea)	Quantity for Machine Screws, Slotted Flat Head, Brass, #10-24 x 1-3/4" $0.00
#10-24 x 2" 1013-10006-0102	1 $0.73 (0.73/ea)	100 $47.00 (0.47/ea)	1000 $440.00 (0.44/ea)	Quantity for Machine Screws, Slotted Flat Head, Brass, #10-24 x 2" $0.00
#10-24 x 2-1/4" 1013-10006-0112	1 $0.56 (0.56/ea)	100 $46.00 (0.46/ea)	1000 $420.00 (0.42/ea)	Quantity for Machine Screws, Slotted Flat Head, Brass, #10-24 x 2-1/4" $0.00
#10-24 x 2-1/2" 1013-10006-0122	1 $0.80 (0.8/ea)	100 $52.00 (0.52/ea)	1000 $480.00 (0.48/ea)	Quantity for Machine Screws, Slotted Flat Head, Brass, #10-24 x 2-1/2" $0.00
#10-24 x 3" 1013-10006-0132	1 $1.01 (1.01/ea)	100 $66.00 (0.66/ea)	1000 $610.00 (0.61/ea)	Quantity for Machine Screws, Slotted Flat Head, Brass, #10-24 x 3" $0.00
#10-24 x 3-1/2" 1013-10006-0142	1 $2.32 (2.32/ea)	100 $192.00 (1.92/ea)	1000 $1,740.00 (1.74/ea)	Quantity for Machine Screws, Slotted Flat Head, Brass, #10-24 x 3-1/2" $0.00
#10-24 x 4" 1013-10006-0152	1 $3.02 (3.02/ea)	100 $199.00 (1.99/ea)	1000 $1,840.00 (1.84/ea)	Quantity for Machine Screws, Slotted Flat Head, Brass, #10-24 x 4" $0.00
