Machine Screws, Slotted Flat Head, Silicon Bronze, 3/8"-16 x 1"

Diameter - Thread Pitch: 3/8"-16

Alloy 651 Silicon Bronze for excellent corrosion resistance
ASME Standards specific
Countersunk head that runs flush with application surface
Used in marine, corrosive and high heat environments
Often used in plumbing and electrical applications

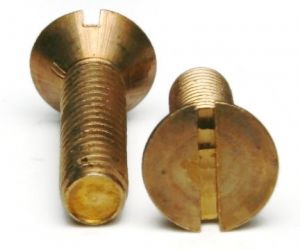

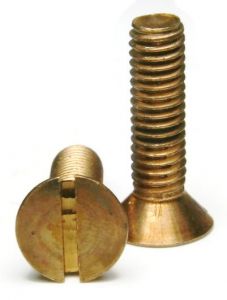

3/8"-16 Slotted flat head machine screws made of silicon bronze.
NOTE: Color and sheen may vary

Product number: 5900-020-0012

Print this page

Specifications

ANSI: B18.6.3
Color: Bronze
Color May Vary: Color and sheen may vary
Condition: New
Corrosion Resistant: Yes
Countersink: 82 Degree
Diameter: 3/8"
Drive Style: Slotted
Head Type: Flat Head
Thread Direction: Right Hand
Thread Type: Coarse
Fit: 2A
Head Diameter: Max 0.762 - Min 0.685
Head Style: Flat
Length: 1"
Marine Grade: Yes
Material: Silicon Bronze
Overall Head Height: Max 0.230 - Min 0.200
Part Number: 720572175691
Product Type: Machine Screws
Size System: US
Size Type: Regular
Standards Met: ANSI B18.6.3
System of Measurement: Inch
Thread Diameter: (3/8") Max 0.3737 - Min 0.3643
Thread Direction: Right Hand
Thread Pitch: 16 Per Inch
Thread Size: 3/8"-16
Thread Standard: UNC
Thread Type: Coarse
Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Weight: 1 lb

Hex Finish Nuts, Silicon Bronze, 3/8"-16 (9/16" Flats x 21/64" Thick)

Volume Pricing*

$0.82

($0.82/ea)

100

$49.00

($0.49/ea)

1000

$480.00

($0.48/ea)

$0.00

Flat Washers, Silicon Bronze, 3/8"-S (0.392 x 0.875 x .062)

Volume Pricing*

$0.80

($0.80/ea)

100

$50.00

($0.50/ea)

1000

$460.00

($0.46/ea)

$0.00

Flat Washers, Silicon Bronze, 3/8"-L (0.392 x 1.000 x .062)

Volume Pricing*

$0.81

($0.81/ea)

100

$51.00

($0.51/ea)

1000

$470.00

($0.47/ea)

$0.00

Lock Washers, Split Ring, Silicon Bronze, 3/8 (.377 x .680 x .094)

Volume Pricing*

$0.40

($0.40/ea)

100

$25.00

($0.25/ea)

1000

$230.00

($0.23/ea)

$0.00

Select Size/SKU & Quantity

10 Available Sizes

SIZE/SKU	Review Volume Pricing*	Enter Any Qty
3/8"-16 x 3/4" 5900-020-0002	1 $4.02 ($4.02/ea) 100 $329.00 ($3.29/ea) 1000 $3,030.00 ($3.03/ea)	Quantity for Machine Screws, Slotted Flat Head, Silicon Bronze, 3/8"-16 x 3/4" $0.00
3/8"-16 x 1" 5900-020-0012	1 $2.89 ($2.89/ea) 100 $235.00 ($2.35/ea) 1000 $2,160.00 ($2.16/ea)	Quantity for Machine Screws, Slotted Flat Head, Silicon Bronze, 3/8"-16 x 1" $0.00
3/8"-16 x 1-1/4" 5900-020-0022	1 $3.05 ($3.05/ea) 100 $250.00 ($2.50/ea) 1000 $2,300.00 ($2.30/ea)	Quantity for Machine Screws, Slotted Flat Head, Silicon Bronze, 3/8"-16 x 1-1/4" $0.00
3/8"-16 x 1-1/2" 5900-020-0024	1 $3.50 ($3.50/ea) 100 $300.00 ($3.00/ea) 1000 $2,750.00 ($2.75/ea)	Quantity for Machine Screws, Slotted Flat Head, Silicon Bronze, 3/8"-16" x 1-1/2" $0.00
3/8"-16 x 2" 5900-020-0032	1 $3.64 ($3.64/ea) 100 $293.00 ($2.93/ea) 1000 $2,700.00 ($2.70/ea)	Quantity for Machine Screws, Slotted Flat Head, Silicon Bronze, 3/8"-16 x 2" $0.00
3/8"-16 x 2-1/2" 5900-020-0042	1 $6.20 ($6.20/ea) 100 $568.00 ($5.68/ea) 1000 $5,160.00 ($5.16/ea)	Quantity for Machine Screws, Slotted Flat Head, Silicon Bronze, 3/8"-16 x 2-1/2" $0.00
3/8"-16 x 3" 5900-020-0052	1 $5.37 ($5.37/ea) 100 $440.00 ($4.40/ea) 1000 $4,050.00 ($4.05/ea)	Quantity for Machine Screws, Slotted Flat Head, Silicon Bronze, 3/8"-16 x 3" $0.00
3/8"-16 x 3-1/2" 5900-020-0062	1 $6.37 ($6.37/ea) 100 $514.00 ($5.14/ea) 1000 $4,730.00 ($4.73/ea)	Quantity for Machine Screws, Slotted Flat Head, Silicon Bronze, 3/8"-16 x 3-1/2" $0.00
3/8"-16 x 4" 5900-020-0072	1 $8.03 ($8.03/ea) 100 $657.00 ($6.57/ea) 1000 $6,040.00 ($6.04/ea)	Quantity for Machine Screws, Slotted Flat Head, Silicon Bronze, 3/8"-16 x 4" $0.00
3/8"-16 x 7" 5900-020-0082	1 $37.89 ($37.89/ea) 100 $2,576.00 ($25.76/ea) 1000 $23,700.00 ($23.70/ea)	Quantity for Machine Screws, Slotted Flat Head, Silicon Bronze, 3/8"-16 x 7" $0.00

*Volume pricing available on select products. Products without quantity breaks are priced per unit.

Page Total: $0.00
