#10-32 Slotted Flat Head Machine Screw Silicon Bronze

#10-32 Silicon Bronze Slotted Flat Head Machine Screws

Diameter - Thread Pitch: #10-32


  • Alloy 651 Silicon Bronze for excellent corrosion resistance
  • ASME Standards specific
  • A machine screw is commonly identified by its small size
  • Countersunk head that runs flush with application surface
  • Used in marine, corrosive and high heat environments
  • Often used in plumbing and electrical applications

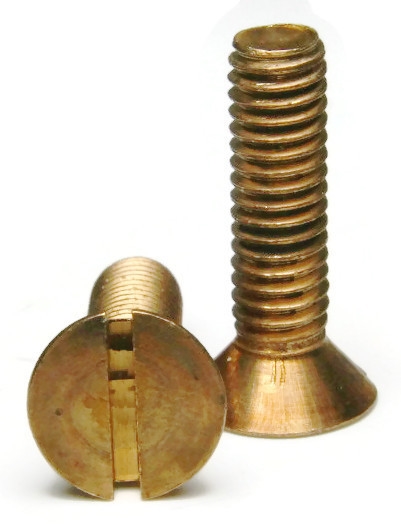

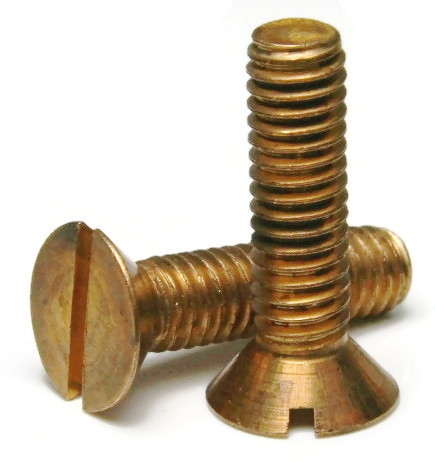

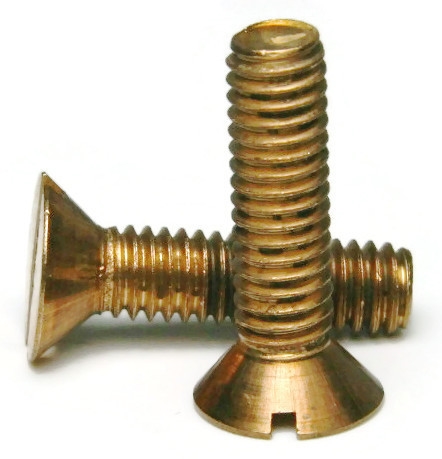

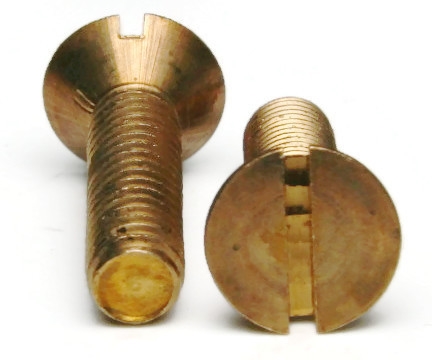

#10-32 Slotted flat head machine screws made of silicon bronze.
NOTE: Color and sheen may vary

Note: All Silicon Bronze products will develop a patina based on the environment and time. These fasteners are not coated with any sealants to prevent a patina from forming. Depending on when the product was manufactured, you may receive a product that has started to develop a patina.

Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Slotted Flat Head Machine Screw Silicon Bronze - #10-32 x 3/8"
SKU #5900-014-0002
Slotted Flat Head Machine Screw Silicon Bronze - #10-32 x 3/8"
SKU #5900-014-0002
1
NA
25
$10.50 (0.42/ea)
100
$40.00 (0.4/ea)
1000
$370.00 (0.37/ea)
Subtotal: $0.00 /
Slotted Flat Head Machine Screw Silicon Bronze - #10-32 x 1/2"
SKU #5900-014-0012
Slotted Flat Head Machine Screw Silicon Bronze - #10-32 x 1/2"
SKU #5900-014-0012
1
$0.74 (0.74/ea)
25
$18.25 (0.73/ea)
100
$43.00 (0.43/ea)
1000
$400.00 (0.4/ea)
Subtotal: $0.00 /
Slotted Flat Head Machine Screw Silicon Bronze - #10-32 x 5/8"
SKU #5900-014-0022
Slotted Flat Head Machine Screw Silicon Bronze - #10-32 x 5/8"
SKU #5900-014-0022
1
$0.77 (0.77/ea)
25
$18.50 (0.74/ea)
100
$45.00 (0.45/ea)
1000
$430.00 (0.43/ea)
Subtotal: $0.00 /
Slotted Flat Head Machine Screw Silicon Bronze - #10-32 x 3/4"
SKU #5900-014-0032
Slotted Flat Head Machine Screw Silicon Bronze - #10-32 x 3/4"
SKU #5900-014-0032
1
$0.78 (0.78/ea)
25
$18.75 (0.75/ea)
100
$51.00 (0.51/ea)
1000
$470.00 (0.47/ea)
Subtotal: $0.00 /
Slotted Flat Head Machine Screw Silicon Bronze - #10-32 x 1"
SKU #5900-014-0042
Slotted Flat Head Machine Screw Silicon Bronze - #10-32 x 1"
SKU #5900-014-0042
1
$0.85 (0.85/ea)
25
$20.25 (0.81/ea)
100
$52.00 (0.52/ea)
1000
$480.00 (0.48/ea)
Subtotal: $0.00 /
Slotted Flat Head Machine Screw Silicon Bronze - #10-32 x 1-1/4"
SKU #5900-014-0052
Slotted Flat Head Machine Screw Silicon Bronze - #10-32 x 1-1/4"
SKU #5900-014-0052
1
$0.86 (0.86/ea)
25
$21.25 (0.85/ea)
100
$63.00 (0.63/ea)
1000
$580.00 (0.58/ea)
Subtotal: $0.00 /
Slotted Flat Head Machine Screw Silicon Bronze - #10-32 x 1-1/2"
SKU #5900-014-0062
Slotted Flat Head Machine Screw Silicon Bronze - #10-32 x 1-1/2"
SKU #5900-014-0062
1
$0.85 (0.85/ea)
25
$20.75 (0.83/ea)
100
$74.00 (0.74/ea)
1000
$690.00 (0.69/ea)
Subtotal: $0.00 /
Slotted Flat Head Machine Screw Silicon Bronze - #10-32 x 1-3/4"
SKU #5900-014-0072
Slotted Flat Head Machine Screw Silicon Bronze - #10-32 x 1-3/4"
SKU #5900-014-0072
1
$1.11 (1.11/ea)
25
$27.00 (1.08/ea)
100
$88.00 (0.88/ea)
1000
$810.00 (0.81/ea)
Subtotal: $0.00 /
Slotted Flat Head Machine Screw Silicon Bronze - #10-32 x 2"
SKU #5900-014-0082
Slotted Flat Head Machine Screw Silicon Bronze - #10-32 x 2"
SKU #5900-014-0082
1
$1.51 (1.51/ea)
25
$36.25 (1.45/ea)
100
$78.00 (0.78/ea)
1000
$760.00 (0.76/ea)
Subtotal: $0.00 /



FREQUENTLY USED WITH

1
$1.84 (1.84/ea)
10
$15.60 (1.56/ea)
25
$35.25 (1.41/ea)
50
$64.50 (1.29/ea)
Subtotal: $0.00 /
1
$1.84 (1.84/ea)
10
$15.60 (1.56/ea)
25
$35.25 (1.41/ea)
50
$64.50 (1.29/ea)
Subtotal: $0.00 /
1
NA
25
$7.75 (0.31/ea)
100
$20.00 (0.2/ea)
1000
$190.00 (0.19/ea)
Subtotal: $0.00 /
1
NA
25
$5.50 (0.22/ea)
100
$16.00 (0.16/ea)
1000
$140.00 (0.14/ea)
Subtotal: $0.00 /

Product Specifications
ANSI
B18.6.3
Color
Bronze
Color May Vary
Color and sheen may vary
Corrosion Resistant
Yes
Countersink
82 Degree
Diameter
#10
Drive Style
Slotted
Head Diameter
Max 0.385 - Min 0.340
Head Style
Flat
Marine Grade
Yes
Material
Silicon Bronze
Overall Head Height
Max 0.116 - Min 0.098�
Product Type
Machine Screws
Standards Met
ANSI B18.6.3
System of Measurement (Unit)
Inch
Thread Diameter
(#10) Max 0.1890 - Min 0.1818
Thread Direction
Right Hand
Thread Pitch (Count)
32 Per Inch
Thread Standard
UNF
Thread Type
Fine
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
