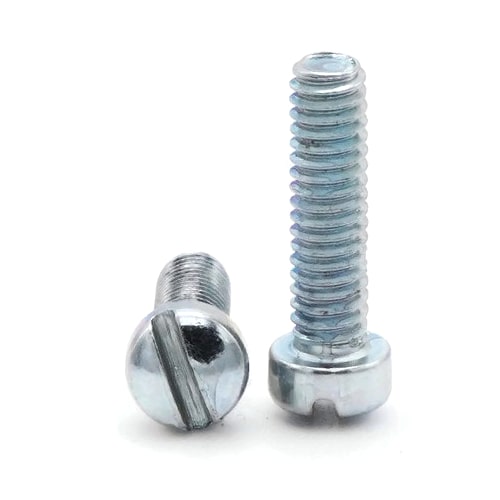

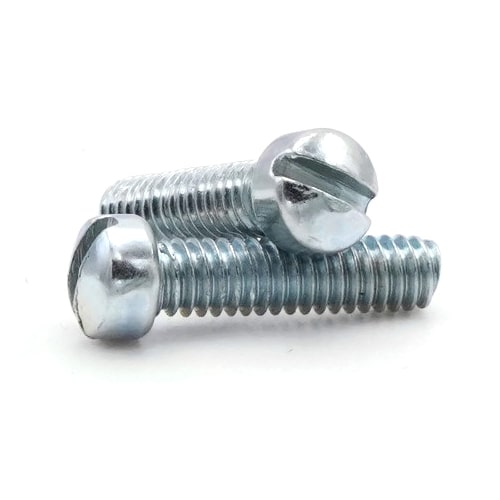

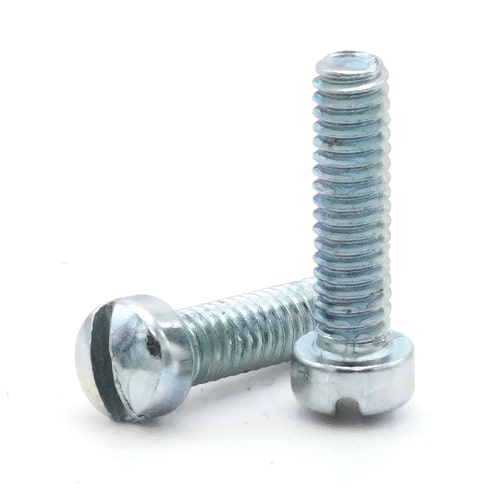

#8-32 Slotted Fillister Head Machine Screw Zinc Plated Steel

#8-32 Zinc Plated Steel Slotted Fillister Head Machine Screws

Diameter - Thread Pitch: #8-32

  • Large over-sized head
  • Slotted drive
  • A machine screw is commonly identified by its small size
  • Metal to metal
  • Preferred head type for counterbored holes
  • Zinc plated steel adds a layer of corrosion resistance to plain alloy steel

#8-32 Slotted drive fillister head machine screws are available in zinc plated steel.
REACH and RoHS Compliant

Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Slotted Fillister Head Machine Screw Zinc - #8-32 x 5/8"
SKU #8308-002-0002
Slotted Fillister Head Machine Screw Zinc - #8-32 x 5/8"
SKU #8308-002-0002
1
 NA
25
 $2.75 (0.11/ea)
100
 $7.00 (0.07/ea)
1000
 $30.00 (0.03/ea)
Subtotal: $0.00 /

Frequently Used With

Slotted Power Bits - #6-8 x 2"
Slotted Power Bits - #6-8 x 2" 1050-806-0052
Slotted Power Bits - #6-8 x 2
1
 $1.53 (1.53/ea)
10
 $12.90 (1.29/ea)
25
 $29.00 (1.16/ea)
50
 $52.50 (1.05/ea)
Subtotal: $0.00 /
Slotted Power Bits - #8-10 x 2"
Slotted Power Bits - #8-10 x 2" 1050-806-0062
Slotted Power Bits - #8-10 x 2
1
 $1.84 (1.84/ea)
10
 $15.60 (1.56/ea)
25
 $35.25 (1.41/ea)
50
 $64.50 (1.29/ea)
Subtotal: $0.00 /
Hex Machine Nuts Zinc - #8-32 UNC x 11/32" F x 1/8" H
Hex Machine Nuts Zinc - #8-32 UNC x 11/32" F x 1/8" H 1102-123-0112
Hex Machine Nuts Zinc - #8-32 UNC x 11/32
1
 NA
25
 $1.50 (0.06/ea)
100
 $3.00 (0.03/ea)
1000
 $20.00 (0.02/ea)
Subtotal: $0.00 /
Flat Washers Zinc SAE - #8 (ID 0.188 x OD 0.438 x THK 0.064)
Flat Washers Zinc SAE - #8 (ID 0.188 x OD 0.438 x THK 0.064) 1102-006-0052
Flat Washers Zinc SAE - #8 (ID 0.188 x OD 0.438 x THK 0.064)
1
 NA
25
 $1.50 (0.06/ea)
100
 $2.00 (0.02/ea)
1000
 $10.00 (0.01/ea)
Subtotal: $0.00 /
Product Specifications
Color
Silver
Corrosion Resistant
Yes
Diameter
#8
Drive Style
Slotted
Finish
Zinc Plated
Head Diameter
Max 0.270 - Min 0.250
Head Height Max
0.156
Head Style
Fillister
Material
Steel
Overall Head Height
Max 0.156 - Min 0.133
Product Type
Machine Screws
System of Measurement (Unit)
Inch
Thread Direction
Right Hand
Thread Pitch (Count)
32 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
