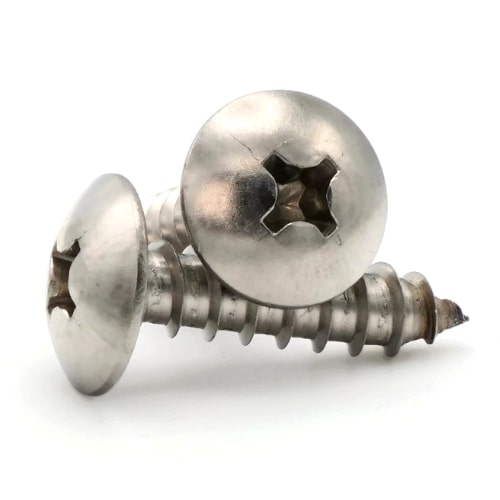

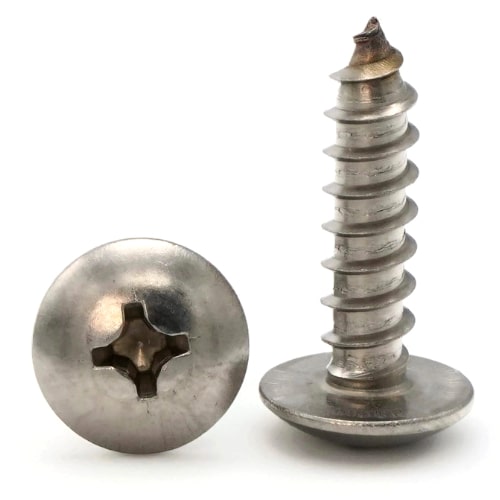

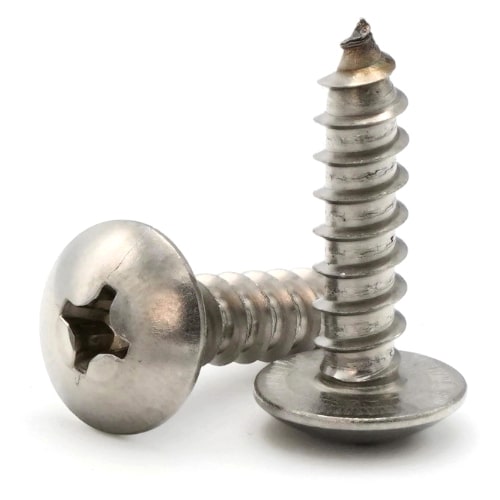

#6-18 Phillips Truss Head Sheet Metal Screws 18-8 Stainless Steel

#6-18 Stainless Steel Phillips Truss Head Sheet Metal Screws

Diameter - Thread Pitch: #6-18

  • #6-18
  • Sharp cutting threads that cut into material for better retention
  • Fully Threaded
  • Excellent for attaching metal hardware to wood
  • 18-8 Stainless steel Phillips truss head sheet metal screws are corrosion resistant
  • Suitable for fresh water moisture environments
  • Most commonly used for:
    • Sheet Metal
    • Wood
    • Plastic
  • Sizes listed below as: Diameter - Thread Pitch
Type A Sheet Metal Screw Thread Specifications
Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Phillips Truss Head Sheet Metal Screws 18-8 SS - #6 x 1/4"
SKU #3530002
Phillips Truss Head Sheet Metal Screws 18-8 SS - #6 x 1/4"
SKU #3530002
1
 $0.07 (0.07/ea)
100
 $5.00 (0.05/ea)
1000
 $40.00 (0.04/ea)
Subtotal: $0.00 /
Phillips Truss Head Sheet Metal Screws 18-8 SS - #6 x 5/16"
SKU #3530012
Phillips Truss Head Sheet Metal Screws 18-8 SS - #6 x 5/16"
SKU #3530012
1
 $0.07 (0.07/ea)
100
 $5.00 (0.05/ea)
1000
 $40.00 (0.04/ea)
Subtotal: $0.00 /
Phillips Truss Head Sheet Metal Screws 18-8 SS - #6 x 3/8"
SKU #3530022
Phillips Truss Head Sheet Metal Screws 18-8 SS - #6 x 3/8"
SKU #3530022
1
 $0.07 (0.07/ea)
100
 $5.00 (0.05/ea)
1000
 $40.00 (0.04/ea)
Subtotal: $0.00 /
Phillips Truss Head Sheet Metal Screws 18-8 SS - #6 x 7/16"
SKU #3530032
Phillips Truss Head Sheet Metal Screws 18-8 SS - #6 x 7/16"
SKU #3530032
1
 $0.08 (0.08/ea)
100
 $7.00 (0.07/ea)
1000
 $60.00 (0.06/ea)
Subtotal: $0.00 /
Phillips Truss Head Sheet Metal Screws 18-8 SS - #6 x 1/2"
SKU #3530042
Phillips Truss Head Sheet Metal Screws 18-8 SS - #6 x 1/2"
SKU #3530042
1
 $0.07 (0.07/ea)
100
 $5.00 (0.05/ea)
1000
 $40.00 (0.04/ea)
Subtotal: $0.00 /
Phillips Truss Head Sheet Metal Screws 18-8 SS - #6 x 5/8"
SKU #3530052
Phillips Truss Head Sheet Metal Screws 18-8 SS - #6 x 5/8"
SKU #3530052
1
 $0.08 (0.08/ea)
100
 $5.00 (0.05/ea)
1000
 $40.00 (0.04/ea)
Subtotal: $0.00 /
Phillips Truss Head Sheet Metal Screws 18-8 SS - #6 x 3/4"
SKU #3530062
Phillips Truss Head Sheet Metal Screws 18-8 SS - #6 x 3/4"
SKU #3530062
1
 $0.08 (0.08/ea)
100
 $5.00 (0.05/ea)
1000
 $40.00 (0.04/ea)
Subtotal: $0.00 /
Phillips Truss Head Sheet Metal Screws 18-8 SS - #6 x 7/8"
SKU #3530072
Phillips Truss Head Sheet Metal Screws 18-8 SS - #6 x 7/8"
SKU #3530072
1
 $0.08 (0.08/ea)
100
 $5.00 (0.05/ea)
1000
 $40.00 (0.04/ea)
Subtotal: $0.00 /
Phillips Truss Head Sheet Metal Screws 18-8 SS - #6 x 1"
SKU #3530082
Phillips Truss Head Sheet Metal Screws 18-8 SS - #6 x 1"
SKU #3530082
1
 $0.10 (0.1/ea)
100
 $6.00 (0.06/ea)
1000
 $50.00 (0.05/ea)
Subtotal: $0.00 /
Phillips Truss Head Sheet Metal Screws 18-8 SS - #6 x 1-1/4"
SKU #3530092
Phillips Truss Head Sheet Metal Screws 18-8 SS - #6 x 1-1/4"
SKU #3530092
1
 $0.12 (0.12/ea)
100
 $8.00 (0.08/ea)
1000
 $70.00 (0.07/ea)
Subtotal: $0.00 /
Phillips Truss Head Sheet Metal Screws 18-8 SS - #6 x 1-1/2"
SKU #3530102
Phillips Truss Head Sheet Metal Screws 18-8 SS - #6 x 1-1/2"
SKU #3530102
1
 $0.15 (0.15/ea)
100
 $9.00 (0.09/ea)
1000
 $80.00 (0.08/ea)
Subtotal: $0.00 /



FREQUENTLY USED WITH

Phillips Power Bits - #2 - Length 2"
Phillips Power Bits - #2 - Length 2" 1050-500-0016
Phillips Power Bits - #2 - Length 2
1
 $1.04 (1.04/ea)
10
 $8.10 (0.81/ea)
50
 $38.00 (0.76/ea)
Subtotal: $0.00 /
ACR Phillips Power Bits - #2 x 2"
ACR Phillips Power Bits - #2 x 2" 1050-802-0022
ACR Phillips Power Bits - #2 x 2
1
 $1.06 (1.06/ea)
10
 $10.00 (1/ea)
50
 $48.00 (0.96/ea)
Subtotal: $0.00 /
Product Specifications
ANSI
ANSI B18.6.4
Color
Silver
Corrosion Resistant
Yes
Diameter
#6
Drive Style
Phillips
Elongation
30%
Grade
18-8
Hardness
100 Rockwell B
Head Diameter
Max 0.321 - Min 0.303
Head Height Max
0.086
Head Style
Truss
Material
Stainless Steel
Overall Head Height
Max 0.086 - Min 0.074
Phillips Drive
#2
Point Type
A
Product Type
Sheet Metal Screws
Reduction
40%
Standards Met
ANSI B18.6.4
System of Measurement (Unit)
Inch
Tensile PSI
100,000 - 125,000 PSI
Thread Diameter Major
(#6) 0.141" - 0.136"
Thread Diameter Minor
(#6) 0.102" - 0.096"
Thread Direction
Right Hand
Thread Pitch (Count)
18 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Yield PSI
55,000 - 75,000 PSI
