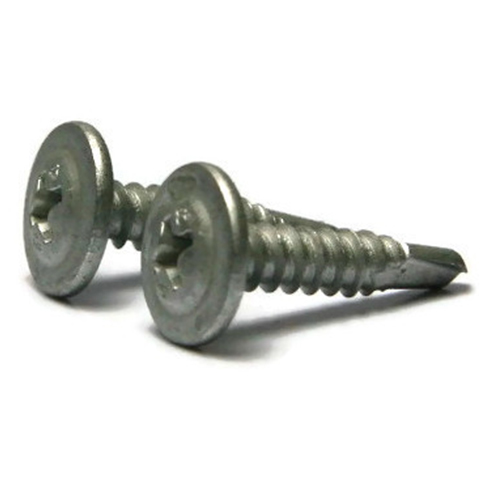

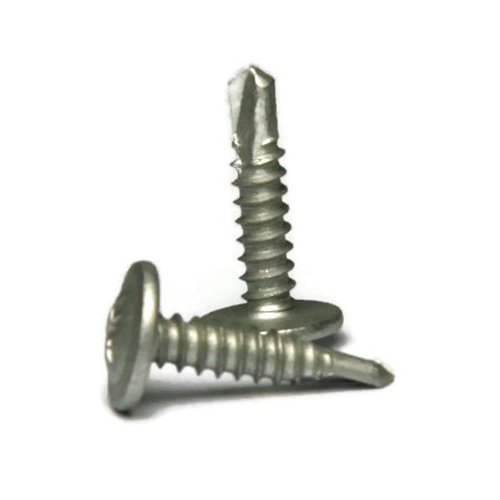

Sheet Metal Screws, Phillips Modified Truss Head, SD TEK 3, Stainless Steel 410, #10 x 3/4"
Diameter: #10
| Quantity | Unit price |
|---|---|
| To 99 |
$0.25*
|
| To 999 |
$0.20*
|
| From 1000 |
$0.15*
|
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: #10
- Drive Style: Phillips
- Elongation: 30%
- Head Type: Modified Truss Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Grade: 410
- Head Height: Max 0.098 - Min 0.079
- Head Diameter: Max 0.446 - Min
- Head Style: Modified Truss
- Length: 3/4"
- Material: Stainless Steel
- Overall Head Height: Max 0.441 - Min 0.425
- Part Number: 62110-012
- Phillips Drive: #2
- Point Type: TEK 3
- Product Type: Self Drilling Screws
- Size System: US
- Size Type: Regular
- System of Measurement: Inch
- TEK Self Drilling Point: TEK 3
- Thread Diameter Major: #10 (0.189")
- Thread Diameter Minor: #10 (0.141")
- Thread Direction: Right Hand
- Thread Pitch: 16 Per Inch
- Thread Size: #10-16
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Truss Height: Max 0.098 - Min
- Weight: 1 lb
- #10
- Self drilling (TEK) point
- 100 Degree undercut
- Creates a larger area beneath the screw's head for a larger bearing surface
- 410 Stainless steel phillps modified truss head self drilling screws are hardened and corrosion resistant
- 410 Stainless steel is harder than other variations of stainless steel making it easier to drill into materials
- Sizes listed below as: Diameter x Length
Product number:
62110-012-0002
