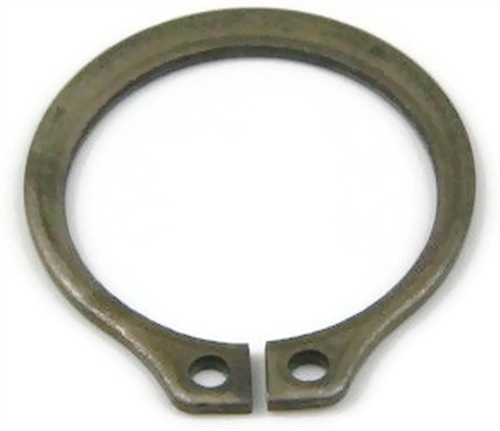

SH-62SS 5/8" External Retaining Ring - Stainless Steel

SH-62SS Stainless Steel Snap Rings

Fits Shaft Diameter: 5/8"


  • Commonly referred to as a retaining ring, snap ring, or c-clip
  • Axially Installed
  • A portion of these retaining rings protrude from the groove in order to create a shoulder to keep an assembly
  • Made of corrosion resistant stainless steel
  • Passivated Finish
5/8" External retaining rings are designed to be installed into a groove on a shaft. USA Made Retaining Rings

USA MADE

Note: Due to the stamp-mold process, the retaining rings may be slightly magnetic


Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
SH-62SS 5/8" External Retaining Ring - Stainless Steel
SKU #819032-0002
SH-62SS 5/8" External Retaining Ring - Stainless Steel
SKU #819032-0002
1
$0.64 (0.64/ea)
100
$52.00 (0.52/ea)
1000
$480.00 (0.48/ea)
Subtotal: $0.00 /




Product Specifications
Additional Sizing Info
Diameter, Width, Depth, and Free Diameter refer to Groove Size
Color
Silver
Corrosion Resistant
Yes
Depth
0.018"
Diameter
0.588"
Finish
Passivated
Fits Shaft Diameter
(0.625", 5/8", 15.9mm)
Free Diameter
0.579"
Grade
15-7
Manufacturer Part Number
SH-62SS
Material
Stainless Steel
Product Type
Retaining Rings
System of Measurement (Unit)
Inch/Millimeter
Thickness
0.035"
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
USA Made
Yes
Width
0.039"
