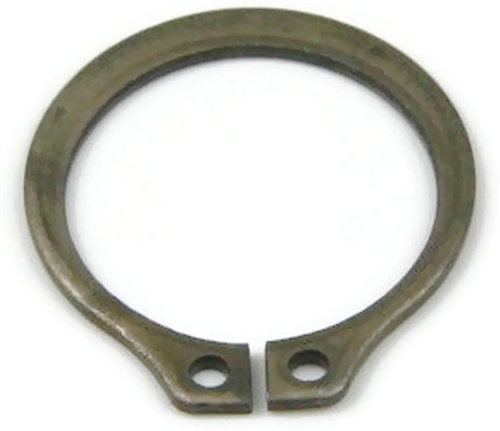

SH-175SS 1-3/4" External Retaining Ring, Stainless Steel
Fits Shaft Diameter: 1-3/4"
| Quantity | Unit price |
|---|---|
| To 99 |
$3.88*
|
| To 999 |
$3.05*
|
| From 1000 |
$2.91*
|
- Brand: Rotor Clip
- Additional Sizing Info: Diameter, Width, Depth, and Free Diameter refer to Groove Size
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Depth: 0.050"
- Diameter: 1.650"
- Finish: Phosphate
- Fits Shaft Diameter: (1.750", 1-3/4", 44.4mm)
- Free Diameter: 1.618"
- Grade: 15-7
- Manufacturer Part Number: SH-175SS
- Material: Carbon Steel
- Part Number: 661291578670
- Product Type: Retaining Rings
- Size System: US
- Size Type: Regular
- System of Measurement: Inch/Millimeter
- Thickness: 0.062"
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- USA Made: Yes
- Weight: 1 lb
- Width: 0.068"
- Commonly referred to as a retaining ring, snap ring, or c-clip
- A portion of these retaining rings protrude from the groove in order to create a shoulder to keep an assembly
- Axially Installed
- Made of corrosion resistant stainless steel
- Passivated Finish
USA MADE
Note: Due to the stamp-mold process, the retaining rings may be slightly magnetic
Product number:
819082-0001
