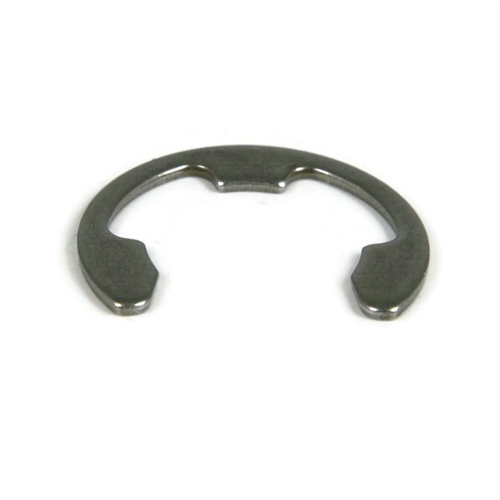

SE-17SS 11/64" External Retaining Ring - Stainless Steel

SE-17SS Stainless Steel E Snap Rings

Fits Shaft Diameter: 11/64"

  • Commonly referred to as a retaining ring, snap ring, or c-clip
  • The most popular and widely used style of radial snap ring
  • Called "E" rings because of the three prongs on the inside of the ring
  • These rings make contact with the bottom of a groove on a shaft to create a shoulder for effective assembly retention
11/64" External SE models have a smaller free diameter than standard 'E' snap rings of the same size, thus making them a lighter product. USA Made Retaining Rings

USA MADE FASTENER

Note: Due to the stamp-mold process, the retaining rings may be slightly magnetic

This item qualifies for FREE SHIPPING on orders $250+
Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
SE-17SS 11/64" External Retaining Ring - Stainless Steel
SKU #816110-0002
SE-17SS 11/64" External Retaining Ring - Stainless Steel
SKU #816110-0002
1
 NA
25
 $4.25 (0.17/ea)
100
 $15.00 (0.15/ea)
1000
 $130.00 (0.13/ea)
Subtotal: $0.00 /

Frequently Used With

RP-200 External Standard Pliers - 1/4" - 43/64" Ring Size
RP-200 External Standard Pliers - 1/4" - 43/64" Ring Size 1050-044
RP-200 External Standard Pliers - 1/4
RP-200 External Standard Snap Ring Pliers
Installation & Removal Tool for 1/4" to 43/64" Ring Size Retaining Rings

Our Price: $27.75
Subtotal: $0.00 /
Product Specifications
Additional Sizing Info
Diameter, Width, Depth, and Free Diameter refer to Groove Size
Color
Silver
Corrosion Resistant
Yes
Depth
0.022"
Diameter
0.127"
Finish
Passivated
Fits Shaft Diameter
(0.172", 11/64", 4.4mm)
Free Diameter
0.125"
Grade
15-7
Manufacturer Part Number
SE-17SS
Material
Stainless Steel
Product Type
Retaining Rings
System of Measurement (Unit)
Inch/Millimeter
Thickness
0.025"
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
USA Made
Yes
Width
0.029"
