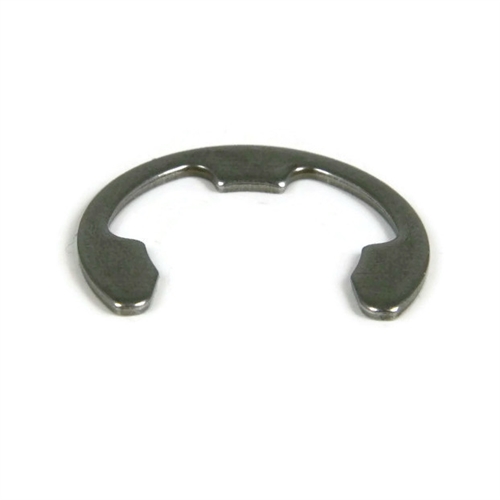

SE-15SS 5/32" External Retaining Ring - Stainless Steel

SE-15SS Stainless Steel E Snap Rings

Fits Shaft Diameter: 5/32"


  • Commonly referred to as a retaining ring, snap ring, or c-clip
  • The most popular and widely used style of radial snap ring
  • Called "E" rings because of the three prongs on the inside of the ring
  • These rings make contact with the bottom of a groove on a shaft to create a shoulder for effective assembly retention
5/32" External SE models have a smaller free diameter than standard 'E' snap rings of the same size, thus making them a lighter product. USA Made Retaining Rings

USA MADE FASTENER

Note: Due to the stamp-mold process, the retaining rings may be slightly magnetic


Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
SE-15SS 5/32" External Retaining Ring - Stainless Steel
SKU #816108-0002
SE-15SS 5/32" External Retaining Ring - Stainless Steel
SKU #816108-0002
1
NA
25
$6.50 (0.26/ea)
100
$23.00 (0.23/ea)
1000
$210.00 (0.21/ea)
Subtotal: $0.00 /




Product Specifications
Additional Sizing Info
Diameter, Width, Depth, and Free Diameter refer to Groove Size
Color
Silver
Corrosion Resistant
Yes
Depth
0.019"
Diameter
0.118"
Finish
Passivated
Fits Shaft Diameter
(0.156", 5/32", 4.0mm)
Free Diameter
0.116"
Grade
15-7
Manufacturer Part Number
SE-15SS
Material
Stainless Steel
Product Type
Retaining Rings
System of Measurement (Unit)
Inch/Millimeter
Thickness
0.042"
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
USA Made
Yes
Width
0.046"
