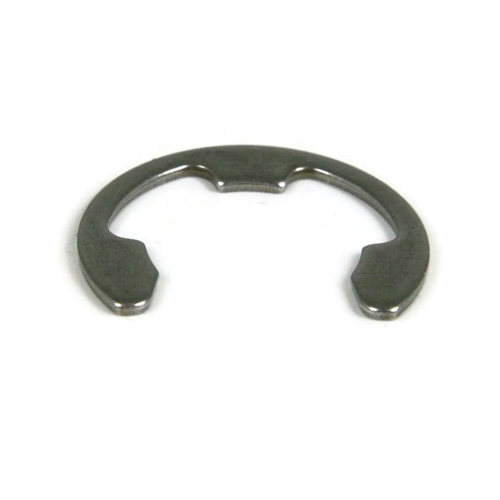

SE-137SS 1-3/8" External Retaining Ring - Stainless Steel

SE-137SS Stainless Steel E Snap Rings

Fits Shaft Diameter: 1-3/8"


  • Commonly referred to as a retaining ring, snap ring, or c-clip
  • The most popular and widely used style of radial snap ring
  • Called "E" rings because of the three prongs on the inside of the ring
  • These rings make contact with the bottom of a groove on a shaft to create a shoulder for effective assembly retention
1-3/8" External SE models have a smaller free diameter than standard 'E' snap rings of the same size, thus making them a lighter product. USA Made Retaining Rings

USA MADE FASTENER

Note: Due to the stamp-mold process, the retaining rings may be slightly magnetic


Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
SE-137SS 1-3/8" External Retaining Ring - Stainless Steel
SKU #816128-0002
SE-137SS 1-3/8" External Retaining Ring - Stainless Steel
SKU #816128-0002
1
$4.24 (4.24/ea)
100
$366.00 (3.66/ea)
1000
$3,360.00 (3.36/ea)
Subtotal: $0.00 /

Product Specifications
Additional Sizing Info
Diameter, Width, Depth, and Free Diameter refer to Groove Size
Color
Silver
Corrosion Resistant
Yes
Depth
0.072"
Diameter
1.230"
Finish
Passivated
Fits Shaft Diameter
(1.375", 1-3/8", 34.9mm)
Free Diameter
1.213"
Grade
15-7
Manufacturer Part Number
SE-137SS
Material
Stainless Steel
Product Type
Retaining Rings
System of Measurement (Unit)
Inch/Millimeter
Thickness
0.062"
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
USA Made
Yes
Width
0.068"
