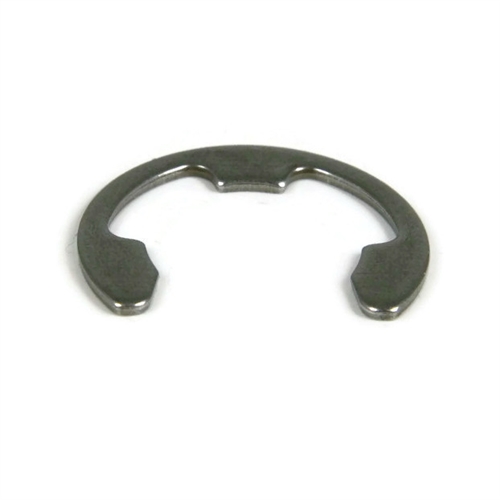

SE-11SS 7/64" External Retaining Ring - Stainless Steel

SE-11SS Stainless Steel E Snap Rings

Fits Shaft Diameter: 7/64"


7/64" External SE models have a smaller free diameter than standard 'E' snap rings of the same size, thus making them a lighter product.

  • The most popular and widely used style of radial snap ring
  • Called "E" rings because of the three prongs on the inside of the ring
  • These rings make contact with the bottom of a groove on a shaft to create a shoulder for effective assembly retention
USA Made Retaining Rings

USA MADE FASTENER


Select Products Below
Product Specifications
Additional Sizing Info
Diameter, Width, Depth, and Free Diameter refer to Groove Size
Brand
Rotor Clip
Color
Silver
Corrosion Resistant
Yes
Depth
0.015"
Diameter
0.079"
Finish
Passivated
Fits Shaft Diameter
(0.110", 7/64", 2.8mm)
Free Diameter
0.076"
Manufacturer Part Number
SE-11SS
Material
Stainless Steel
Product Type
Retaining Rings
Thickness
0.015"
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
USA Made
Yes
Width
0.020"
Select Products Below
Qty
Size
Select Package Quantity
SubTotal
SE-11SS 7/64"
SKU #816104-0002
SE-11SS 7/64"
SKU #816104-0002
1
$0.15 (0.15/ea)
25
$2.25 (0.09/ea)
100
$8.00 (0.08/ea)
1000
$70.00 (0.07/ea)
