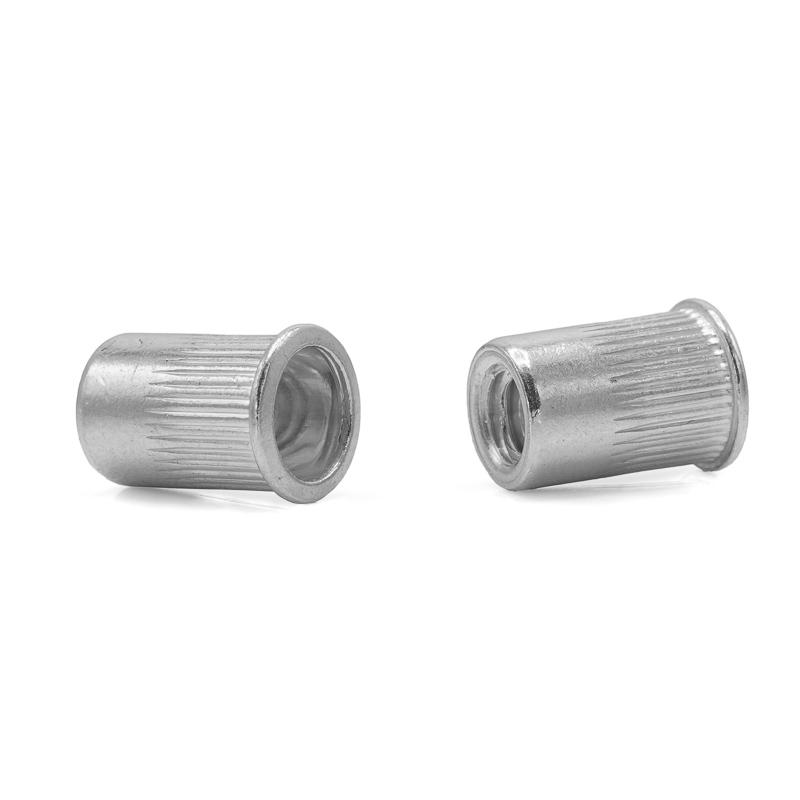

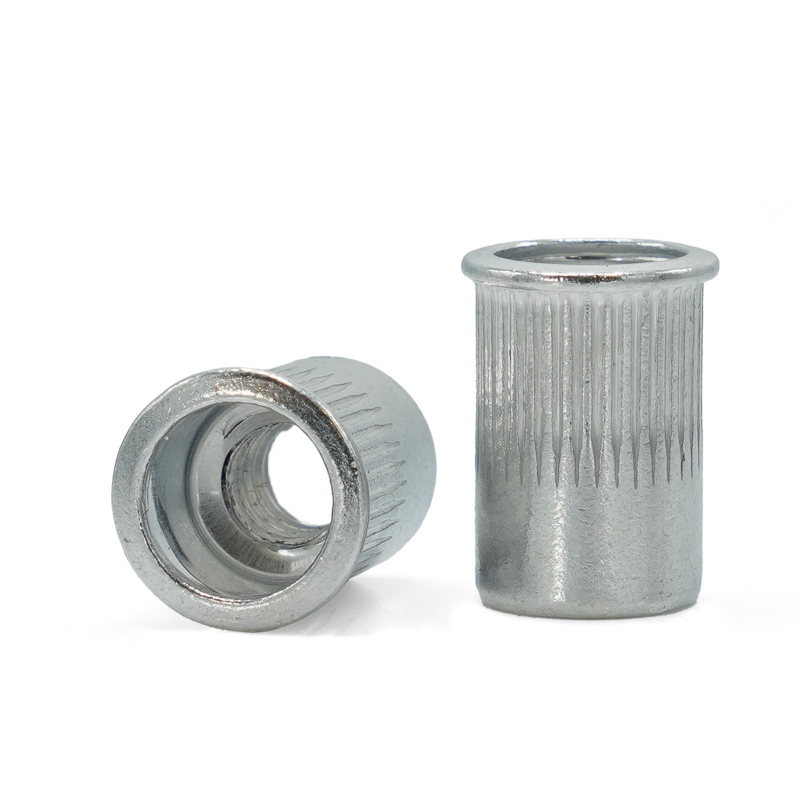

Thinwall Ribbed Reduced Head Rivet Nut - Aluminium

Thinwall Ribbed Reduced Head Rivet Nut - Aluminium

Flanged Insert With An Aluminium Internal Threaded Nut


Ribbed body helps prevent spinning
For use in round holes
Reduced head ideal for flush installation
Compatible with Spin-Spin or Spin-Pull tools
Resistant to Atmospheric Corrosion

Rivet Nuts are used to install a threaded insert into a material where only one side is accessible. Installed “blind”, the Rivet Nut partially collapses upon installation to grip the material between the head and compressed body. Rivet Nuts are useful for securing permanent threads into materials otherwise too thin for tapped holes.

Sizes listed as Diameter - Thread Count x Length


SKU Thread Size Grip Range Length Installed Length Head Diameter Head Height (Nominal) Body Dia Max Hole Size
1600-020-002 #10-32 UNF .020 - .130 0.475 0.315 0.34 0.019 0.296 0.297
1600-020-004 1/4-20 UNC .027 - .165 0.58 0.38 0.455 0.022 0.39 0.391
1600-020-006 5/16-18 UNC .027 - .150 0.69 0.47 0.595 0.022 0.53 0.531
Select Products Below
See Product Specifications
5/16-18 x .69 (.027 - .150 Grip):
Qty
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Loading ...
Product Specifications
Color
Silver
Head Style
Reduced
Material
Aluminum
Product Type
Rivet Nut
Standards Met
ROHS Compliant
Thread Direction
Right Hand
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
