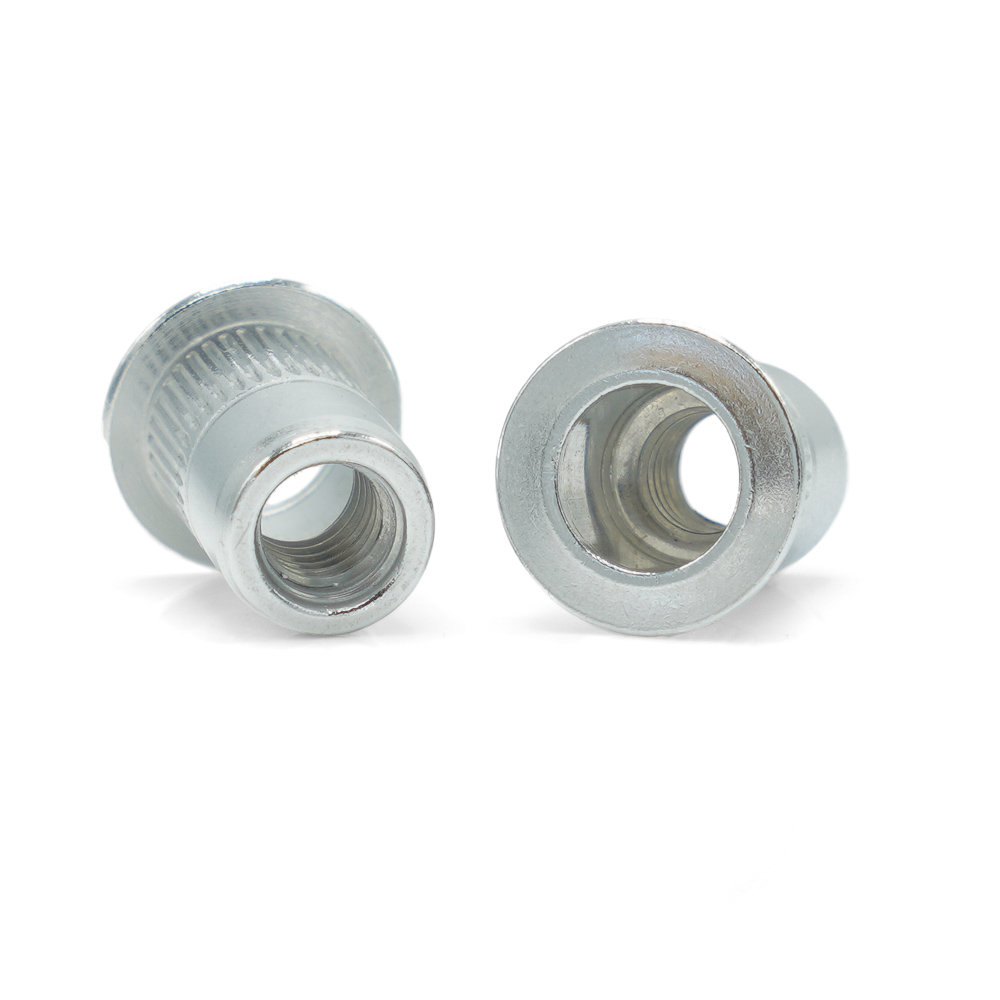

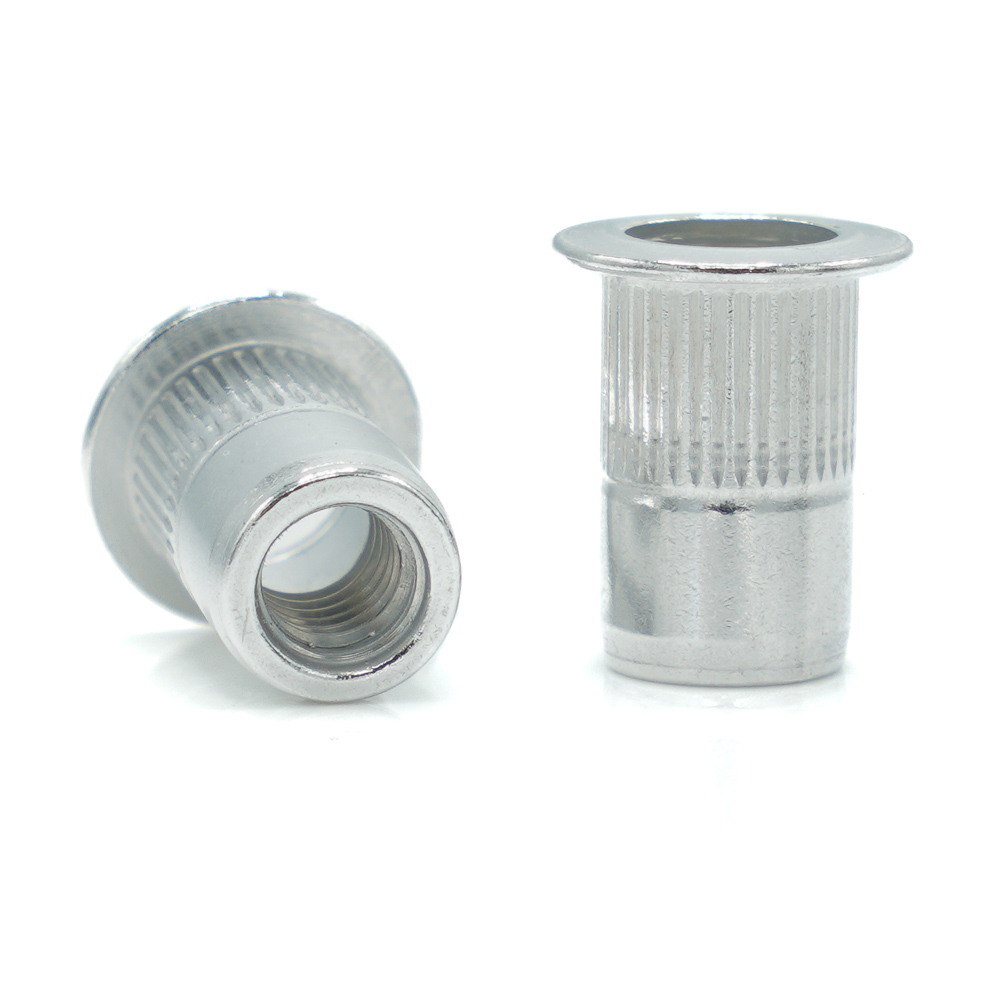

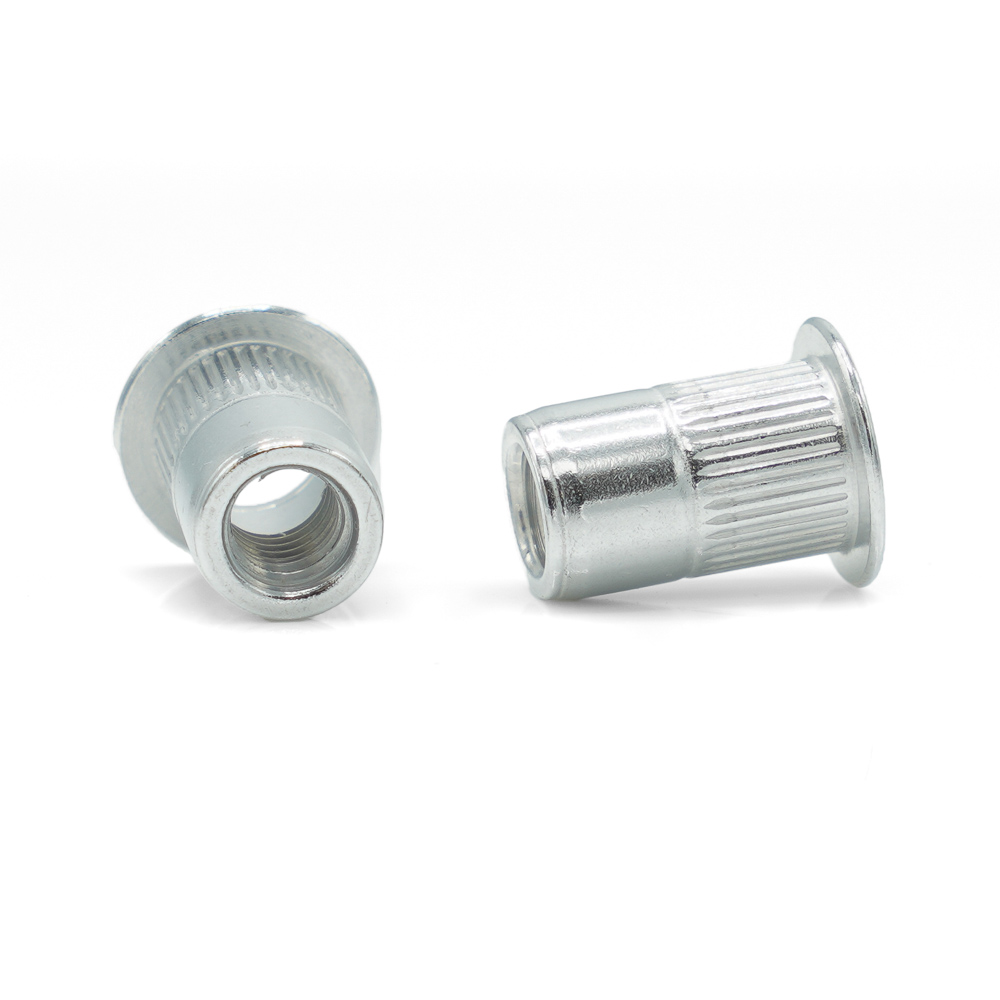

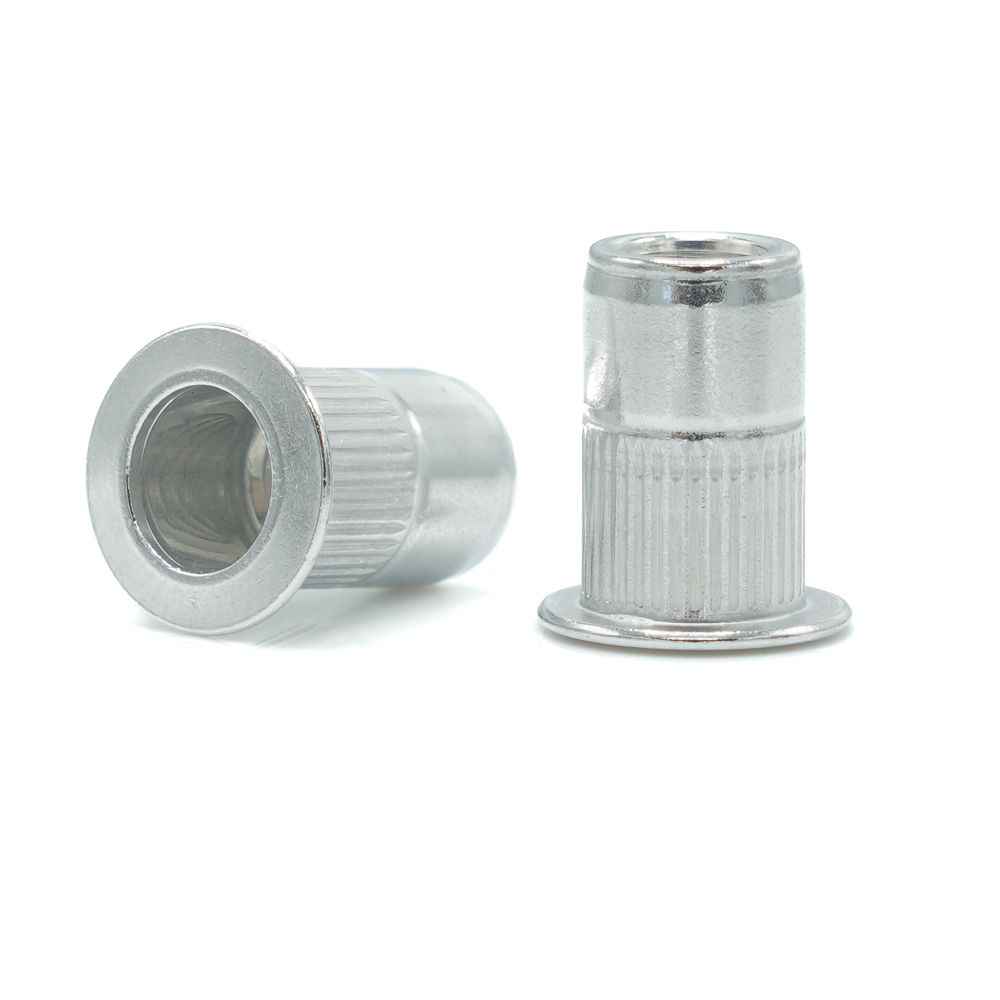

Rivet Nuts, Thinwall Ribbed Low Profile Head, Aluminium, #10-32 x 0.475 (.020 - .130 Grip)
Flanged Insert With An Aluminium Internal Threaded Nut
| Quantity | Unit price |
|---|---|
| 1 – 99 |
$0.24*
|
| 100 – 999 |
$0.14*
|
| 1000+ |
$0.13*
|
- Color: Silver
- Diameter: #10
- Drill (Hole) Size: 0.297
- Head Type: Low Profile
- Thread Direction: Right Hand
- Head Height: 0.03
- Head Diameter: 0.415
- Head Style: Low Profile
- Insert Length: 0.315
- Internal Thread: #10-32
- Length: 0.475
- Material: Aluminum
- Product Type: Rivet Nut
- Standards Met: ROHS Compliant
- System of Measurement: Inch
- Thread Diameter: #10
- Thread Direction: Right Hand
- Thread Pitch: 32 Per Inch
- Thread Size: #10-32
- Thread Standard: UNF
- Thread Type: Fine
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
• Ribbed body helps prevent spinning
• For use in round holes
• Low profile head installs near flush
• Resistant to Atmospheric Corrosion
• Compatible with Spin-Spin or Spin-Pull tools
Rivet Nuts are used to install a threaded insert into a material where only one side is accessible. Installed “blindâ€, the Rivet Nut partially collapses upon installation to grip the material between the head and compressed body. Rivet Nuts are useful for securing permanent threads into materials otherwise too thin for tapped holes.
Sizes listed as Diameter - Thread Count x Length
| SKU | Thread Size | Grip Range | Length | Installed Length | Head Diameter | Head Height (Nominal) | Body Dia Max | Hole Size |
| 1600-014-002 | #10-32 UNF | .020 - .130 | 0.475 | 0.315 | 0.415 | 0.03 | 0.296 | 0.297 |
| 1600-014-004 | 1/4-20 UNC | .027 - .165 | 0.58 | 0.38 | 0.5 | 0.03 | 0.39 | 0.391 |
| 1600-014-006 | 5/16-18 UNC | .027 - .150 | 0.69 | 0.47 | 0.685 | 0.035 | 0.53 | 0.531 |
| 1600-014-008 | 3/8-16 UNC | .027 - .150 | 0.69 | 0.47 | 0.685 | 0.035 | 0.53 | 0.531 |
Product number:
1600-014-002
