To place an order, scroll down and enter quantities in the multi-add grid and click "add selected to cart". For product details, select any SKU or size and click the Description and Specifications tabs. Scroll to the bottom for related items.
Rivet Nuts, Thinwall Ribbed Low Profile Head Stainless Steel 18-8, #10-32 x 0.475 (.020 - .130 Grip
Flanged Insert With a Stainless Steel Internal Threaded Nut
| Quantity | Unit price |
|---|---|
| 1 – 99 |
$0.47*
|
| 100 – 999 |
$0.40*
|
| 1000+ |
$0.36*
|
- Color: Silver
- Corrosion Resistant: Yes
- Diameter: #10
- Drill (Hole) Size: 0.297
- Head Type: Low Profile
- Thread Direction: Right Hand
- Grade: 18-8
- Head Height: 0.03
- Head Diameter: 0.415
- Head Style: Low Profile
- Insert Length: 0.315
- Internal Thread: #10-32
- Length: 0.475
- Material: Stainless Steel
- Product Type: Rivet Nut
- Standards Met: ROHS Compliant
- System of Measurement: Inch
- Thread Diameter: #10
- Thread Direction: Right Hand
- Thread Pitch: 32 Per Inch
- Thread Size: #10-32
- Thread Standard: UNF
- Thread Type: Fine
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
• Ribbed body helps prevent spinning
• For use in round holes
• Low profile head installs near flush
• Compatible with Spin-Spin or Spin-Pull tools
Rivet Nuts are used to install a threaded insert into a material where only one side is accessible. Installed “blindâ€, the Rivet Nut partially collapses upon installation to grip the material between the head and compressed body. Rivet Nuts are useful for securing permanent threads into materials otherwise too thin for tapped holes.
Sizes listed as Diameter - Thread Count x Length

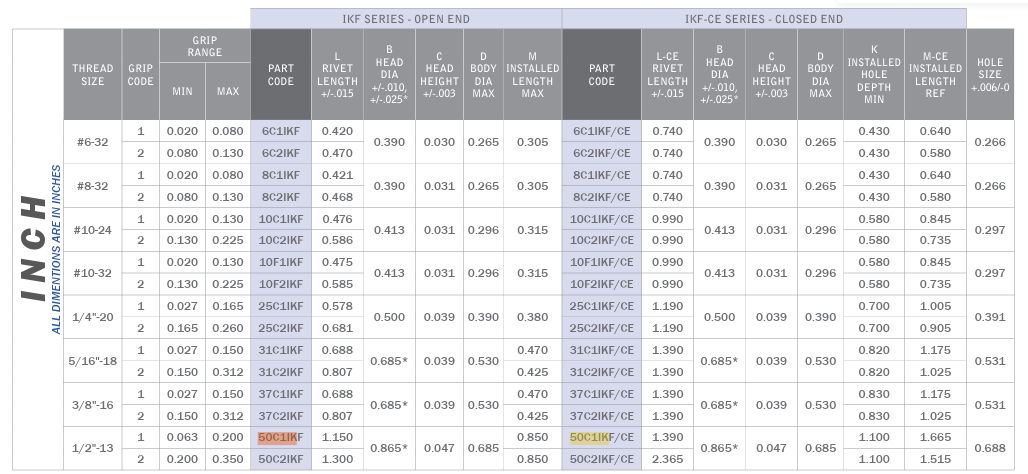

| SKU | Thread Size | Grip Range | Length | Installed Length | Head Diameter | Head Height (Nominal) | Body Dia Max | Hole Size |
| 1600-010-002 | #10-32 UNF | .020 - .130 | 0.475 | 0.315 | 0.415 | 0.03 | 0.296 | 0.297 |
| 1600-010-004 | 1/4-20 UNC | .027 - .165 | 0.58 | 0.38 | 0.5 | 0.03 | 0.39 | 0.391 |
| 1600-010-006 | 5/16-18 UNC | .027 - .150 | 0.69 | 0.47 | 0.685 | 0.035 | 0.53 | 0.531 |
| 1600-010-008 | 3/8-16 UNC | .027 - .150 | 0.69 | 0.47 | 0.685 | 0.035 | 0.53 | 0.531 |
Product number:
1600-010-002
