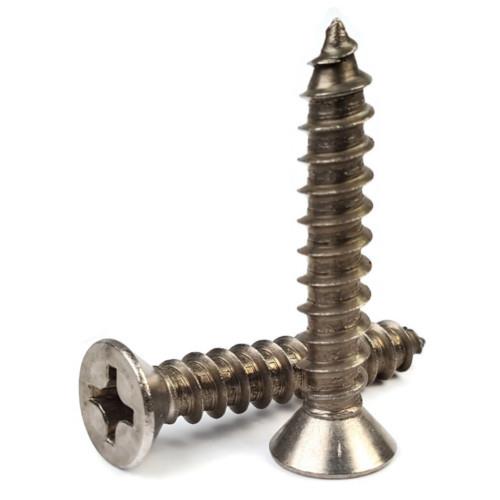

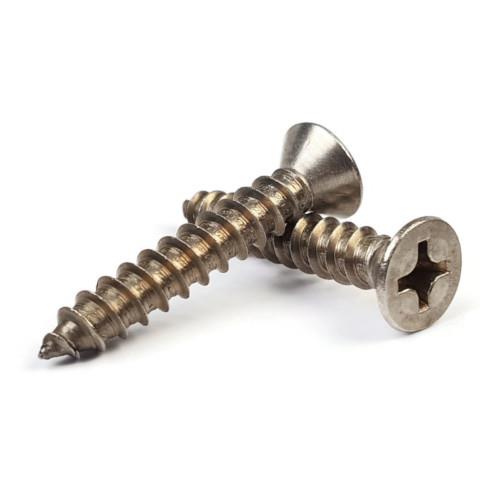

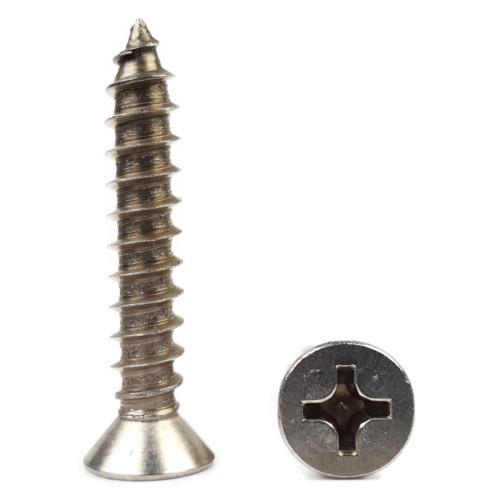

#6-20 Phillips Flat Head Sheet Metal Screws 316 Stainless Steel

#6-20 Stainless Steel Phillips Flat Head Sheet Metal Screws

Diameter - Thread Pitch: #6-20

  • #6-20
  • Fully threaded
  • Cut into wood, plastic or sheet metal with ease
  • Cutting threads for a better hold
  • Great for attaching metal hardware to wood
  • 316 Stainless steel Phillips flat head sheet metal screws are corrosion resistant and considered the industry standard
  • 316 Stainless steel is recommended over 18-8 for saltwater and other harsh environments
  • NOTE: Sheet metal screws provide excellent retention in wood but are very difficult to remove
Type A Sheet Metal Screw Thread Specifications
Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Phillips Undercut Flat Head Sheet Metal Screws 316 Stainless Steel #6 x 1/4"
SKU #6012-006-002
Phillips Undercut Flat Head Sheet Metal Screws 316 Stainless Steel #6 x 1/4"
SKU #6012-006-002
1
 $0.11 (0.11/ea)
100
 $7.00 (0.07/ea)
1000
 $60.00 (0.06/ea)
Subtotal: $0.00 /
Phillips Flat Head Sheet Metal Screws 316 Stainless Steel #6 x 3/8"
SKU #6012-006-004
Phillips Flat Head Sheet Metal Screws 316 Stainless Steel #6 x 3/8"
SKU #6012-006-004
1
 $0.11 (0.11/ea)
100
 $7.00 (0.07/ea)
1000
 $60.00 (0.06/ea)
Subtotal: $0.00 /
Phillips Flat Head Sheet Metal Screws 316 Stainless Steel #6 x 1/2"
SKU #6012-006-006
Phillips Flat Head Sheet Metal Screws 316 Stainless Steel #6 x 1/2"
SKU #6012-006-006
1
 $0.12 (0.12/ea)
100
 $7.00 (0.07/ea)
1000
 $60.00 (0.06/ea)
Subtotal: $0.00 /
Phillips Flat Head Sheet Metal Screws 316 Stainless Steel #6 x 5/8"
SKU #6012-006-008
Phillips Flat Head Sheet Metal Screws 316 Stainless Steel #6 x 5/8"
SKU #6012-006-008
1
 $0.14 (0.14/ea)
100
 $8.00 (0.08/ea)
1000
 $70.00 (0.07/ea)
Subtotal: $0.00 /
Phillips Flat Head Sheet Metal Screws 316 Stainless Steel #6 x 3/4"
SKU #6012-006-010
Phillips Flat Head Sheet Metal Screws 316 Stainless Steel #6 x 3/4"
SKU #6012-006-010
1
 $0.14 (0.14/ea)
100
 $8.00 (0.08/ea)
1000
 $70.00 (0.07/ea)
Subtotal: $0.00 /
Phillips Flat Head Sheet Metal Screws 316 Stainless Steel #6 x 1"
SKU #6012-006-012
Phillips Flat Head Sheet Metal Screws 316 Stainless Steel #6 x 1"
SKU #6012-006-012
1
 $0.15 (0.15/ea)
100
 $9.00 (0.09/ea)
1000
 $80.00 (0.08/ea)
Subtotal: $0.00 /
Phillips Flat Head Sheet Metal Screws 316 Stainless Steel #6 x 1-1/4"
SKU #6012-006-014
Phillips Flat Head Sheet Metal Screws 316 Stainless Steel #6 x 1-1/4"
SKU #6012-006-014
1
 $0.16 (0.16/ea)
100
 $11.00 (0.11/ea)
1000
 $100.00 (0.1/ea)
Subtotal: $0.00 /
Phillips Flat Head Sheet Metal Screws 316 Stainless Steel #6 x 1-1/2"
SKU #6012-006-016
Phillips Flat Head Sheet Metal Screws 316 Stainless Steel #6 x 1-1/2"
SKU #6012-006-016
1
 $0.19 (0.19/ea)
100
 $13.00 (0.13/ea)
1000
 $120.00 (0.12/ea)
Subtotal: $0.00 /
Phillips Flat Head Sheet Metal Screws 316 Stainless Steel #6 x 2"
SKU #6012-006-018
Phillips Flat Head Sheet Metal Screws 316 Stainless Steel #6 x 2"
SKU #6012-006-018
1
 $0.21 (0.21/ea)
100
 $15.00 (0.15/ea)
1000
 $140.00 (0.14/ea)
Subtotal: $0.00 /



FREQUENTLY USED WITH

Phillips Power Bits - #2 - Length 2"
Phillips Power Bits - #2 - Length 2" 1050-500-0016
Phillips Power Bits - #2 - Length 2
1
 $1.04 (1.04/ea)
10
 $8.10 (0.81/ea)
50
 $38.00 (0.76/ea)
Subtotal: $0.00 /
ACR Phillips Power Bits - #2 x 2"
ACR Phillips Power Bits - #2 x 2" 1050-802-0022
ACR Phillips Power Bits - #2 x 2
1
 $1.06 (1.06/ea)
10
 $10.00 (1/ea)
50
 $48.00 (0.96/ea)
Subtotal: $0.00 /
Product Specifications
Color
Silver
Corrosion Resistant
Yes
Diameter
#6
Drive Style
Phillips
Grade
316
Head Diameter
Max 0.279 - Min 0.244
Head Height Max
0.083
Head Style
Flat
Marine Grade
Yes
Material
Stainless Steel
Overall Head Height
Max 0.083 - Min 0.069
Phillips Drive
#2
Product Type
Sheet Metal Screws
System of Measurement (Unit)
Inch
Thread Direction
Right Hand
Thread Pitch (Count)
20 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
