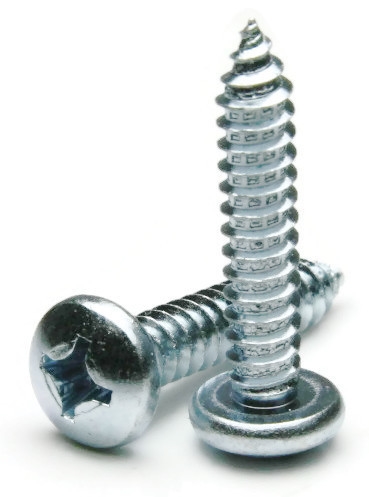

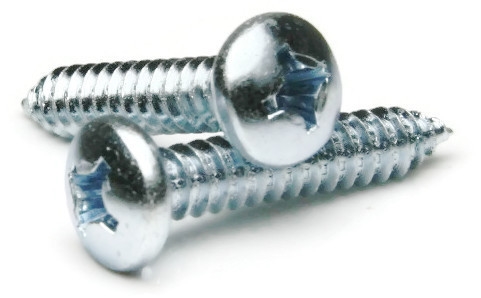

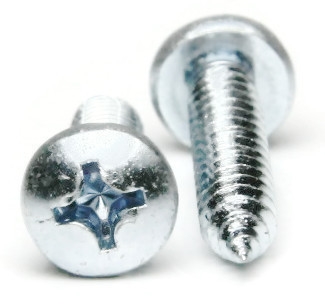

Sheet Metal Screws, Phillips Pan Head, Zinc Plated Steel, #12

Sheet Metal Screws, Phillips Pan Head, Zinc Plated Steel, #12

Diameter - Thread Pitch: #12-14


  • #12-14
  • Cut into sheet metal, plastic or wood
  • Fully threaded
  • Great for attaching metal to wood
  • Strong retention in wood
  • Also known as Self Piercing Screws or Self Tapping Screws
  • Pan head - rounded top with an undercut (flat bottom) head
  • Sizes listed below as: Diameter - Thread Pitch
  • A zinc plated Phillips pan head sheet metal screw can be a light shiny color or have a bright blue hue
  • Zinc plated steel is corrosion resistant, but it is not recommended for harsh environments
Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size/SKU
Select Package Quantity Price
SubTotal
#12-14 x 1/2"
#12-14 x 1/2"
1 $0.14 (0.14/ea)
100 $6.00 (0.06/ea)
1000 $50.00 (0.05/ea)
Subtotal: $0.00 /
#12-14 x 5/8"
#12-14 x 5/8"
1 $0.15 (0.15/ea)
100 $7.00 (0.07/ea)
1000 $60.00 (0.06/ea)
Subtotal: $0.00 /
#12-14 x 3/4"
#12-14 x 3/4"
1 $0.15 (0.15/ea)
100 $7.00 (0.07/ea)
1000 $60.00 (0.06/ea)
Subtotal: $0.00 /
#12-14 x 1"
#12-14 x 1"
1 $0.17 (0.17/ea)
100 $7.00 (0.07/ea)
1000 $60.00 (0.06/ea)
Subtotal: $0.00 /
#12-14 x 1-1/4"
#12-14 x 1-1/4"
1 $0.18 (0.18/ea)
100 $8.00 (0.08/ea)
1000 $70.00 (0.07/ea)
Subtotal: $0.00 /
#12-14 x 1-1/2"
#12-14 x 1-1/2"
1 $0.20 (0.2/ea)
100 $9.00 (0.09/ea)
1000 $80.00 (0.08/ea)
Subtotal: $0.00 /
#12-14 x 1-3/4"
#12-14 x 1-3/4"
1 $0.21 (0.21/ea)
100 $11.00 (0.11/ea)
1000 $90.00 (0.09/ea)
Subtotal: $0.00 /
#12-14 x 2"
#12-14 x 2"
1 $0.25 (0.25/ea)
100 $11.00 (0.11/ea)
1000 $90.00 (0.09/ea)
Subtotal: $0.00 /
#12-14 x 2-1/2"
#12-14 x 2-1/2"
1 $0.30 (0.3/ea)
100 $16.00 (0.16/ea)
1000 $140.00 (0.14/ea)
Subtotal: $0.00 /
#12-14 x 3"
#12-14 x 3"
1 $0.34 (0.34/ea)
100 $19.00 (0.19/ea)
1000 $160.00 (0.16/ea)
Subtotal: $0.00 /

Frequently Used With

1 $0.05 (0.05/ea)
100 $3.00 (0.03/ea)
1000 $20.00 (0.02/ea)
Subtotal: $0.00
1 $0.08 (0.08/ea)
100 $3.00 (0.03/ea)
1000 $20.00 (0.02/ea)
Subtotal: $0.00
1 $1.04 (1.04/ea)
10 $8.10 (0.81/ea)
50 $38.00 (0.76/ea)
Subtotal: $0.00
1 $1.08 (1.08/ea)
10 $10.20 (1.02/ea)
50 $49.00 (0.98/ea)
Subtotal: $0.00
1 $2.55 (2.55/ea)
10 $21.20 (2.12/ea)
Subtotal: $0.00

Product Specifications
Color
Silver
Corrosion Resistant
Yes
Diameter
#12
Drive Style
Phillips
Finish
Zinc Plated
Head Diameter
Max 0.425 - Min 0.407
Head Style
Pan
Material
Steel
Overall Head Height
Max 0.125 - Min 0.112
Phillips Drive
#3
Point Type
AB
Product Type
Sheet Metal Screws
System of Measurement (Unit)
Inch
Thread Diameter Major
(#12) 0.221" - 0.215"
Thread Diameter Minor
(#12) 0.162" - 0.155"
Thread Direction
Right Hand
Thread Pitch (Count)
14 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
