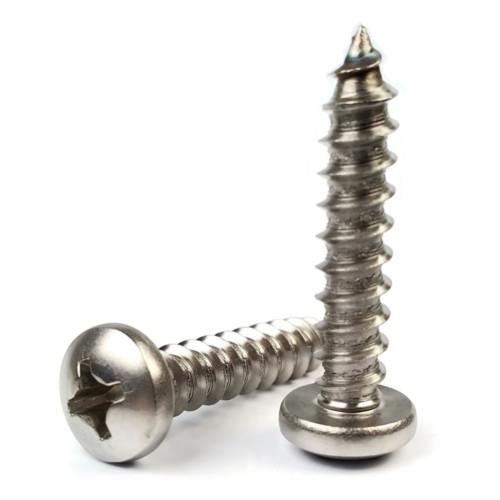

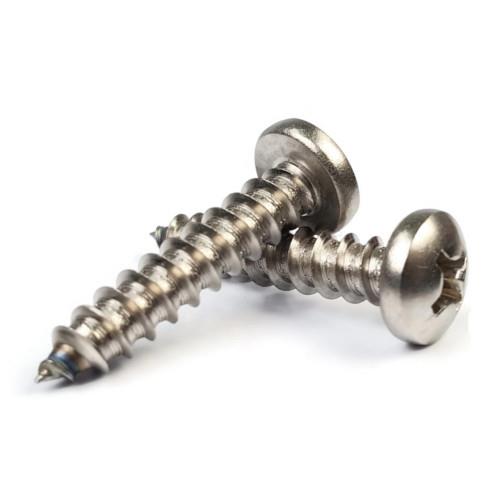

#2-32 Stainless Steel Phillips Pan Head Sheet Metal Screws
Diameter - Thread Pitch: #2-32
- #2-32
- Cut into sheet metal, plastic or wood
- Fully threaded
- Great for attaching metal to wood
- Strong retention in wood
- Also known as Self Piercing Screws or Self Tapping Screws
- Pan head - rounded top with an undercut (flat bottom) head
- Sizes listed below as: Diameter - Thread Pitch
- A 18-8 stainless steel Phillips pan head sheet metal screw is corrosion and rust resistant
- Ideal for fresh water and exterior weather exposure
See Product Specifications
NA = "Not Sold In Single Quantity"
Select Package Quantity
Loading ...
Product Specifications
Color
Silver
Corrosion Resistant
Yes
Diameter
#2
Drive Style
Phillips
Elongation
30%
Grade
18-8
Hardness
100 Rockwell B
Head Diameter
Max 0.167 - Min 0.155
Head Height Max
0.053
Head Style
Pan
Material
Stainless Steel
Overall Head Height
Max 0.053 - Min 0.045
Phillips Drive
#1
Point Type
A
Product Type
Sheet Metal Screws
Reduction
40%
Standards Met
ANSI B18.6.4
System of Measurement (Unit)
Inch
Tensile PSI
100,000 - 125,000 PSI
Thread Direction
Right Hand
Thread Pitch (Count)
32 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Yield PSI
55,000 - 75,000 PSI
