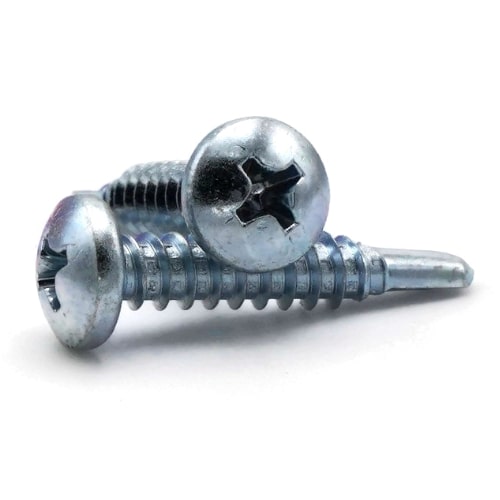

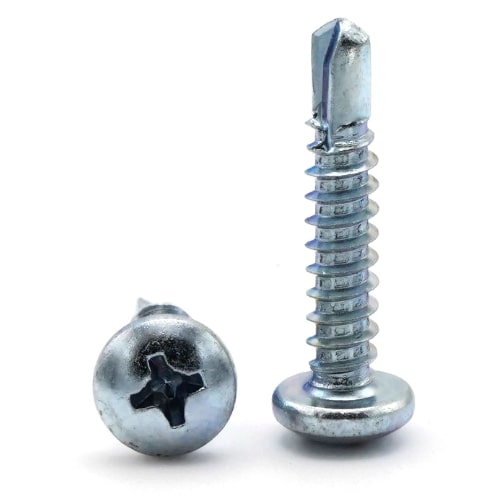

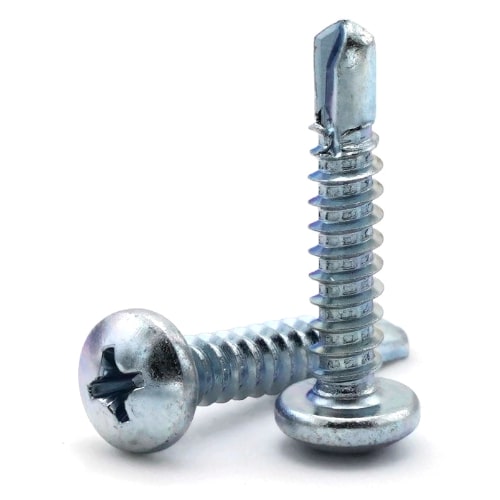

Sheet Metal Screws, Phillips Pan Head, Self Driller TEK 3, Zinc Plated Steel, #14 x 1"

Diameter - Thread Pitch: #14-14

#14-14
Self drilling point (TEK)
Pierce 20 to 14 gauge metals
Fully threaded
Threads cut into material
Great for attaching metal equipment to wood
Sizes listed below as: Diameter x Length
Zinc plated steel square drive pan head self drilling screws offer durability at a low price

Product number: 3520-012-0032

Print this page

Specifications

ANSI: ANSI B18.6.4
Color (Duplicate): Silver
Color: Silver
Condition: New
Corrosion Resistant: Yes
Diameter: #14
Drive Style: Phillips
Elongation: 30%
Head Type: Pan Head
Thread Direction: Right Hand
Thread Type: Coarse
Finish: Zinc Plated
Hardness: 40 Rockwell C
Head Height Max: 0.144
Head Diameter: Max 0.492 - Min 0.473
Head Style: Pan
Length: 1"
Material (Duplicate): Zinc Plated Steel
Material: Stainless Steel
Overall Head Height: Max 0.144 - Min 0.130
Phillips Drive: #3
Point Type: TEK
Product Type: Self Drilling Screws
Size System: US
Size Type: Regular
Standards Met: ANSI B18.6.4
System of Measurement: Inch
TEK Self Drilling Point: TEK 3
Thread Diameter Major: (#14) 0.246"
Thread Diameter Minor: (#14) 0.192"
Thread Direction: Right Hand
Thread Pitch: 14 Per Inch
Thread Size: #14-14
Thread Standard: UNC
Thread Type: Coarse
Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Weight: 1 lb

Select Size/SKU & Quantity

8 Available Sizes

SIZE/SKU	Review Volume Pricing*	Enter Any Qty
#14-14 x 1" 3520-012-0032	1 $0.20 ($0.20/ea) 100 $15.00 ($0.15/ea) 1000 $130.00 ($0.13/ea)	Quantity for Sheet Metal Screws, Phillips Pan Head, Self Driller TEK 3, Zinc Plated Steel, #14 x 1" $0.00
#14-14 x 1-1/4" 3520-012-0042	1 $0.25 ($0.25/ea) 100 $19.00 ($0.19/ea) 1000 $160.00 ($0.16/ea)	Quantity for Sheet Metal Screws, Phillips Pan Head, Self Driller TEK 3, Zinc Plated Steel, #14 x 1-1/4" $0.00
#14-14 x 1-1/2" 3520-012-0052	1 $0.26 ($0.26/ea) 100 $19.00 ($0.19/ea) 1000 $160.00 ($0.16/ea)	Quantity for Sheet Metal Screws, Phillips Pan Head, Self Driller TEK 3, Zinc Plated Steel, #14 x 1-1/2" $0.00
#14-14 x 2" 3520-012-0062	1 $0.28 ($0.28/ea) 100 $22.00 ($0.22/ea) 1000 $190.00 ($0.19/ea)	Quantity for Sheet Metal Screws, Phillips Pan Head, Self Driller TEK 3, Zinc Plated Steel, #14 x 2" $0.00
#14-14 x 2-1/2" 3520-012-0072	1 $0.30 ($0.30/ea) 100 $27.00 ($0.27/ea) 1000 $250.00 ($0.25/ea)	Quantity for Sheet Metal Screws, Phillips Pan Head, Self Driller TEK 3, Zinc Plated Steel, #14 x 2-1/2" $0.00
#14-14 x 3" 3520-012-0082	1 $0.38 ($0.38/ea) 100 $31.00 ($0.31/ea) 1000 $290.00 ($0.29/ea)	Quantity for Sheet Metal Screws, Phillips Pan Head, Self Driller TEK 3, Zinc Plated Steel, #14 x 3" $0.00
#14-14 x 3-1/2" 3520-012-0092	1 $0.46 ($0.46/ea) 100 $40.00 ($0.40/ea) 1000 $390.00 ($0.39/ea)	Quantity for Sheet Metal Screws, Phillips Pan Head, Self Driller TEK 3, Zinc Plated Steel, #14 x 3-1/2" $0.00
#14-14 x 4" 3520-012-0102	1 $0.55 ($0.55/ea) 100 $38.00 ($0.38/ea) 1000 $360.00 ($0.36/ea)	Quantity for Sheet Metal Screws, Phillips Pan Head, Self Driller TEK 3, Zinc Plated Steel, #14 x 4" $0.00

Phillips Power Bits, #3, Length 2"

Volume Pricing*

$1.04

($1.04/ea)

$8.10

($0.81/ea)

$38.00

($0.76/ea)

$0.00

ACR Phillips Power Bits, #3 x 2"

Volume Pricing*

$1.08

($1.08/ea)

$10.20

($1.02/ea)

$49.00

($0.98/ea)

$0.00

*Volume pricing available on select products. Products without quantity breaks are priced per unit.
