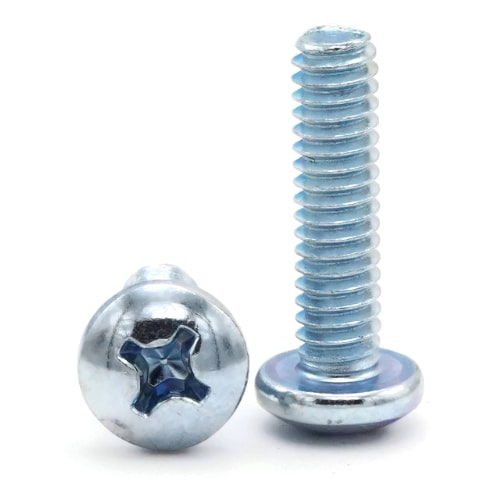

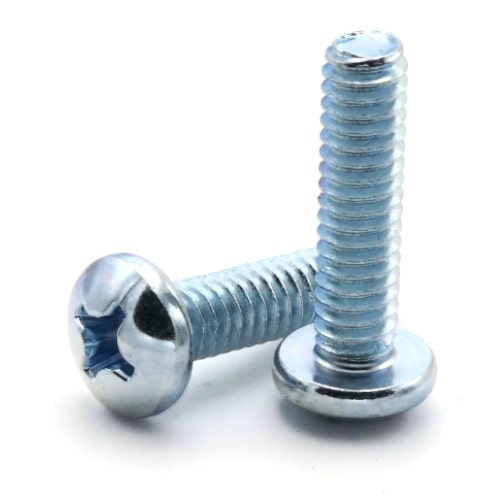

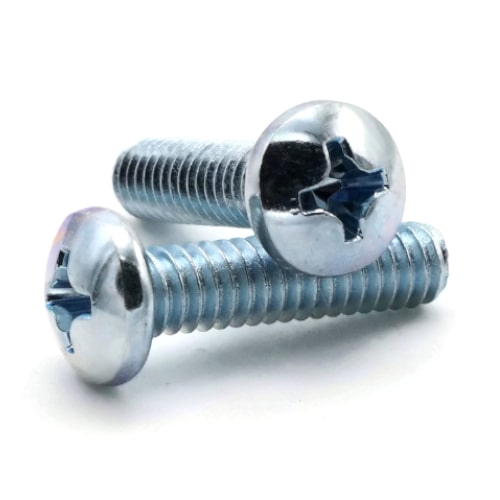

Machine Screws, Phillips Pan Head, Zinc Plated Steel, 1/4"-20 x 1"

Diameter - Thread Pitch: 1/4"-20

Quantity	Unit price
To 99	$0.26*
To 999	$0.08*
From 1000	$0.07*

Diameter x Length

1/4"-20 x 1"

Color: Silver
Condition: New
Corrosion Resistant: Yes
Diameter: 1/4"
Drive Style: Phillips

Elongation: 30%
Head Type: Pan Head
Thread Direction: Right Hand
Thread Type: Coarse
Finish: Zinc Plated
Fit: 2A
Head Height Max: 0.144
Head Diameter: Max 0.492 - Min 0.473
Head Style: Pan
Length: 1"
Material: Steel
Overall Head Height: Max 0.144 - Min 0.130
Part Number: 720572198232
Phillips Drive: #3
Product Type: Machine Screws
Size Type: Regular
System of Measurement: Inch
Thread Direction: Right Hand
Thread Pitch: 20 Per Inch
Thread Size: 1/4"-20
Thread Standard: UNC
Thread Type: Coarse
Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Weight: 1 lb
Yield PSI: 55,000 - 75,000 PSI

Toggle More

Used mostly for metal applications
A machine screw is commonly identified by its small size
ASME Standards Specific
Zinc plated steel Phillips pan head machine screws adds a layer of corrosion resistance
Zinc plated steel has a light, shiny color and sometimes has a bright blue hue
Not suitable for extreme environmental use
Commonly used for:
- Drawer Slides
- Machinery

1/4"-20 Zinc Plated Phillips Pan Head Machine Screws are screws or bolts, typically found in smaller sizes, that hold machinery together.
REACH and RoHS Compliant

Product number: 8306-020-0002

SIZE/SKU	SELECT PACKAGE QUANTITY			SUBTOTAL
1/4"-20 x 1" 8306-020-0002	1 $0.26 (0.26/ea)	100 $8.00 (0.08/ea)	1000 $70.00 (0.07/ea)	Quantity for Machine Screws, Phillips Pan Head, Zinc Plated Steel, 1/4"-20 x 1" $0.00
