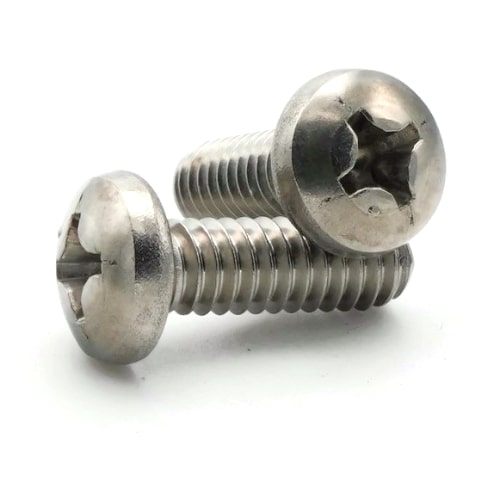

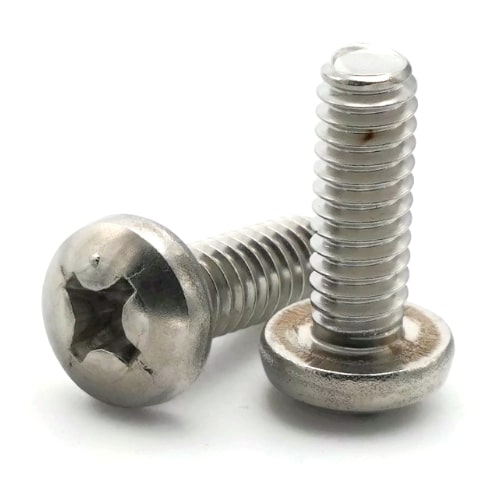

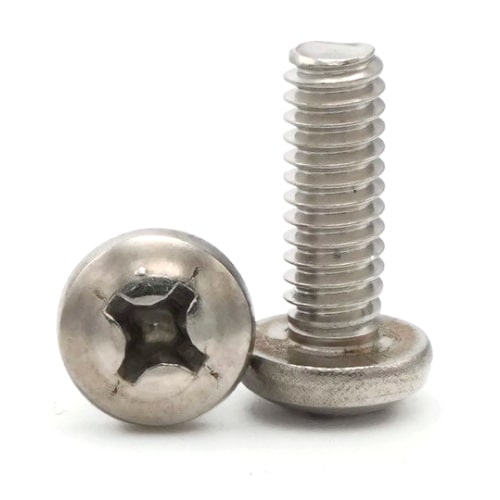

#6-32 | 316 Stainless Steel Phillips Pan Head Machine Screws
Diameter - Thread Pitch: #6-32
#6-32 Stainless Steel Phillips Pan Head Machine Screws are screws or bolts, typically found in smaller sizes, that hold machinery together.
- Used mostly for metal applications
- Mostly available in smaller sizes
- ASME Standards Specific
- 316 Stainless steel Phillips pan head machine screws are corrosion and rust resistant
- 316 stainless steel is suitable for salt water and other harsh environments
- Commonly used for:
- Drawer Slides
- Machinery
Product Specifications
ANSI
B1.1
Body Diameter
#6 (Max 0.1372 - Min 0.1312)
Class
2A
Color
Silver
Corrosion Resistant
Yes
Diameter
#6
Drive Style
Phillips
Elongation
30%
Fit
2A
Grade
316
Hardness
100 Rockwell B
Head Diameter
Max 0.270 - Min 0.256
Head Height Max
0.082
Head Style
Pan
Marine Grade
Yes
Material
Stainless Steel
Overall Head Height
Max 0.082 - Min 0.072
Phillips Drive
#2
Product Type
Machine Screws
Reduction
40%
Standards Met
ANSI B18.6.3
System of Measurement (Unit)
Inch
Tensile PSI
100,000 - 125,000 PSI
Thread Direction
Right Hand
Thread Pitch (Count)
32 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Yield PSI
55,000 - 75,000 PSI
