#6-32 Phillips Oval Head Machine Screw 18-8 Stainless Steel
Stainless Steel Phillips Oval Head Machine Screws #6-32



Alternative Views:

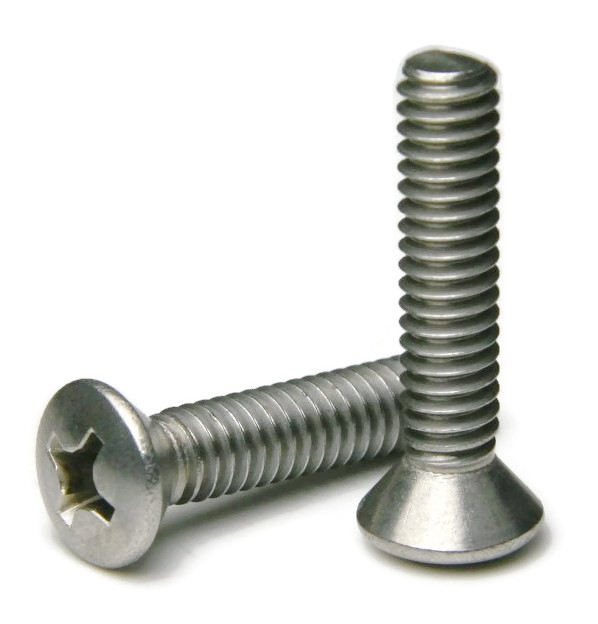

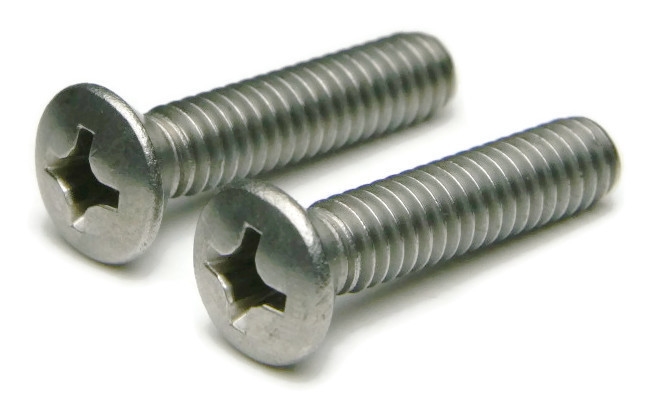

Stainless Steel Phillips Oval Head Machine Screws

Diameter - Thread Pitch: #6-32

Stainless Steel Phillips Oval Head Machine Screws feature a decorative head with a domed top, and a countersunk bottom. Phillips Oval Head Machine Screws in 18-8 Stainless Steel are corrosion and rust resistant in applications exposed to fresh water environments.

Product Specifications:
Phillips Oval Head Machine Screws
Thread Diameter: (#6) Max 0.1372 - Min 0.1312 (Class 2A Fit, ANSI B1.1)
Thread Pitch: 32 Per Inch (Coarse)
Head Diameter: Max 0.279 - Min 0.244 (ANSI B18.6.3)
Overall Head Height: Max 0.128 - Min 0.105
(From Bottom of Undercut to Top of Head)
Countersink: Max 0.86 - Min 0.69 (82 Degree)
Thread Direction: Right Hand
Material: 18-8 Stainless Steel
Phillips Drive: #1
Diameter x Thread Pitch x Length
Specifications may vary +/- within IFI Tolerances

Matching Products:
Hex Machine Screw Nuts Phillips Power Bits Screwdriver Sets
Stainless-Steel-Nuts


Item# Item Name Our Price Qty Add
5900002 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 1/4" Qty-1
$0.15
5900004 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 1/4" Qty-25
$0.45
5900006 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 1/4" Qty-100
$1.63
5900008 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 1/4" Qty-250
$3.66
5900010 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 1/4" Qty-1,000
$13.03
5900012 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 5/16" Qty-1
$0.15
5900014 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 5/16" Qty-25
$0.49
5900016 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 5/16" Qty-100
$1.80
5900018 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 5/16" Qty-250
$4.04
5900020 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 5/16" Qty-1,000
$14.36
5900022 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 3/8" Qty-1
$0.15
5900024 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 3/8" Qty-25
$0.50
5900026 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 3/8" Qty-100
$1.82
5900028 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 3/8" Qty-250
$4.10
5900030 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 3/8" Qty-1,000
$14.55
5900032 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 7/16" Qty-1
$0.15
5900034 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 7/16" Qty-25
$0.51
5900036 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 7/16" Qty-100
$1.88
5900038 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 7/16" Qty-250
$4.22
5900040 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 7/16" Qty-1,000
$15.02
5900042 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 1/2" Qty-1
$0.15
5900044 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 1/2" Qty-25
$0.56
5900046 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 1/2" Qty-100
$2.03
5900048 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 1/2" Qty-250
$4.56
5900050 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 1/2" Qty-1,000
$16.19
5900052 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 5/8" Qty-1
$0.15
5900054 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 5/8" Qty-25
$0.64
5900056 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 5/8" Qty-100
$2.32
5900058 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 5/8" Qty-250
$5.21
5900060 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 5/8" Qty-1,000
$18.52
5900062 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 3/4" Qty-1
$0.15
5900064 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 3/4" Qty-25
$0.71
5900066 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 3/4" Qty-100
$2.60
5900068 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 3/4" Qty-250
$5.87
5900070 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 3/4" Qty-1,000
$20.86
5900072 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 7/8" Qty-1
$0.15
5900074 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 7/8" Qty-25
$0.84
5900076 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 7/8" Qty-100
$3.07
5900078 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 7/8" Qty-250
$6.89
5900080 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 7/8" Qty-1,000
$24.49
5900082 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 1" Qty-1
$0.15
5900084 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 1" Qty-25
$0.88
5900086 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 1" Qty-100
$3.20
5900088 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 1" Qty-250
$7.20
5900090 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 1" Qty-1,000
$25.60
5900092 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 1-1/4" Qty-1
$0.15
5900094 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 1-1/4" Qty-25
$1.05
5900096 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 1-1/4" Qty-100
$3.80
5900098 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 1-1/4" Qty-250
$8.56
5900100 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 1-1/4" Qty-1,000
$30.42
5900102 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 1-1/2" Qty-1
$0.15
5900104 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 1-1/2" Qty-25
$1.28
5900106 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 1-1/2" Qty-100
$4.66
5900108 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 1-1/2" Qty-250
$10.48
5900110 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 1-1/2" Qty-1,000
$37.26
5900112 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 2" Qty-1
$0.15
5900114 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 2" Qty-25
$1.65
5900116 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 2" Qty-100
$5.99
5900118 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 2" Qty-250
$13.45
5900120 Phillips Oval Head Machine Screw 18-8 SS - #6-32 x 2" Qty-1,000
$47.84
