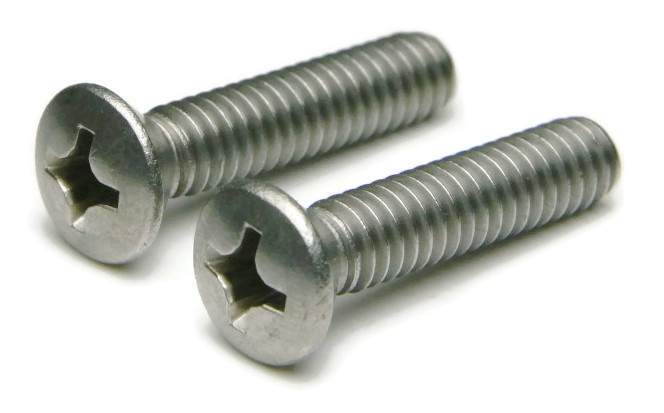

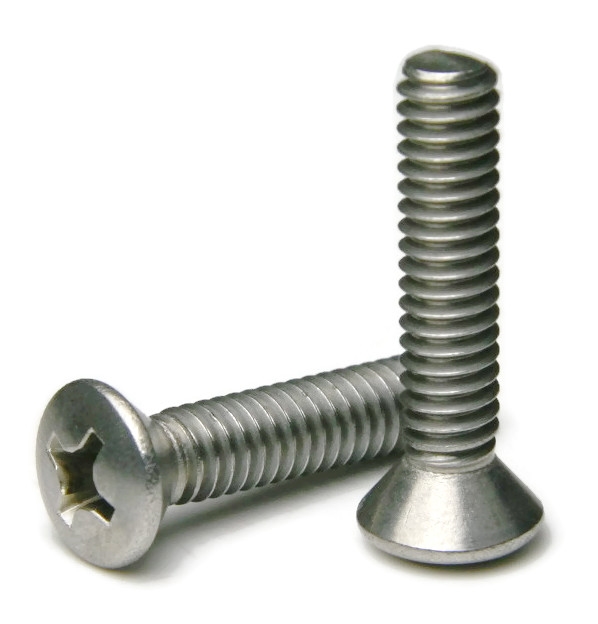

3/8"-16 Phillips Oval Head Machine Screw 18-8 Stainless Steel

3-8"-16 Stainless Steel Phillips Oval Head Machine Screws

Diameter - Thread Pitch: 3/8"-16


#3/8"-16 Stainless Steel Phillips Oval Head Machine Screws in 18-8 stainless steel.

  • Countersunk head with a raised domed top
  • Used either with a nut or in a pre-tapped hole
  • Raised decorative head
  • Used to secure materials that may be tampered with
  • Ideal for fresh water moisture environments
  • Rust and corrosion resistant

Select Products Below
Product Specifications
ANSI
ANSI B1.1
Body Diameter
3/8" (Max 0.375 - Min 0.369)
Class
2A
Color
Silver
Corrosion Resistant
Yes
Countersink
82 Degree
Diameter
3/8"
Drive Style
Phillips
Fit
Class 2A
Head Diameter
Max 0.762 - Min 0.685
Head Height Max
0.347
Head Style
Oval
Material
Stainless Steel 18-8
Overall Head Height
Max 0.347 - Min 0.300
Phillips Drive
#3
Product Type
Machine Screws
Standards Met
ANSI B18.6.3
Thread Direction
Right Hand
Thread Pitch (Count)
16
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Undercut
82 Degree
