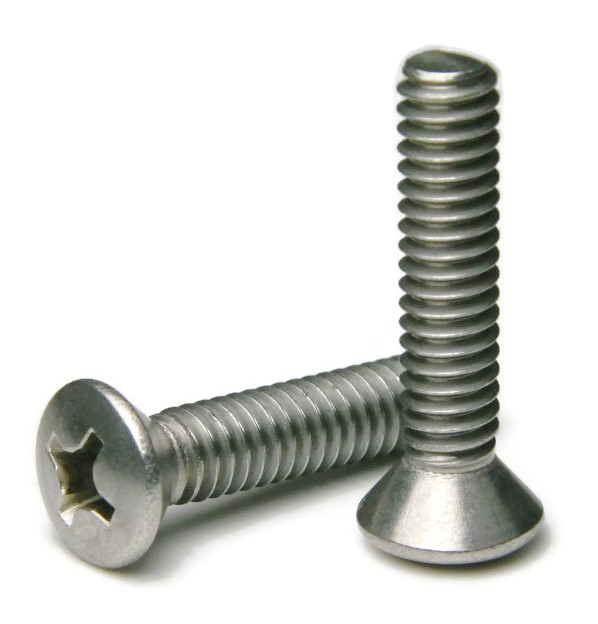

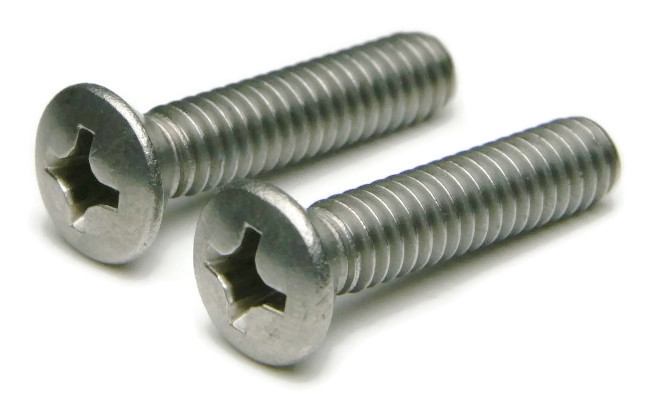

#12-24 Phillips Oval Head Machine Screw 18-8 Stainless Steel

#12-24 Stainless Steel Phillips Oval Head Machine Screws

Diameter - Thread Pitch: #12-24


#12-24 Stainless Steel Phillips Oval Head Machine Screws in 18-8 stainless steel.

  • Countersunk head with a raised domed top
  • Used either with a nut or in a pre-tapped hole
  • Raised decorative head
  • Used to secure materials that may be tampered with
  • Ideal for fresh water moisture environments
  • Rust and corrosion resistant

Select Products Below
Product Specifications
ANSI
ANSI B1.1
Body Diameter
#12 (Max 0.2150 - Min 0.2075)
Class
2A
Color
Silver
Corrosion Resistant
Yes
Countersink
82 Degree
Diameter
#12
Drive Style
Phillips
Fit
Class 2A
Head Diameter
Max 0.438 - Min 0.389
Head Height Max
0.2
Head Style
Oval
Material
Stainless Steel 18-8
Overall Head Height
Max 0.200 - Min 0.168
Phillips Drive
#3
Product Type
Machine Screws
Standards Met
ANSI B18.6.3
Thread Direction
Right Hand
Thread Pitch (Count)
24
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Undercut
82 Degree
