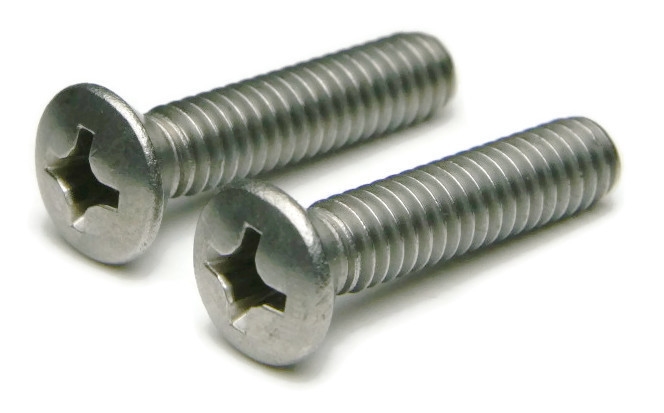

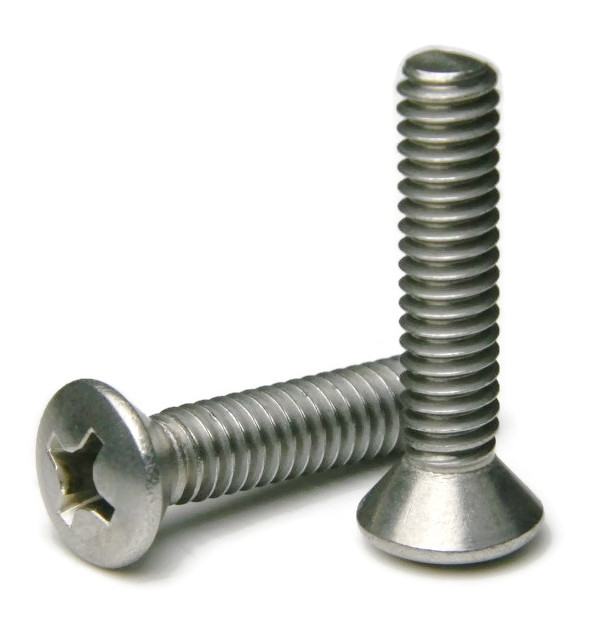

Machine Screws, Phillips Oval Head, Stainless Steel 18-8, #10-32 x 7/16"
Diameter - Thread Pitch: #10-32
| Quantity | Unit price |
|---|---|
| To 99 |
$0.08*
|
| To 999 |
$0.07*
|
| From 1000 |
$0.06*
|
- ANSI: ANSI B1.1
- Class: 2A
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Countersink: 82 Degree
- Diameter: #10
- Drive Style: Phillips
- Elongation: 30%
- Head Type: Oval Head
- Thread Direction: Right Hand
- Thread Type: Fine
- Fit: 2A
- Grade: 18-8
- Head Height Max: 0.176
- Head Diameter: Max 0.385 - Min 0.340
- Head Style: Oval
- Length: 7/16"
- Material: Stainless Steel
- Overall Head Height: Max 0.176 - Min 0.148
- Part Number: 717029147660
- Phillips Drive: #2
- Product Type: Machine Screws
- Size Type: Regular
- Standards Met: ANSI B18.6.3
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 32 Per Inch
- Thread Size: #10-32
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- Countersunk head with a raised domed top
- A machine screw is commonly identified by its small size
- Used either with a nut or in a pre-tapped hole
- Raised decorative head
- Used to secure materials that may be tampered with
- Ideal for freshwater moisture environments
- Rust and corrosion resistant
#10-32 Phillips drive oval head machine screws are available in grade 18-8 stainless steel.
Product number:
10200022
