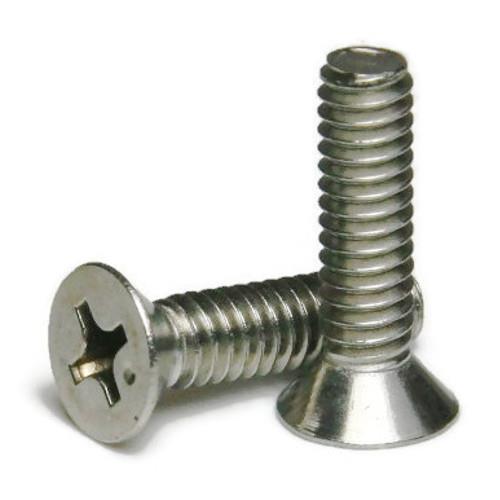

Machine Screws, Phillips Flat Head, Stainless Steel 316, 1/4"-20 x 5/8"

Diameter - Thread Pitch: 1/4"-20

Fully threaded
82-degree taper
A machine screw is commonly identified by its small size
Screw head lays flush with the installation surface
Superior corrosion resistance when compared to standard grade (18-8 / 304) stainless steel
Suitable for harsh environmental conditions such as:
- Boats
- Marinas
- Docks

1/4"-20 Stainless steel Phillips flat head machine screws are available in 316 stainless steel.

See More See Less

Product number: 2200-012-004

Print this page

Specifications

ANSI: ANSI B18.6.3
Class: 2A
Color: Silver
Corrosion Resistant: Yes
Countersink: 82 Degree
Diameter: 1/4"
Drive Style: Phillips
Head Type: Flat Head
Thread Direction: Right Hand
Thread Type: Coarse
Fit: 2A
Grade: 316
Head Height Max: 0.153
Head Diameter: Max 0.507 - Min 0.452
Head Style: Flat
Length: 5/8"
Marine Grade: Yes
Material: Stainless Steel
Overall Head Height: Max 0.153 - Min 0.131
Part Number: 2210000 720572114164
Phillips Drive: #3
Product Type: Machine Screws
Standards Met: ANSI B18.6.3
System of Measurement: Inch
Thread Direction: Right Hand
Thread Pitch: 20 Per Inch
Thread Size: 1/4"-20
Thread Standard: UNC
Thread Type: Coarse
Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances

Flat Washers, Stainless Steel 316, 1/4" (0.281 ID x 5/8 OD x .050 THK)

SKU: 12280063

Volume Pricing*

$0.08

($0.08/ea)

100

$6.00

($0.06/ea)

1000

$50.00

($0.05/ea)

$0.00

Hex Finish Nuts, Stainless Steel 316, 1/4"-20 (7/16" Flats x 7/32" Thick)

SKU: 10900002

Volume Pricing*

$0.10

($0.10/ea)

100

$8.00

($0.08/ea)

1000

$70.00

($0.07/ea)

$0.00

Nylon Lock Nuts, Stainless Steel 316, 1/4"-20 (439" Flats x .328" Thick)

SKU: 1061-100000-0102

Volume Pricing*

$0.21

($0.21/ea)

100

$18.00

($0.18/ea)

1000

$160.00

($0.16/ea)

$0.00

Phillips Power Bits, #3, Length 2"

SKU: 1050-500-0021

Volume Pricing*

$1.04

($1.04/ea)

$8.10

($0.81/ea)

$38.00

($0.76/ea)

$0.00

MRO Solution 2400, Marine Grade Anti-Seize Lubricant, 8 oz.

SKU: 1050-106

Volume Pricing*

$20.03 ea.

$0.00

Select Size/SKU & Quantity

13 Available Sizes

SIZE/SKU	Review Volume Pricing*	Enter Any Qty
1/4"-20 x 1/2" 2200-012-002	1 $0.32 ($0.32/ea) 100 $21.00 ($0.21/ea) 1000 $190.00 ($0.19/ea)	Quantity for Machine Screws, Phillips Flat Head, Stainless Steel 316, 1/4"-20 x 1/2" $0.00
1/4"-20 x 5/8" 2200-012-004	1 $0.26 ($0.26/ea) 100 $17.00 ($0.17/ea) 1000 $150.00 ($0.15/ea)	Quantity for Machine Screws, Phillips Flat Head, Stainless Steel 316, 1/4"-20 x 5/8" $0.00
1/4"-20 x 3/4" 2200-012-006	1 $0.28 ($0.28/ea) 100 $19.00 ($0.19/ea) 1000 $170.00 ($0.17/ea)	Quantity for Machine Screws, Phillips Flat Head, Stainless Steel 316, 1/4"-20 x 3/4" $0.00
1/4"-20 x 7/8" MSPFHSS316142078	1 $0.35 ($0.35/ea) 100 $32.00 ($0.32/ea) 1000 $290.00 ($0.29/ea)	Quantity for Machine Screws, Phillips Flat Head, Stainless Steel 316, 1/4"-20 x 7/8" $0.00
1/4"-20 x 1" 2200-012-008	1 $0.37 ($0.37/ea) 100 $24.00 ($0.24/ea) 1000 $210.00 ($0.21/ea)	Quantity for Machine Screws, Phillips Flat Head, Stainless Steel 316, 1/4"-20 x 1" $0.00
1/4"-20 x 1-1/4" 2200-012-010	1 $0.39 ($0.39/ea) 100 $26.00 ($0.26/ea) 1000 $230.00 ($0.23/ea)	Quantity for Machine Screws, Phillips Flat Head, Stainless Steel 316, 1/4"-20 x 1-1/4" $0.00
1/4"-20 x 1-1/2" 2200-012-012	1 $0.44 ($0.44/ea) 100 $30.00 ($0.30/ea) 1000 $260.00 ($0.26/ea)	Quantity for Machine Screws, Phillips Flat Head, Stainless Steel 316, 1/4"-20 x 1-1/2" $0.00
1/4"-20 x 1-3/4" 2200-012-014	1 $0.51 ($0.51/ea) 100 $34.00 ($0.34/ea) 1000 $300.00 ($0.30/ea)	Quantity for Machine Screws, Phillips Flat Head, Stainless Steel 316, 1/4"-20 x 1-3/4" $0.00
1/4"-20 x 2" 2200-012-016	1 $0.60 ($0.60/ea) 100 $40.00 ($0.40/ea) 1000 $360.00 ($0.36/ea)	Quantity for Machine Screws, Phillips Flat Head, Stainless Steel 316, 1/4"-20 x 2" $0.00
1/4"-20 x 2-1/2" 2200-012-018	1 $0.83 ($0.83/ea) 100 $55.00 ($0.55/ea) 1000 $490.00 ($0.49/ea)	Quantity for Machine Screws, Phillips Flat Head, Stainless Steel 316, 1/4"-20 x 2-1/2" $0.00
1/4"-20 x 3" 2200-012-020	1 $0.86 ($0.86/ea) 100 $58.00 ($0.58/ea) 1000 $510.00 ($0.51/ea)	Quantity for Machine Screws, Phillips Flat Head, Stainless Steel 316, 1/4"-20 x 3" $0.00
1/4"-20 x 3-1/2" 2200-012-022	1 $1.11 ($1.11/ea) 100 $102.00 ($1.02/ea) 1000 $1,000.00 ($1.00/ea)	Quantity for Machine Screws, Phillips Flat Head, Stainless Steel 316, 1/4"-20 x 3-1/2" $0.00
1/4"-20 x 4" 2200-012-024	1 $1.24 ($1.24/ea) 100 $116.00 ($1.16/ea) 1000 $1,140.00 ($1.14/ea)	Quantity for Machine Screws, Phillips Flat Head, Stainless Steel 316, 1/4"-20 x 4" $0.00

*Volume pricing available on select products. Products without quantity breaks are priced per unit.
