#12 Phillips Pancake Head Self Drilling Sheet Metal Screws 410 Stainless Steel
Phillips Pancake Head Self Drilling Screws 410 Stainless Steel #12



Alternative Views:

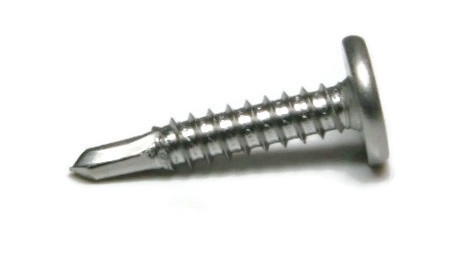

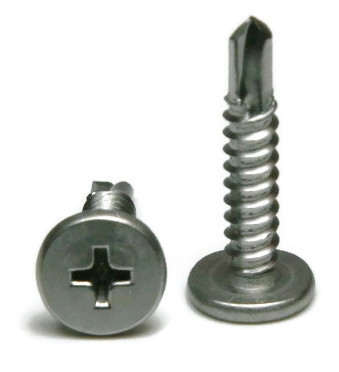

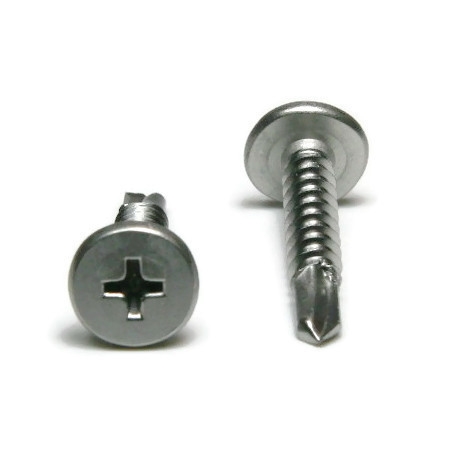

Stainless Steel Phillips Pancake Head Self Drilling Screws

Diameter - Thread Pitch: #12-14

Phillips Pancake Head Self Drilling screws are made of hardened 410 Stainless Steel and have a sheet metal thread with a self driller cutting (TEK) point to pierce through 20 to 14 gauge metals. The higher the TEK number the larger the drill point to pierce heavier gauge metals. The heads use a Phillips driver #1, #2 or #3 depending on the size of the screw.

Stainless Steel Phillips Pancake Head TEK Screws have a self drilling point to aid in the installation of these screws into harder materials. Additionally, these screws are made of hardened 410 Stainless Steel which is harder than the material that is being fastened, easing the installation process, and allowing installation into sheet metal or metal studs.

Product Specifications:
Phillips Pan Head Self Drilling Screws
Body Diameter: (#12) Max 0.221" - Min 0.215"
Thread Pitch: 14 Per Inch (Coarse)
Point Type: TEK-3 (0.353)
Thread Direction: Right Hand
Material: 410 Stainless Steel
Driver Max RPM: 2,300
ANSI B18.6.4
Tensile: 180,000 PSI Heat Treated
Hardness: 40 Rockwell C
Diameter - Thread Pitch x Length from Underside of Head
Product Specifications may vary slightly +/- depending upon production run
within IFI Tolerances


Item# Item Name Our Price Qty Add
12732002-0002 Phillips Pancake Head Self Drilling Screw 410 Stainless Steel #12 x 1" - Qty-1
$0.27
12732002-0004 Phillips Pancake Head Self Drilling Screw 410 Stainless Steel #12 x 1" - Qty-25
$6.20
12732002-0006 Phillips Pancake Head Self Drilling Screw 410 Stainless Steel #12 x 1" - Qty-100
$22.52
12732002-0008 Phillips Pancake Head Self Drilling Screw 410 Stainless Steel #12 x 1" - Qty-250
$53.49
12732002-0010 Phillips Pancake Head Self Drilling Screw 410 Stainless Steel #12 x 1" - Qty-1000
$202.70
12732002-0012 Phillips Pancake Head Self Drilling Screw 410 Stainless Steel #12 x 1-1/2" - Qty-1
$0.32
12732002-0014 Phillips Pancake Head Self Drilling Screw 410 Stainless Steel #12 x 1-1/2" - Qty-25
$7.22
12732002-0016 Phillips Pancake Head Self Drilling Screw 410 Stainless Steel #12 x 1-1/2" - Qty-100
$26.28
12732002-0018 Phillips Pancake Head Self Drilling Screw 410 Stainless Steel #12 x 1-1/2" - Qty-250
$62.40
12732002-0020 Phillips Pancake Head Self Drilling Screw 410 Stainless Steel #12 x 1-1/2" - Qty-1000
$236.49
12732002-0022 Phillips Pancake Head Self Drilling Screw 410 Stainless Steel #12 x 2" - Qty-1
$0.34
12732002-0024 Phillips Pancake Head Self Drilling Screw 410 Stainless Steel #12 x 2" - Qty-25
$7.62
12732002-0026 Phillips Pancake Head Self Drilling Screw 410 Stainless Steel #12 x 2" - Qty-100
$27.72
12732002-0028 Phillips Pancake Head Self Drilling Screw 410 Stainless Steel #12 x 2" - Qty-250
$65.84
12732002-0030 Phillips Pancake Head Self Drilling Screw 410 Stainless Steel #12 x 2" - Qty-1000
$249.48
