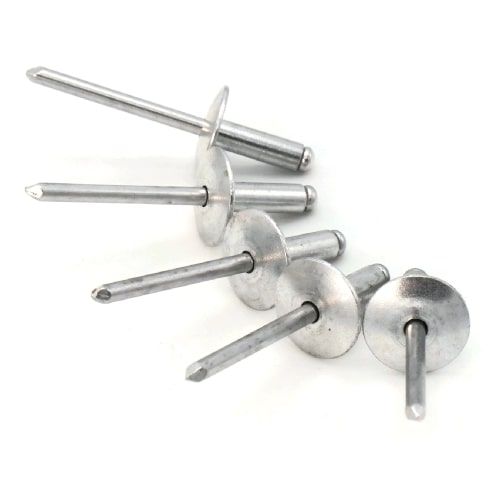

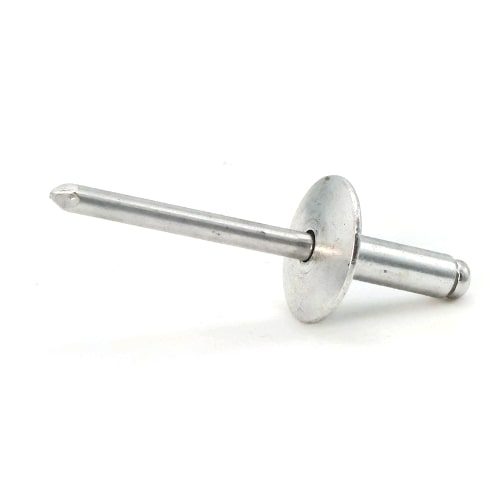

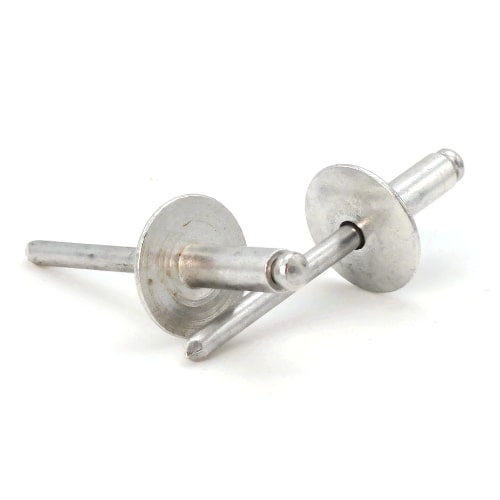

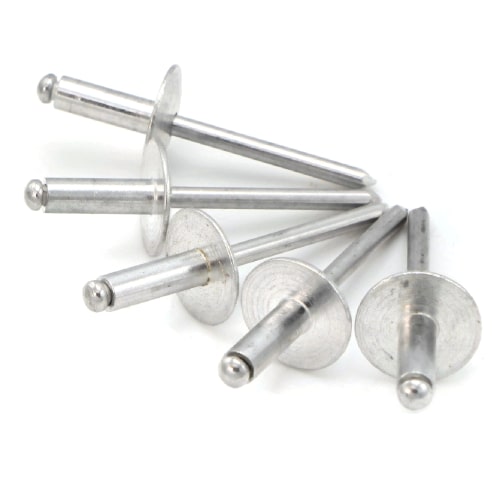

5/32" (#5 LF) POP Rivet Large Flange Aluminum

5/32" Aluminum Large Flange Open End Blind POP Rivets

POP Rivet, or Blind Rivet, in Aluminum

  • 5/32" or #5LF (Rivet Sizing Chart)
  • All Aluminum
  • Large flange rivets are used when there is no access to the blind side of the two materials
  • Larger washer distributes pressure over a greater surface area
  • Used to join two materials together quickly
  • After mandrel breaks off domed head is left exposed
  • Commonly used to prevent damage to soft materials and deter pull-through
  • Aluminum rivets should never be used with stainless steel: Corrosion may occur

Aluminum Open End Large Flange Blind Rivet Spec Sheet

Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
POP Rivet Large Flange Aluminum - 5-4LF 5/32" (.188 - .250 Grip)
SKU #1820-004-0002
POP Rivet Large Flange Aluminum - 5-4LF 5/32" (.188 - .250 Grip)
SKU #1820-004-0002
1
 NA
25
 $4.00 (0.16/ea)
100
 $10.00 (0.1/ea)
1000
 $80.00 (0.08/ea)
Subtotal: $0.00 /

Frequently Used With

Norseman Magnum Super Premium Jobber Length Drill Bits - #20
Norseman Magnum Super Premium Jobber Length Drill Bits - #20 1052-338-0116
Norseman Magnum Super Premium Jobber Length Drill Bits - #20
1
 $4.75 (4.75/ea)
5
 $18.90 (3.78/ea)
10
 $36.30 (3.63/ea)
Subtotal: $0.00 /
POP Rivet Hand-Operated Tool - 3/32" through 3/16" Rivet Size
POP Rivet Hand-Operated Tool - 3/32" through 3/16" Rivet Size 1050-082
POP Rivet Hand-Operated Tool - 3/32
POP Rivet Hand-Operated Riveter
Rivet Tool for Installing Blind Rivets - 3/16" Capacity

Our Price: $28.74
Subtotal: $0.00 /
POP Rivet Pneumatic Air Rivet Tool - 3/32" through 3/16" Rivet Size
POP Rivet Pneumatic Air Rivet Tool - 3/32" through 3/16" Rivet Size 1050-080
POP Rivet Pneumatic Air Rivet Tool - 3/32
POP Rivet Pneumatic Air Powered Riveter
Rivet Gun for Installing Blind Rivets - 3/16" Capacity

Our Price: $172.49
Subtotal: $0.00 /
Rivet Washers Aluminum - 5/32" (ID.165, OD.437, TK.062)
Rivet Washers Aluminum - 5/32" (ID.165, OD.437, TK.062) 1836-002-0012
Rivet Washers Aluminum - 5/32
1
 NA
25
 $3.25 (0.13/ea)
100
 $8.00 (0.08/ea)
1000
 $60.00 (0.06/ea)
Subtotal: $0.00 /
Product Specifications
Color
Silver
Drill (Hole) Size
#20
Flange Diameter Nominal
0.469
Head Height Max
0.075
Head Style
Dome
Mandrel Diameter Nominal
0.095
Material
Aluminum
Other
Open End, Large Flange
Pilot Hole
0.160 - 0.164
Product Type
Blind Rivets
Rivet Diameter
(#5) 5/32" (.1562)
System of Measurement (Unit)
Inch
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
